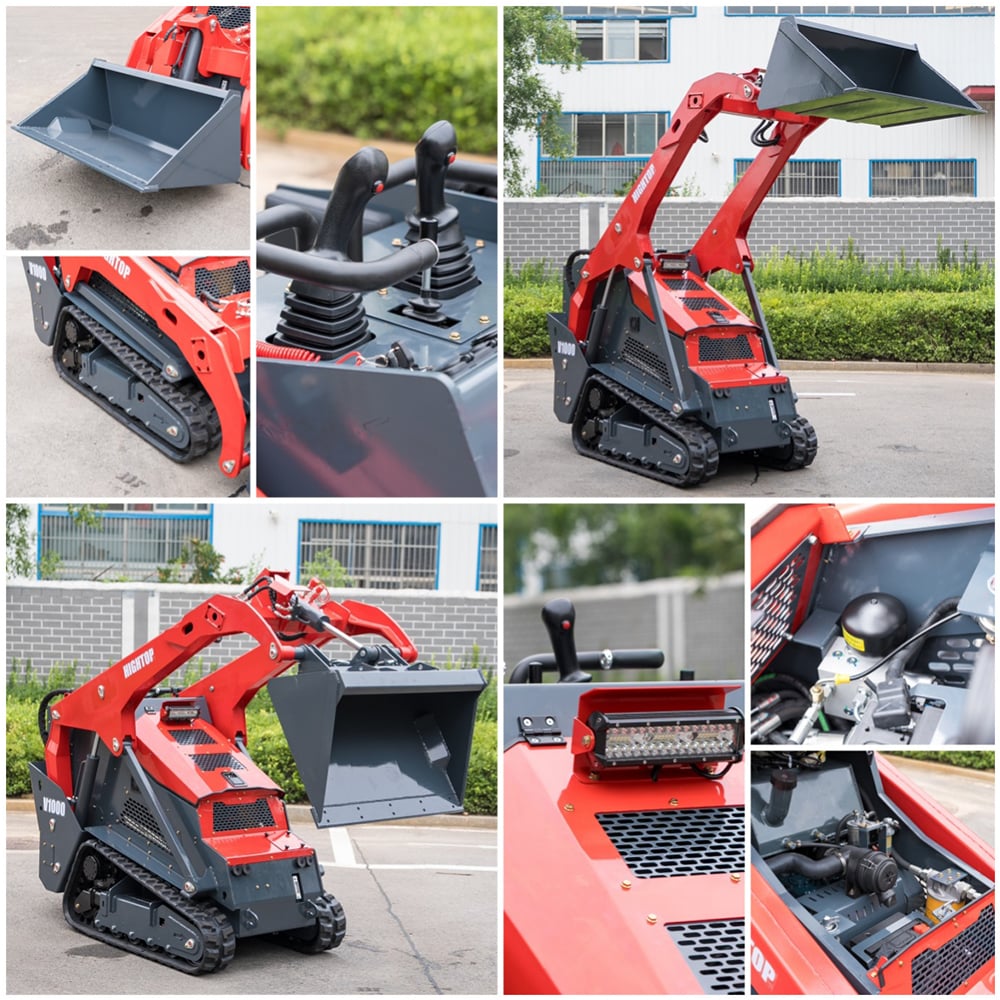

HTV1000 Fits Tight Work Areas Without Sacrificing Control

Access Can Be the First Limitation on a Small Jobsite

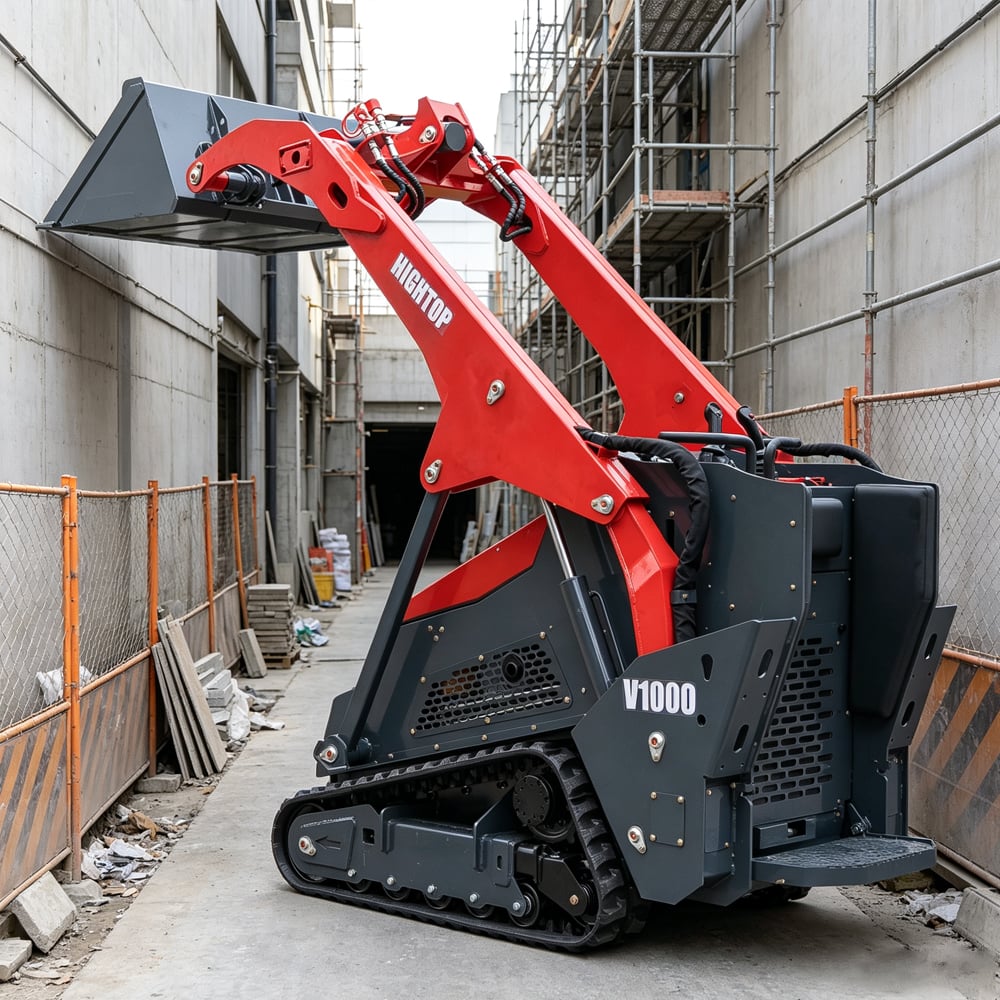

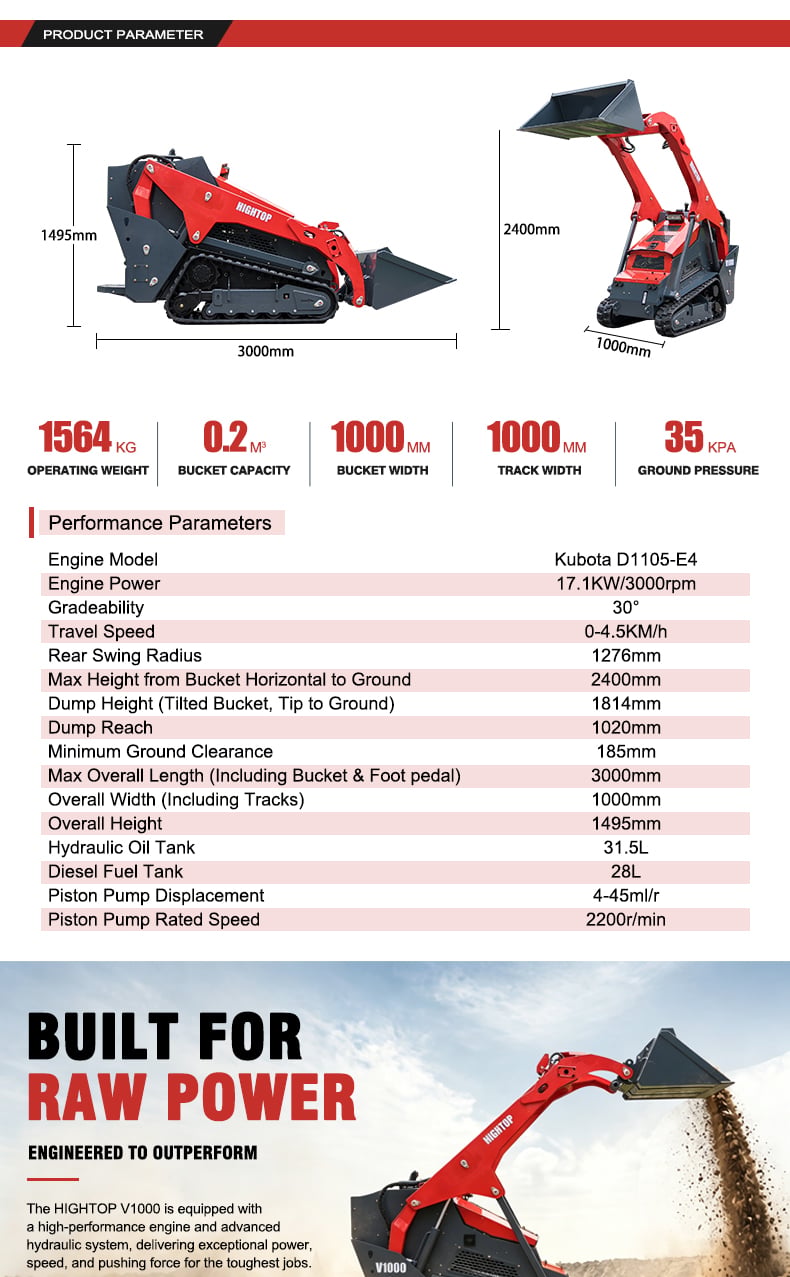

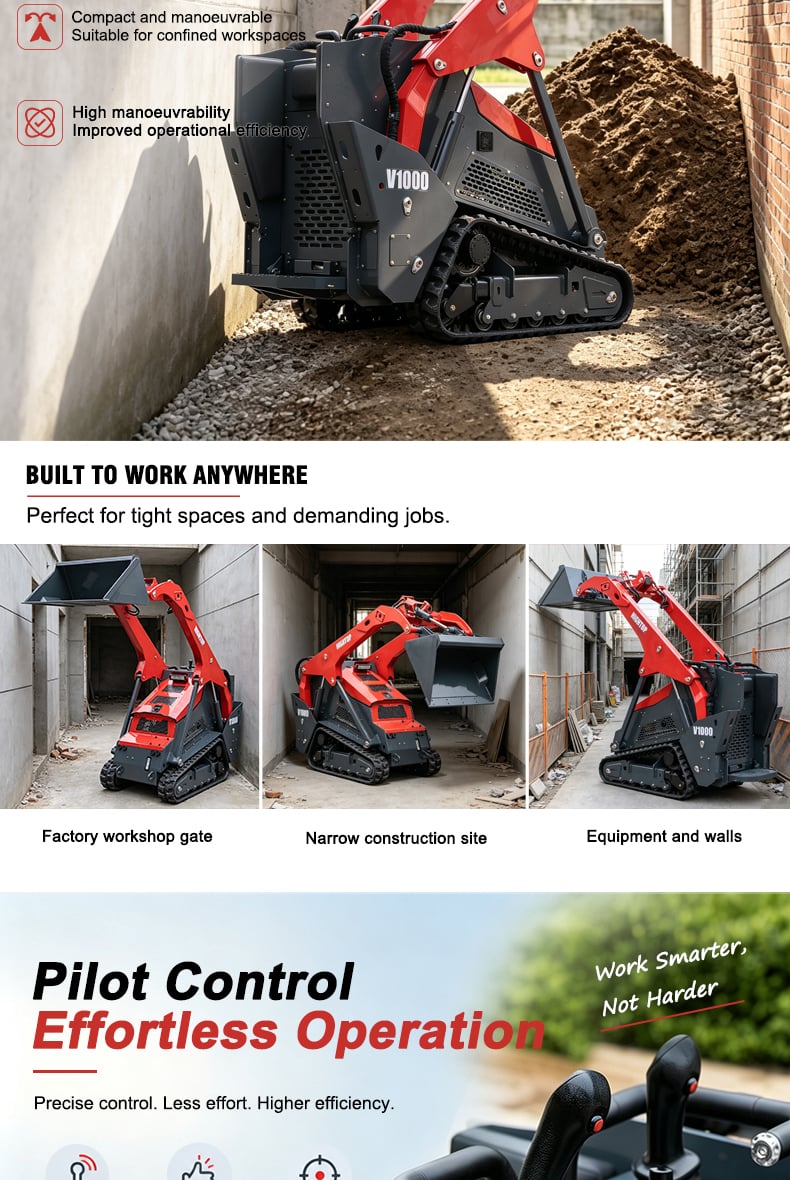

For contractors working around buildings, workshops, yards and restricted work areas, machine width can determine whether a loader can reach the job at all. The HTV1000 has an overall width of 1000 mm including the tracks and a body width of approximately 980 mm. Its 3000 mm overall length and 1495 mm height create a compact machine profile for skid steer loader for narrow access applications.

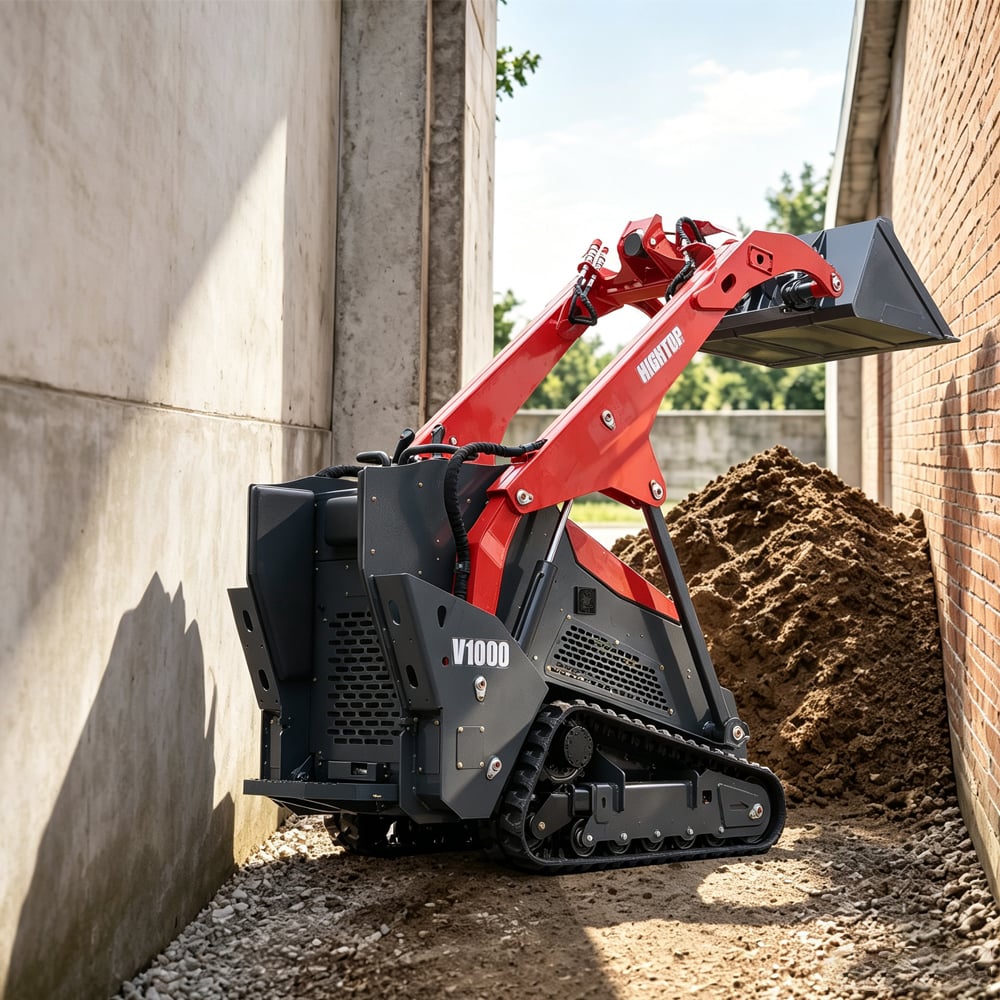

Control Matters When Working Close to Obstacles

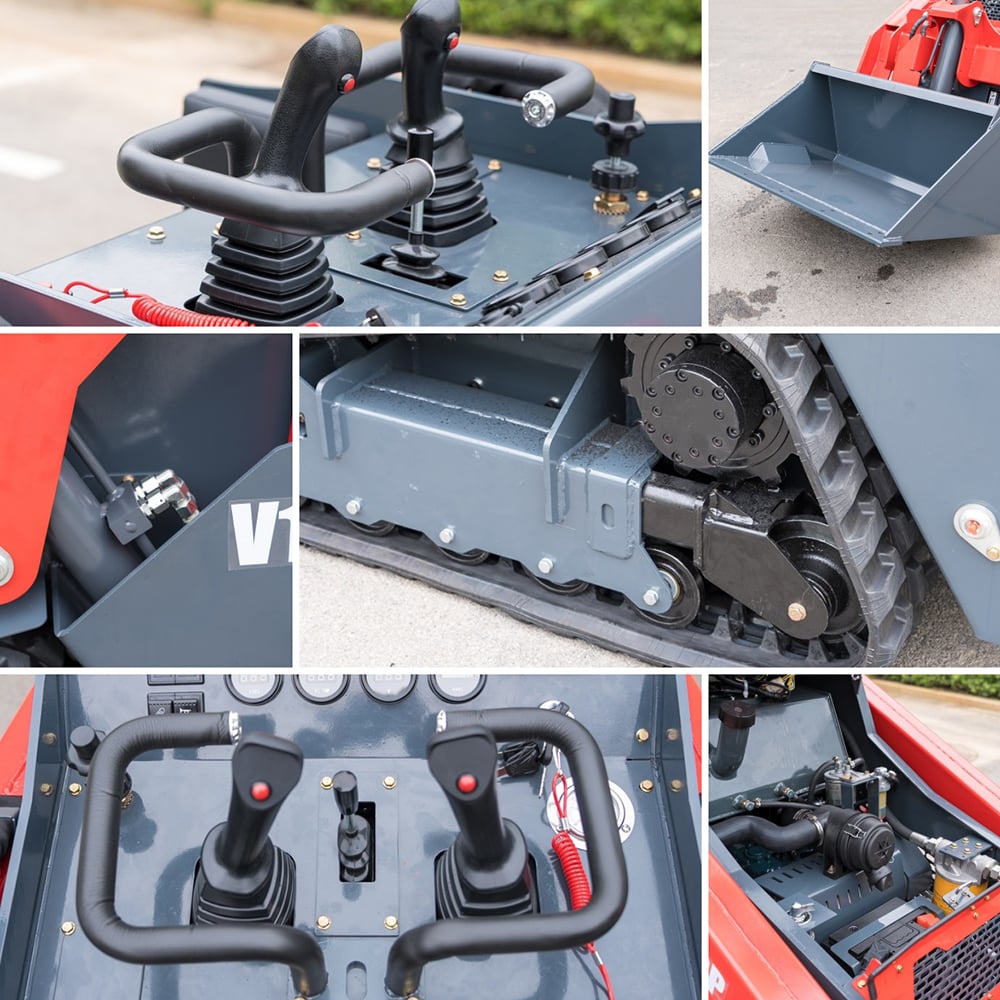

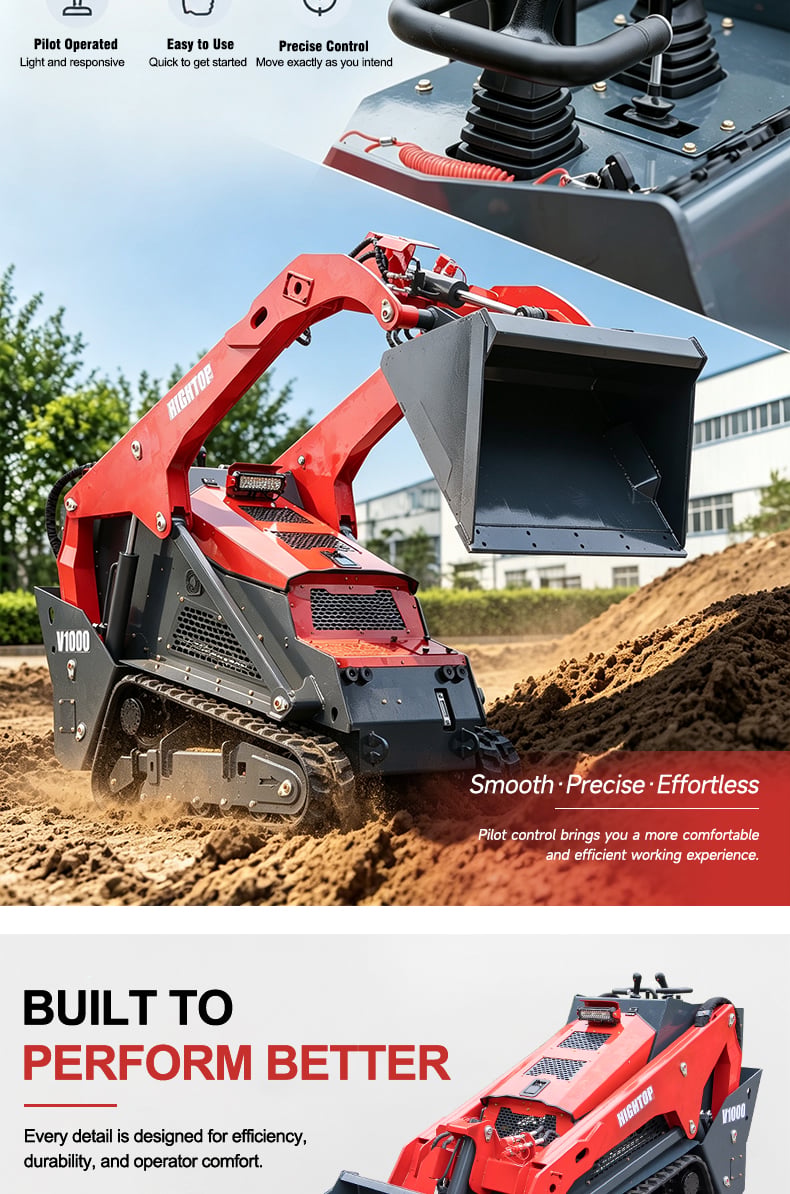

The HTV1000 uses a pilot-operated hydraulic control system. The hydraulic circuit uses a piston pump with 4–45 ml/r displacement and a rated speed of 2200 r/min. For operators moving material close to walls, structures or other obstacles, the control arrangement is an important procurement consideration rather than simply a power specification.

Kubota Diesel Power in a Compact Package

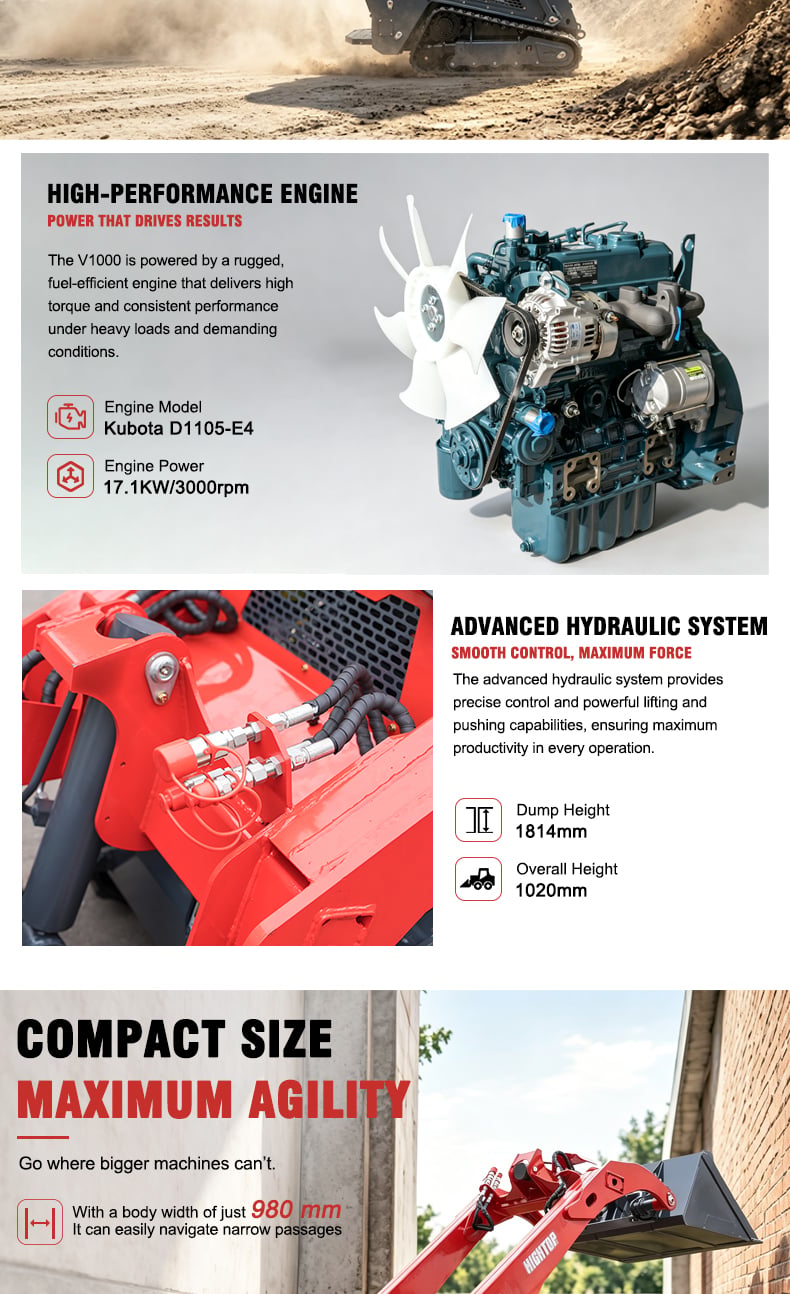

A Kubota D1105-E4 engine supplies 17.1 kW at 3000 rpm. The machine has a 0–4.5 km/h travel speed range and a stated gradeability of 30°. With 185 mm minimum ground clearance, the HTV1000 can be evaluated for contractors looking for a compact track loader for construction, yard work or confined material-handling tasks.

Check Reach and Service Access Before Buying

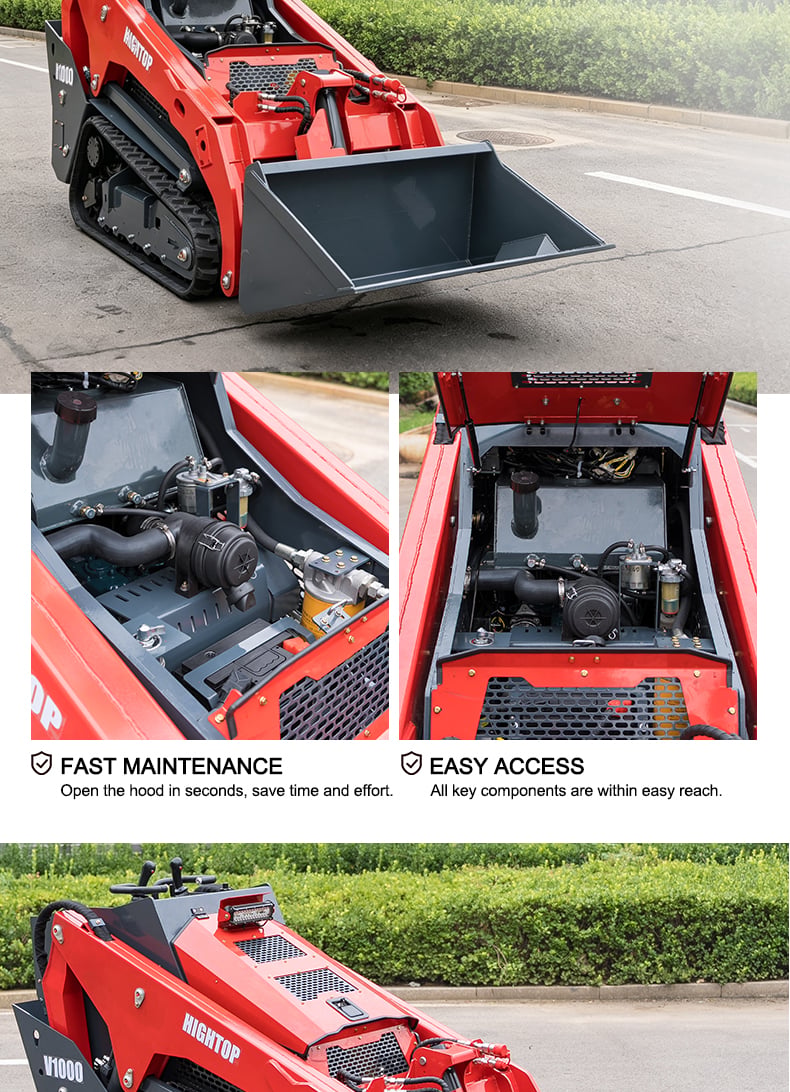

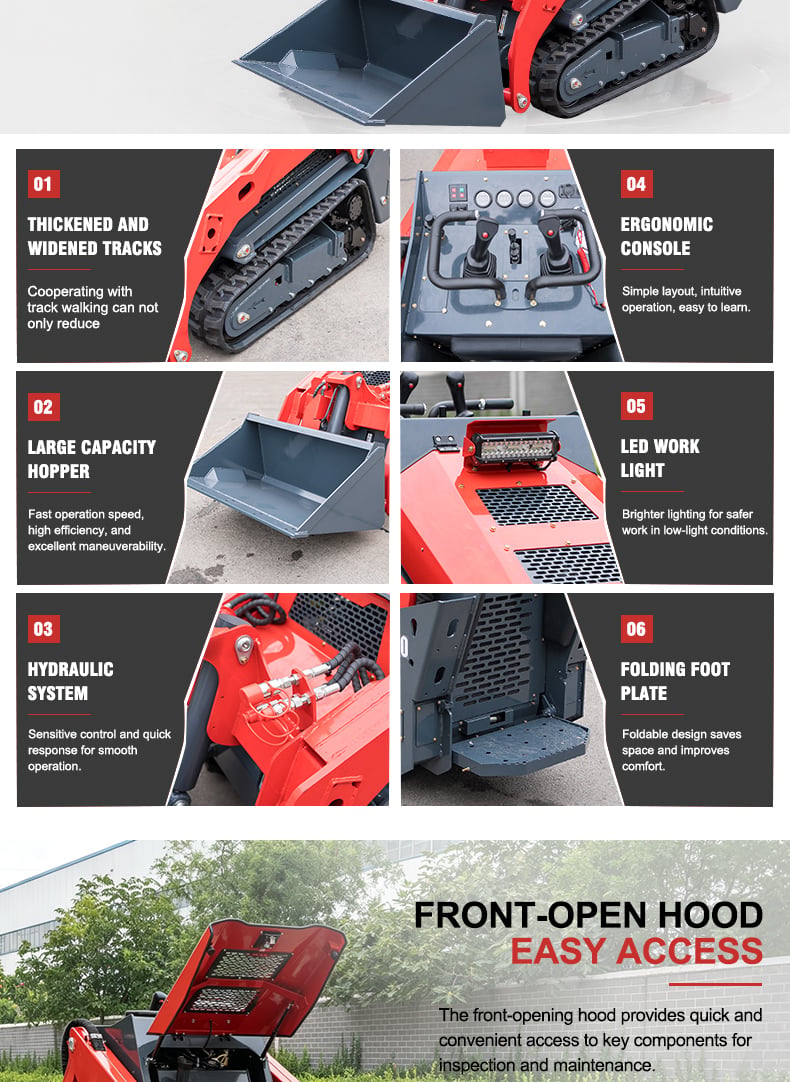

The loader provides a 1814 mm dump height and 1020 mm dump reach. A front-opening hood provides access to the engine, radiator, filters and hydraulic components for routine inspection and servicing. These details matter to rental companies and small contractors comparing equipment based on daily usability, maintenance access and jobsite flexibility.

Prepare the Export Configuration Around the Job

For an overseas purchase, buyers should confirm the intended application, attachment requirements, destination and quantity before requesting a quotation. Export buyers can also ask about available attachments, spare parts support and shipping assistance, while dealers can discuss supply requirements for their local market.
