Excavator Attachments for Digging, Grading and Site Work
Expand excavator capability with narrow and plain buckets, sieve buckets, rakes, grapples, rippers, augers, tilt buckets and other work attachments.
- Overview
- Specifications
- Features
- FAQ
- Related Products

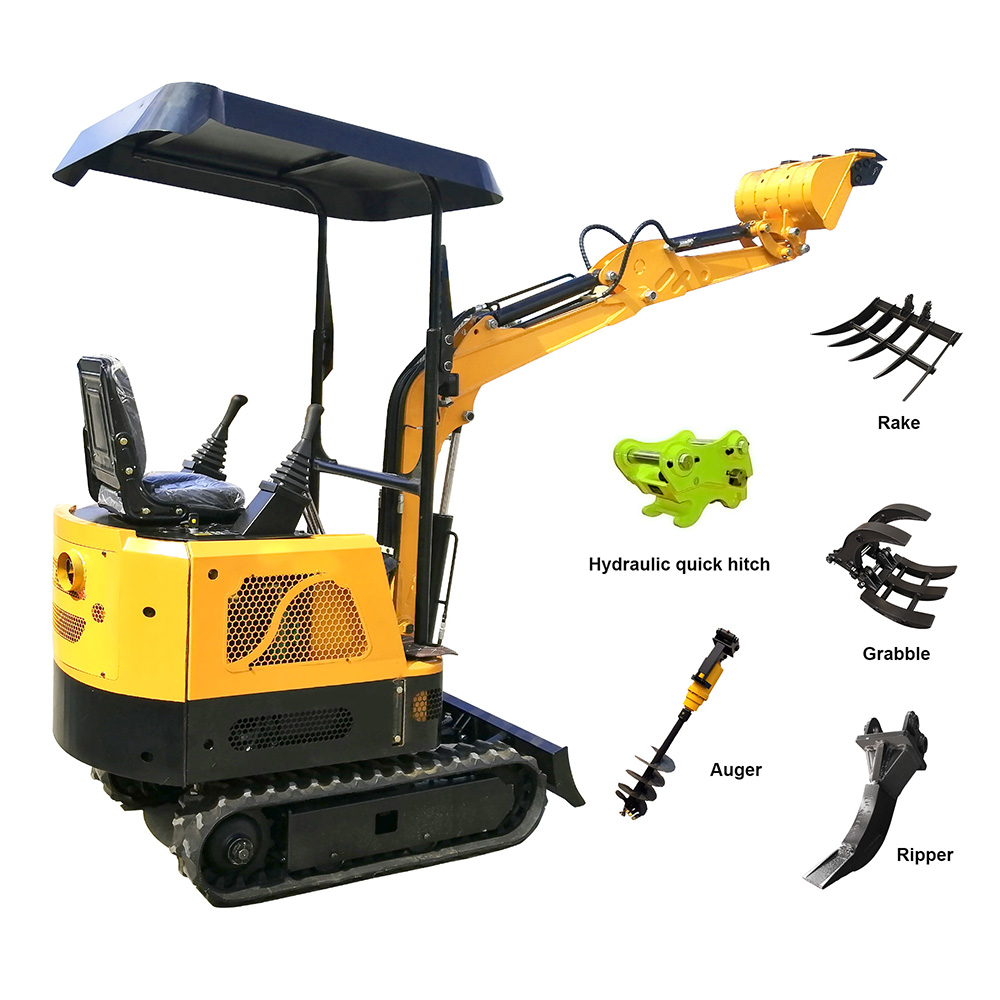

An excavator does not have to be limited to one bucket. The right attachment can change how the machine approaches a job, whether the work involves narrow trenching, ground leveling, material screening, site cleanup, drilling or breaking.
For narrow excavation, the narrow bucket with teeth is listed in 200mm and 260mm widths. Plain buckets provide wider working profiles in 500mm, 600mm, 800mm, 1000mm and 1200mm widths. When excavated material needs to be screened, the sieve bucket is available in 600mm and 800mm widths.
Rakes and grapples provide different ways to handle debris and materials. A ripper is useful when compacted ground needs to be loosened before normal bucket excavation. For drilling applications, the listed auger is 200mm wide and 700mm long, with an 800–900mm drilling depth.

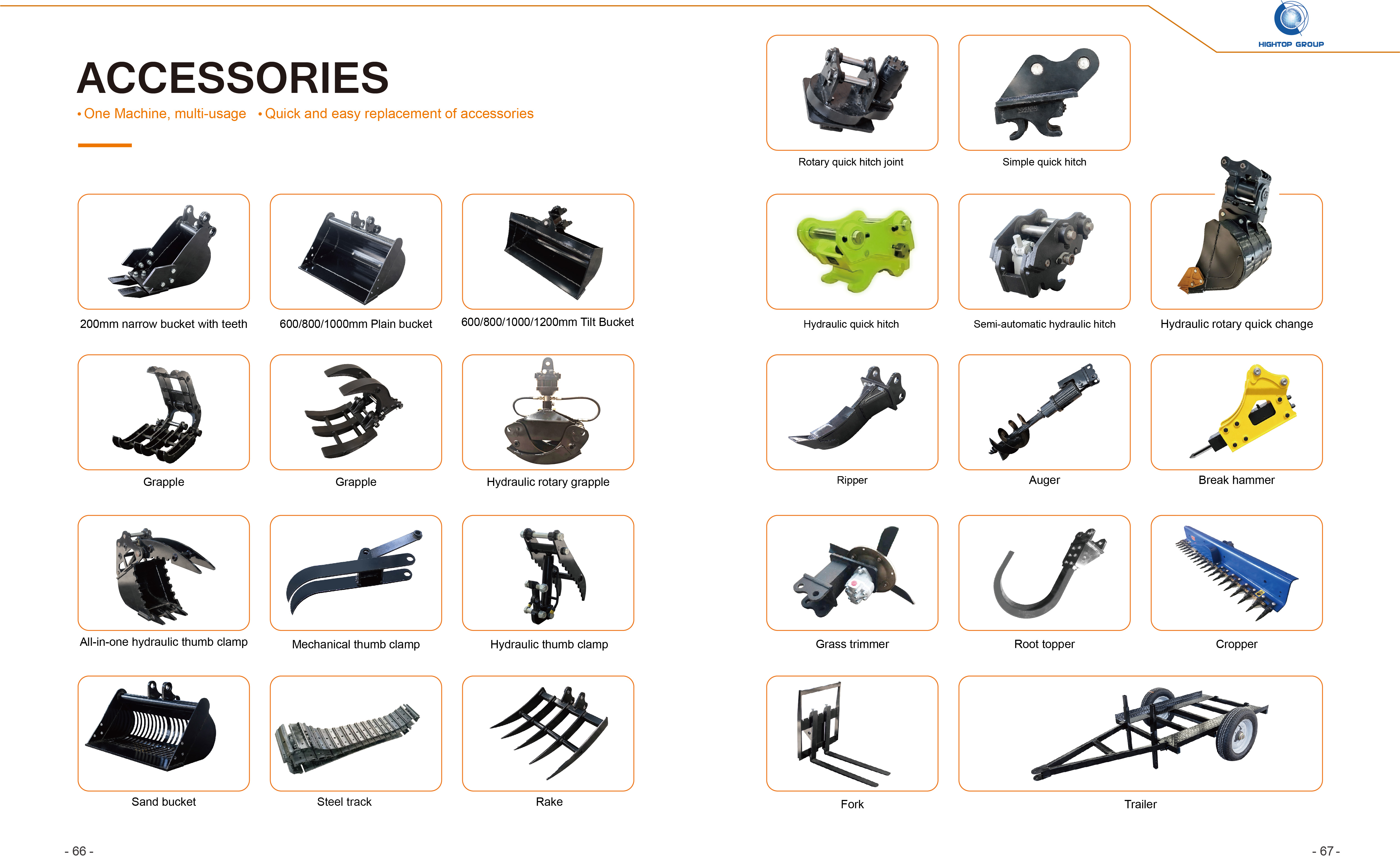

The attachment selection also includes a quick hitch, tilt bucket, thumb bucket, hydraulic breaker, steel grapple, trimming machine, pile driver and trailer. The listed tilt bucket is 600mm wide and provides a 30° tilt angle for angled excavation and grading work.
Before ordering, match the attachment to the excavator model, mounting connection and intended job. Send Hightop your machine model and attachment requirement to confirm compatibility and request a quotation.
| Attachment | Specification |
|---|---|
| Narrow Bucket With Teeth | 200mm width; 570 × 280 × 390mm package size; 16kg package weight |
| Narrow Bucket With Teeth | 260mm width; 20kg weight |
| Plain Bucket | 500mm width; 570 × 420 × 390mm package size; 19kg package weight |
| Plain Bucket | 600mm width; 700 × 420 × 390mm package size; 21kg package weight |
| Plain Bucket | 800mm width; 920 × 420 × 390mm package size; 22.5kg package weight |
| Plain Bucket | 1000mm width; 1100 × 420 × 390mm package size; 32kg package weight |
| Plain Bucket | 1200mm width; 1320 × 420 × 390mm package size; 36.7kg package weight |
| Sieve Bucket | 600mm width; 670 × 420 × 390mm package size; 17kg package weight |
| Sieve Bucket | 800mm width; 900 × 420 × 390mm package size; 20.5kg package weight |
| Rake | 490 × 530mm; 11.15kg |
| Grapple | 25.95kg |
| Ripper | 480 × 50 × 88mm |
| Auger | 200mm width × 700mm length; drilling depth 800–900mm |
| Tilt Bucket | 600mm width; 30° tilt angle |
Which excavator attachment is suitable for narrow trenching?
The narrow bucket with teeth is designed for narrower digging work. The listed widths are 200mm and 260mm.
What sizes are available for plain excavator buckets?
The listed widths are 500mm, 600mm, 800mm, 1000mm and 1200mm.
What does a sieve bucket do?
A sieve bucket is used to screen and separate excavated material. Available listed widths are 600mm and 800mm.
What attachment can help loosen compacted soil?
A ripper can be used to loosen hard or compacted ground before bucket excavation.
What is the drilling depth of the excavator auger?
The listed auger has a drilling depth of 800–900mm, with a width of 200mm and length of 700mm.
What can the tilt bucket be used for?
The tilt bucket is suitable for angled excavation and grading work. The listed bucket is 600mm wide with a 30° tilt angle.
How do I confirm attachment compatibility?
Provide the excavator model, attachment requirement, mounting connection and intended application. Compatibility should be confirmed before ordering.
