Product Description
Specification
Item
|
HT530 |
2900 mm*1300 mm *1900 mm |
||
With Rubber Track |
1 Year |
|||
Metric |
U.S. |
|||
Max working height (H3) |
2474 mm |
97.4 inch |
||
Max pin height (H2) |
1977 mm |
77.83 inch |
||
Max Dumping height (H1) |
1275 mm |
50.2 inch |
||
Max Dumping distance(E) |
175 mm |
6.89 inch |
||
Max Dumping Angle (a3) |
70° |
70° |
||
Rollback of bucket on ground (a2) |
25° |
25° |
||
Departure angle (a1) |
23° |
23° |
||
Total height (H) |
1300 mm |
51.18 inch |
||
Ground clearance (F) |
120 mm |
4.72inch |
||
Wheel base (L1) |
890 mm |
35.04 inch |
||
Overall length without bucket (L3) |
1767 mm |
69.57 inch |
||
Total width (B2) |
1030 mm |
40.55 inch |
||
Bucket width (B1) |
1070 mm |
42.13 inch |
||
Total length with bucket (L) |
2319 mm |
91.3 inch |
||

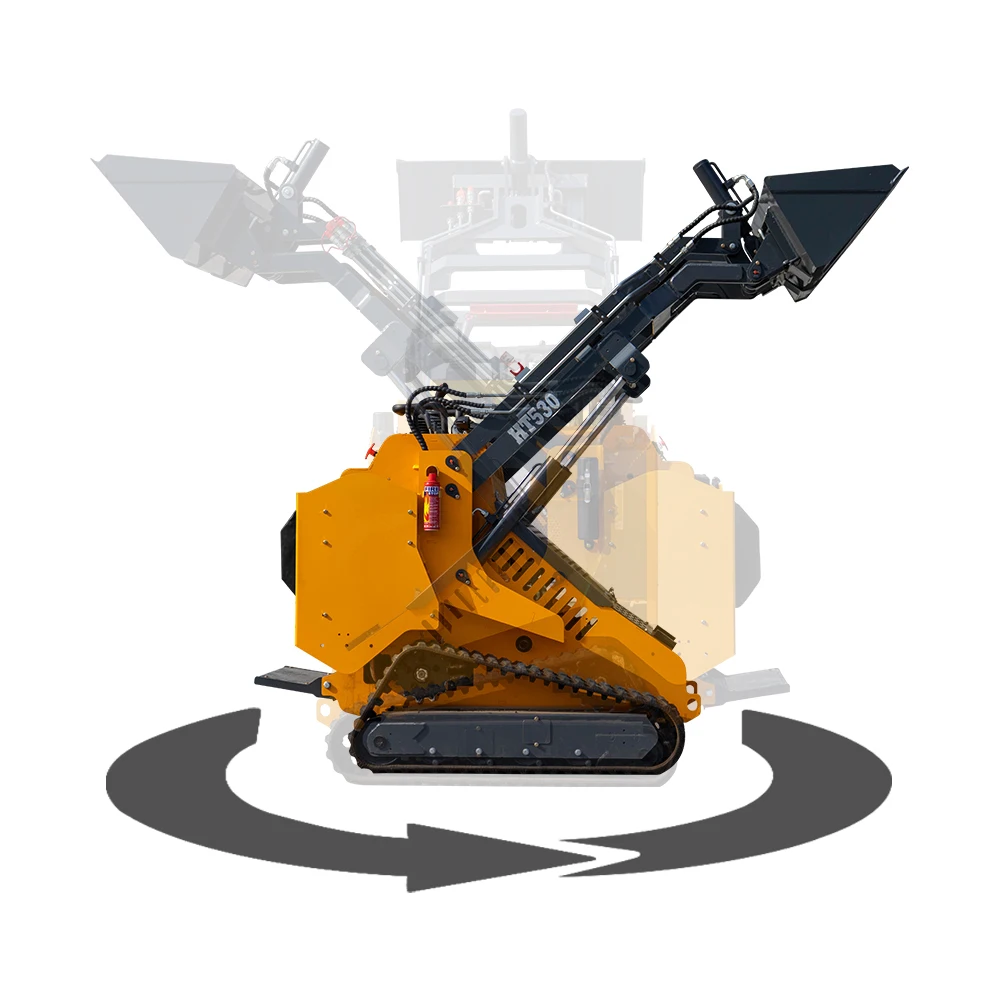

Turn radius forward turning (R) |
1440 mm |
56.69 inch |
||
overall length without the bucket after folding the pedal. (L2) |
1633 mm |
64.29 inch |
||

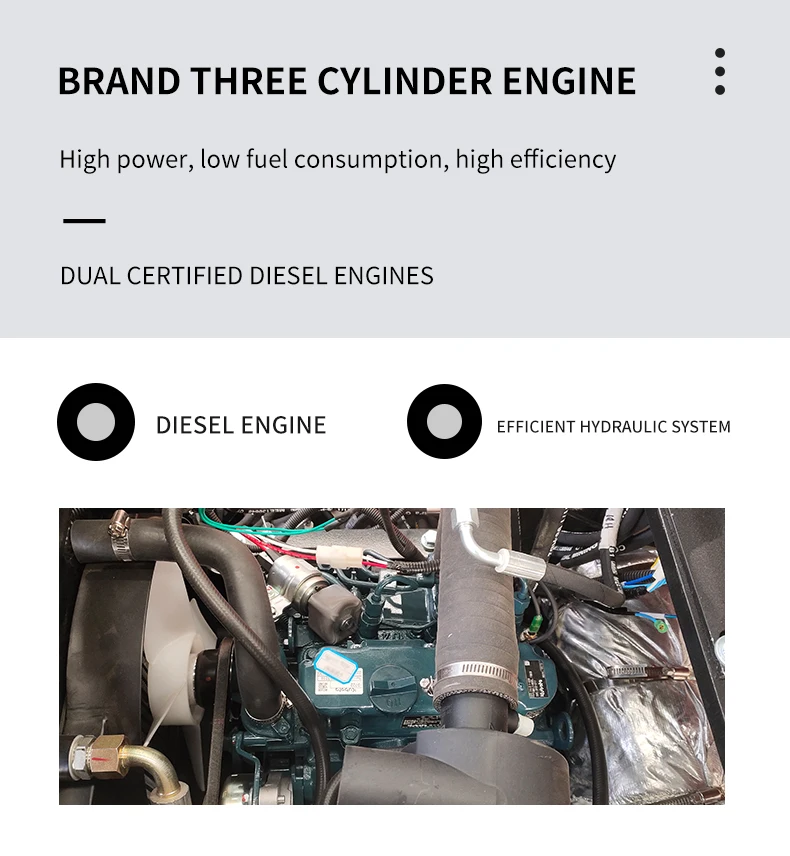

Engine |
||||
Rated Power (KW) |
18.2KW(23HP) |
|||
Rotating speed (rpm) |
3600 |
|||
Noise (Db) |
≤95 |
|||
Hydraulic System |
||||
Pressure (Mpa) |
17 |
|||
Working Time (s) |
||||
Raise |
4 |
|||
Dump |
1.3 |
|||
Lower |
3.2 |
|||
Operating Load |
390 Kg |
859.8 Lb |
||
Bucket Capacity |
0.13 m³ |
4.59 ft³ |
||
Max Lifting Force |
450 Kg |
992 Lb |
||
Travel Speed |
0-4.5Km/h |
2.8 mlie/h |
||
Operating Weight |
960 Kg |
2116 Lb |
||
Advantage

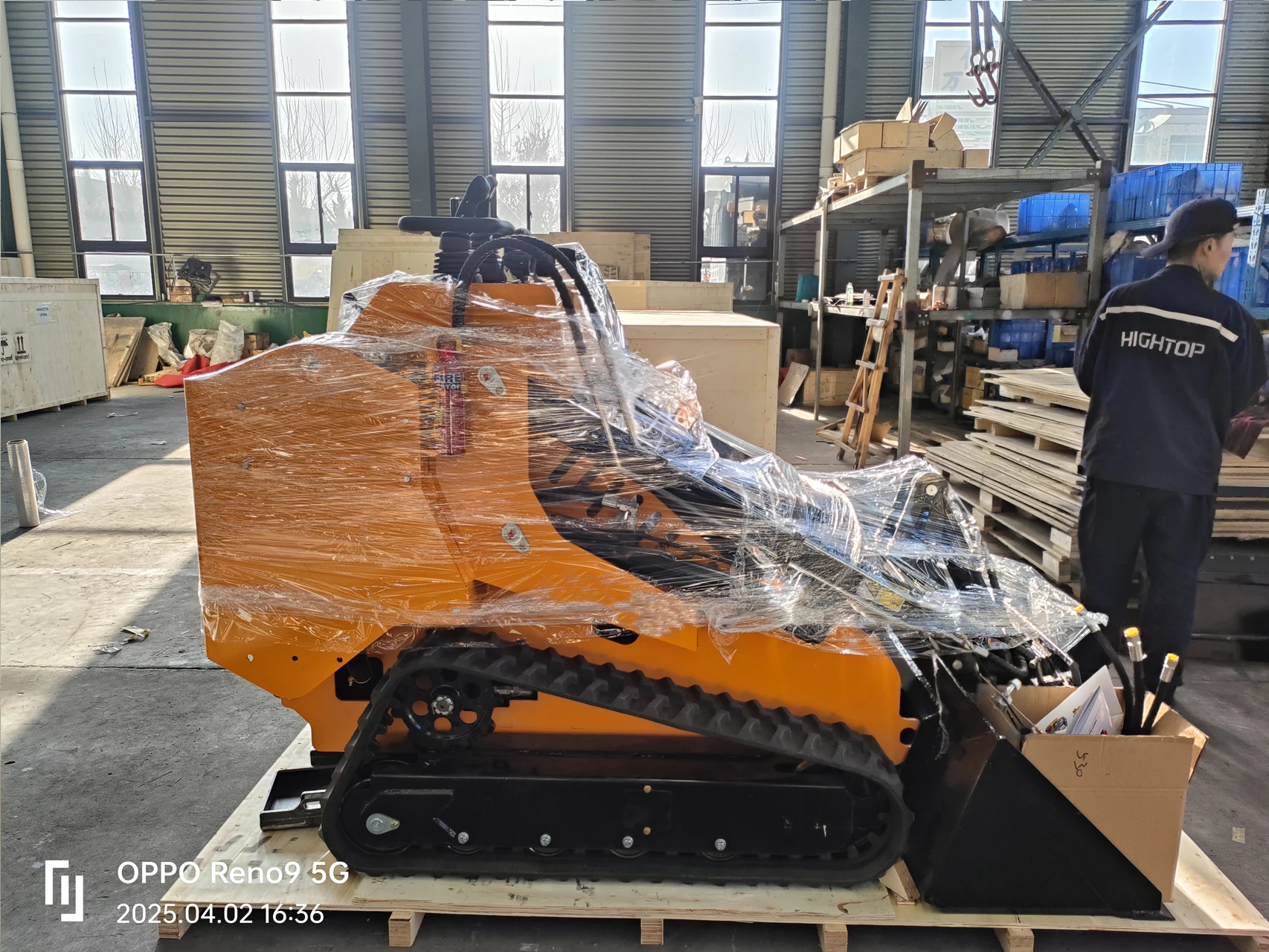

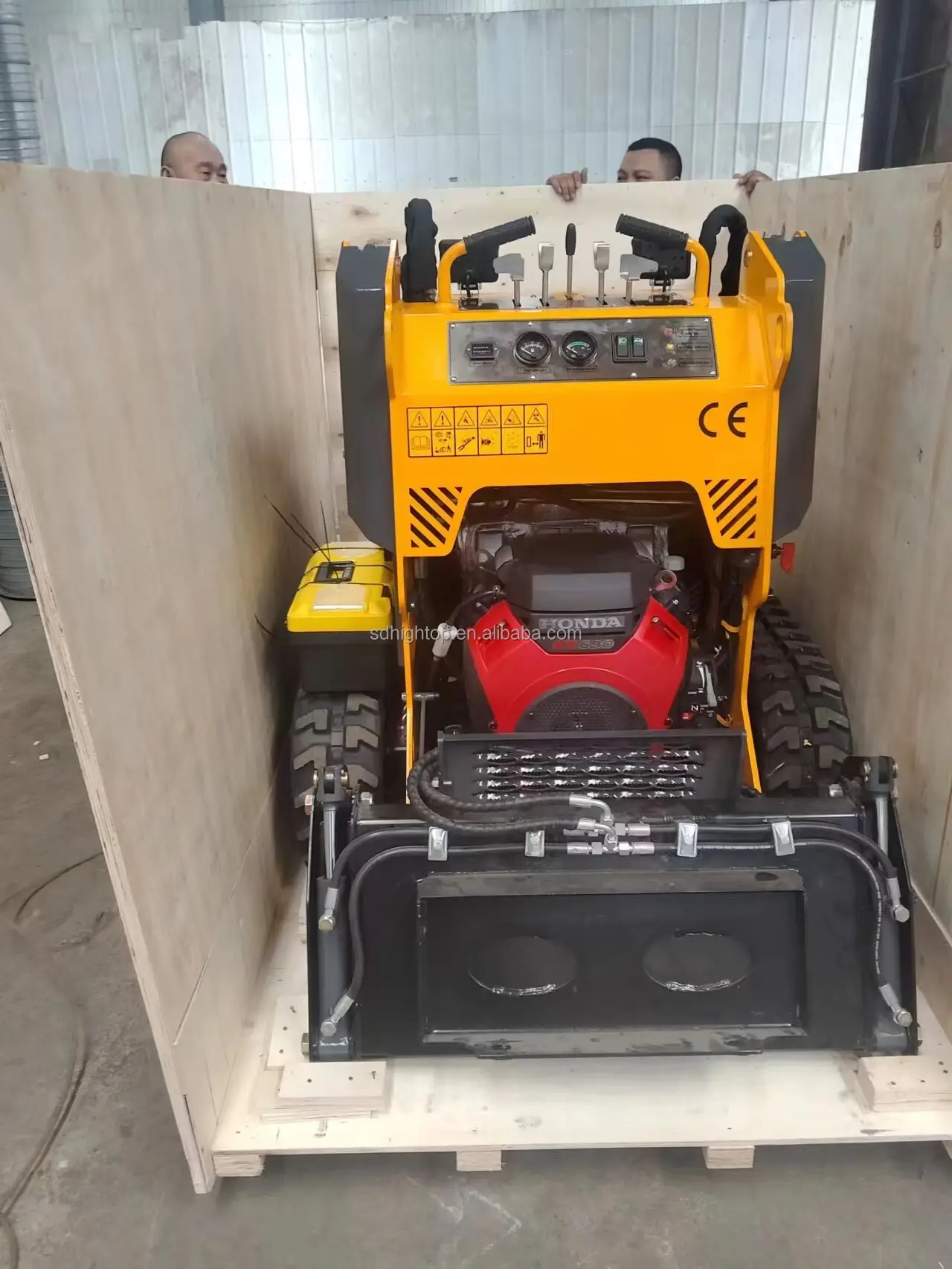

Packing & Delivery
standard export wooden package
