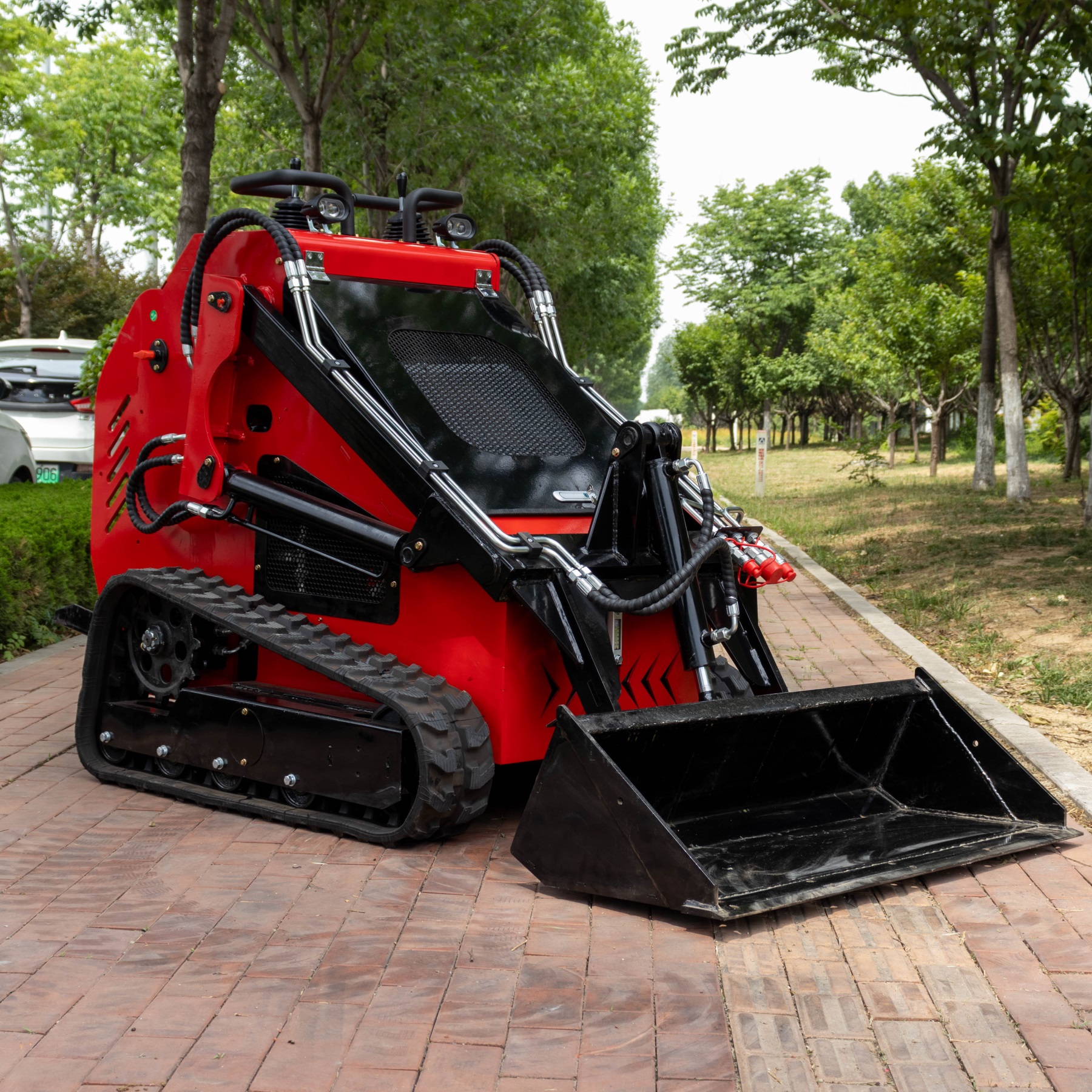

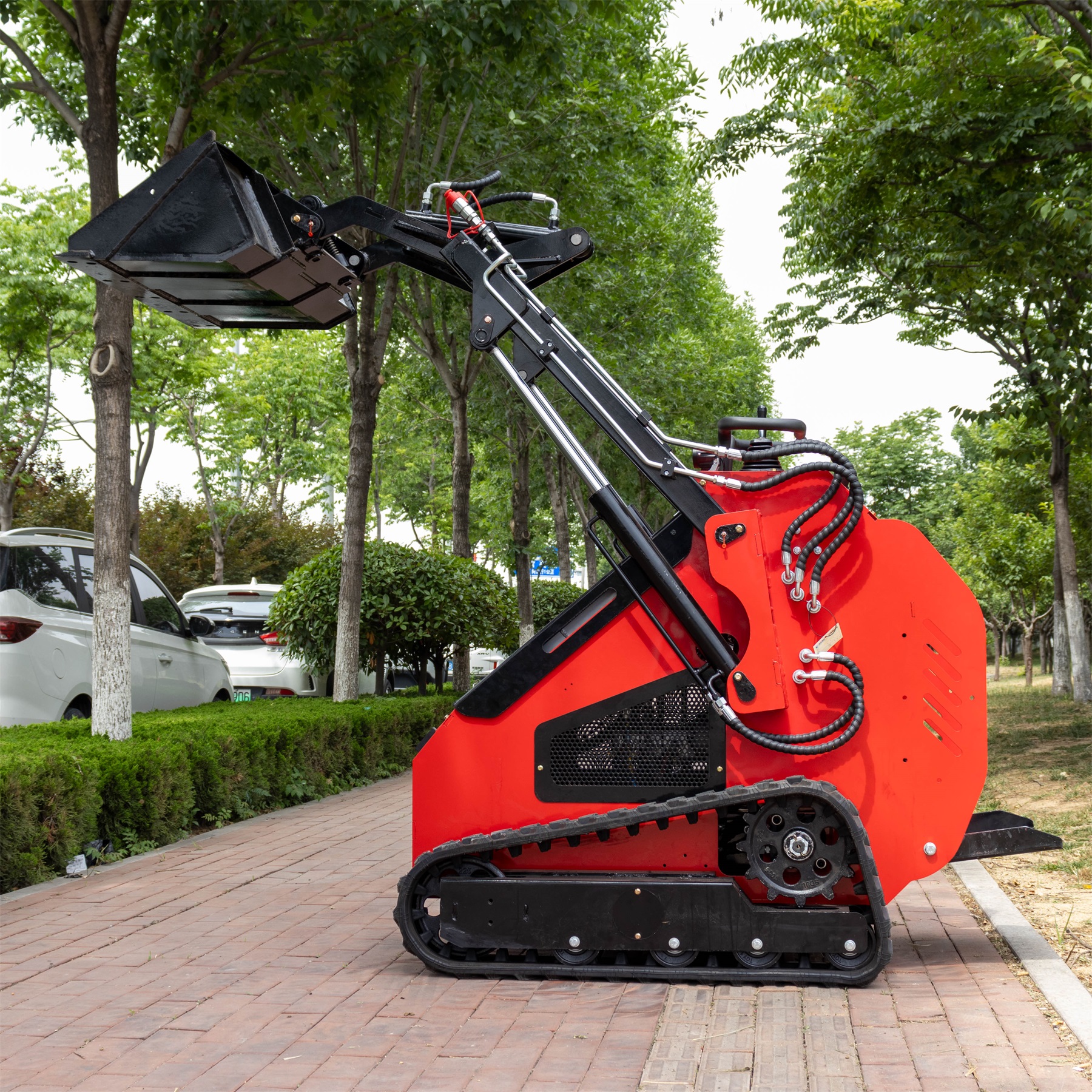

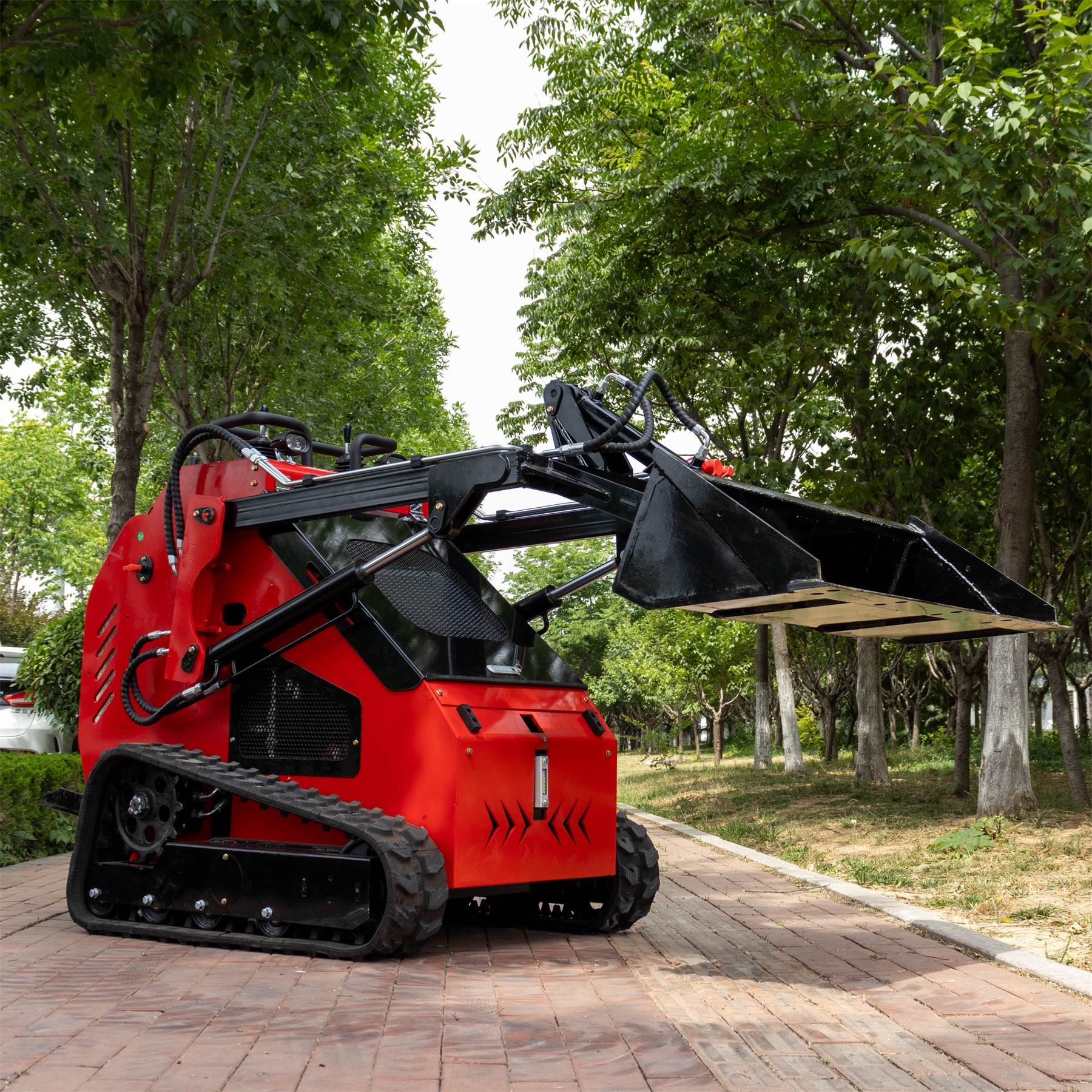

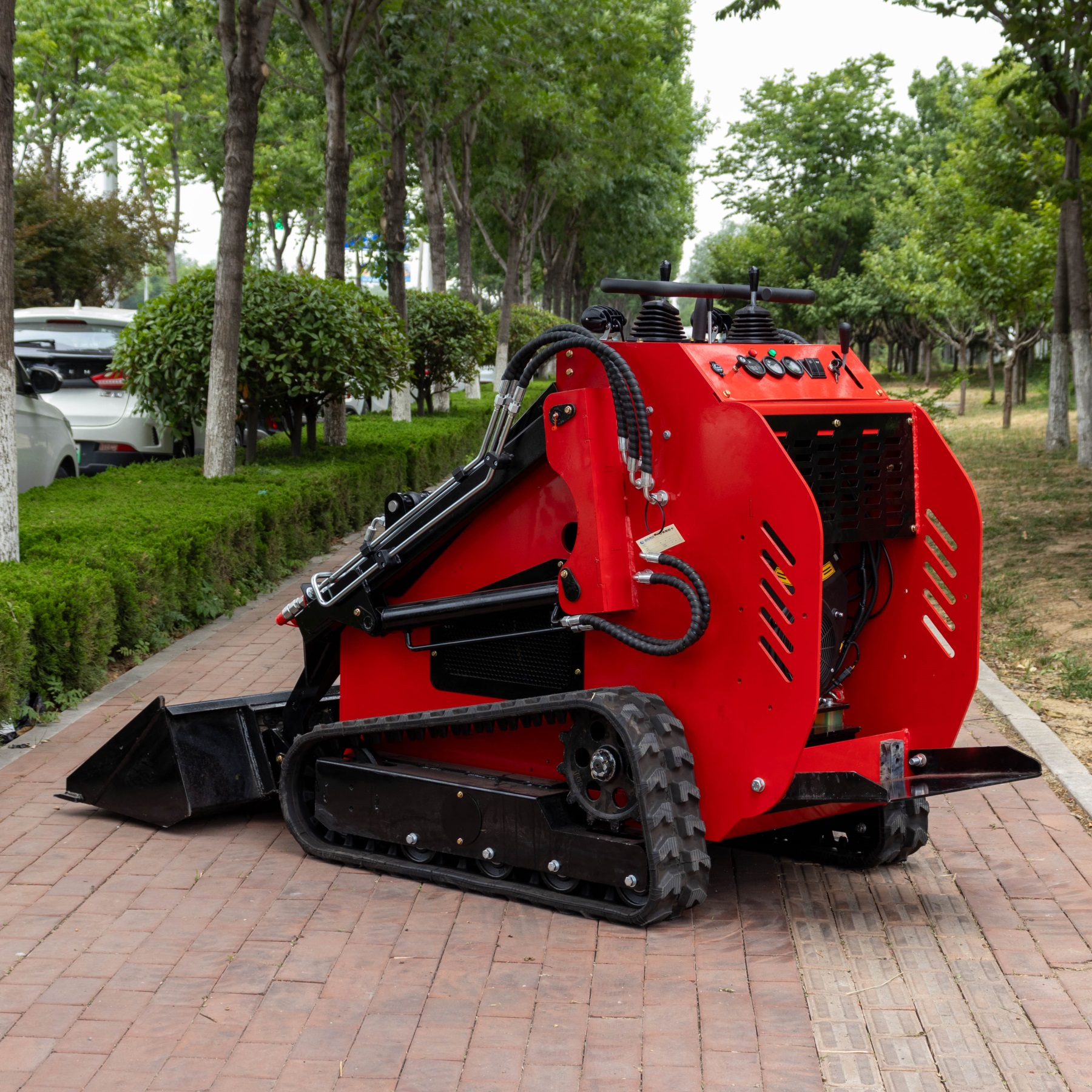

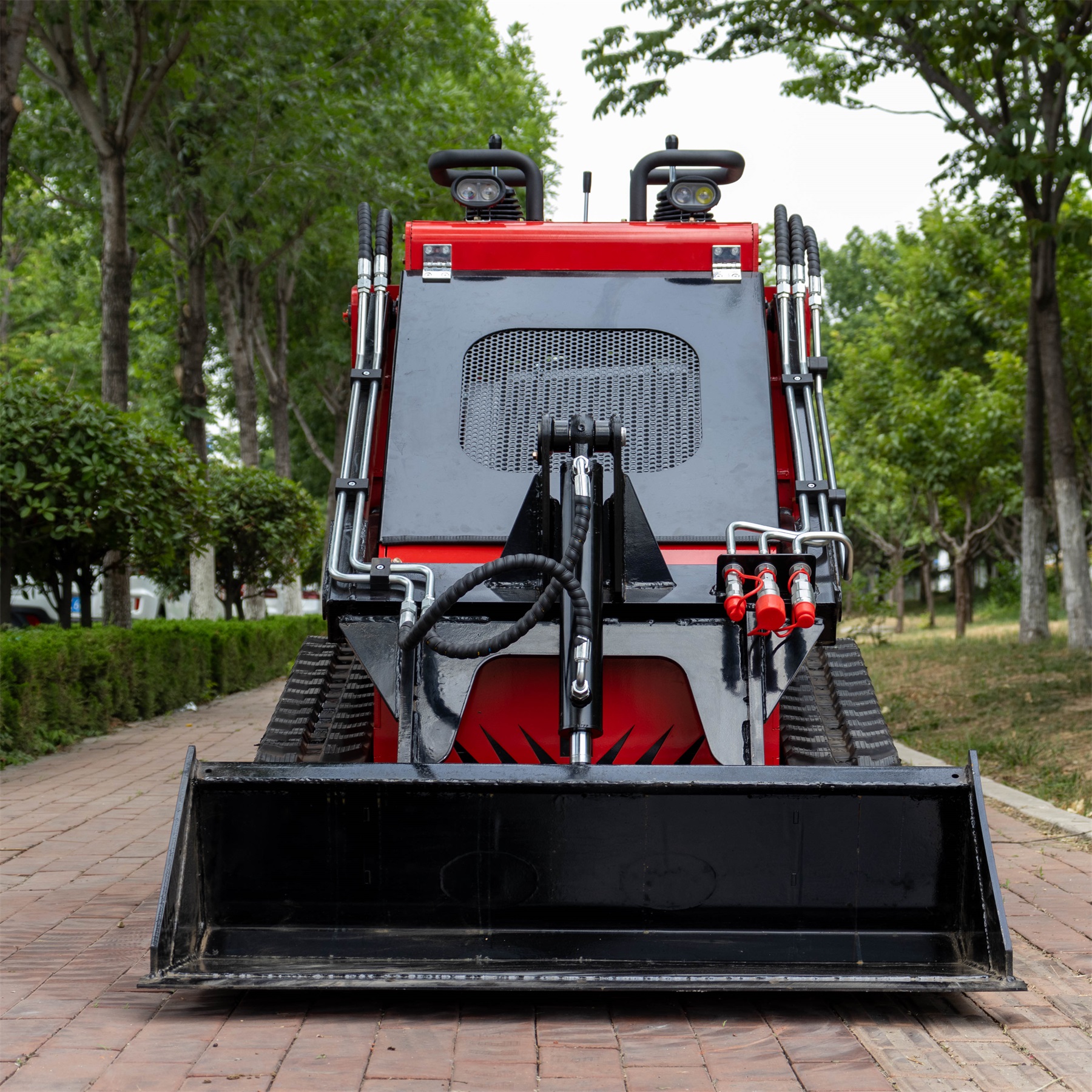

HT382T Skid Steer Loader
The HT382T Skid Steer Loader is a small, flexible and highly maneuverable crawler loader that can move quickly and flexibly, allowing it to move and work freely in tight Spaces and complex environments.
- Overview
- Parameter
- Related Products
Detail description
1-BRAND ENGINE
Rating Horsepower: 23hp,Kubota® diesel engine
Engine brand : Briggs & Stratton,RATO, HONDA Gasoline enginesand Kubota diesel engine, Kholer
World Top Powerful and Reliable Kubota® diesel engine provides exceptional power.
2 -WHEELED/TRACKED
Wear-resistant tires/tracks can be customized,Flexible steering, strong grip,Suitable for a variety of terrain
3 -MULTI-FUNCTION CONSOLE
Hydraulic double operating lever,Flexible use of high safety factor,The numbers are clear to my eyes

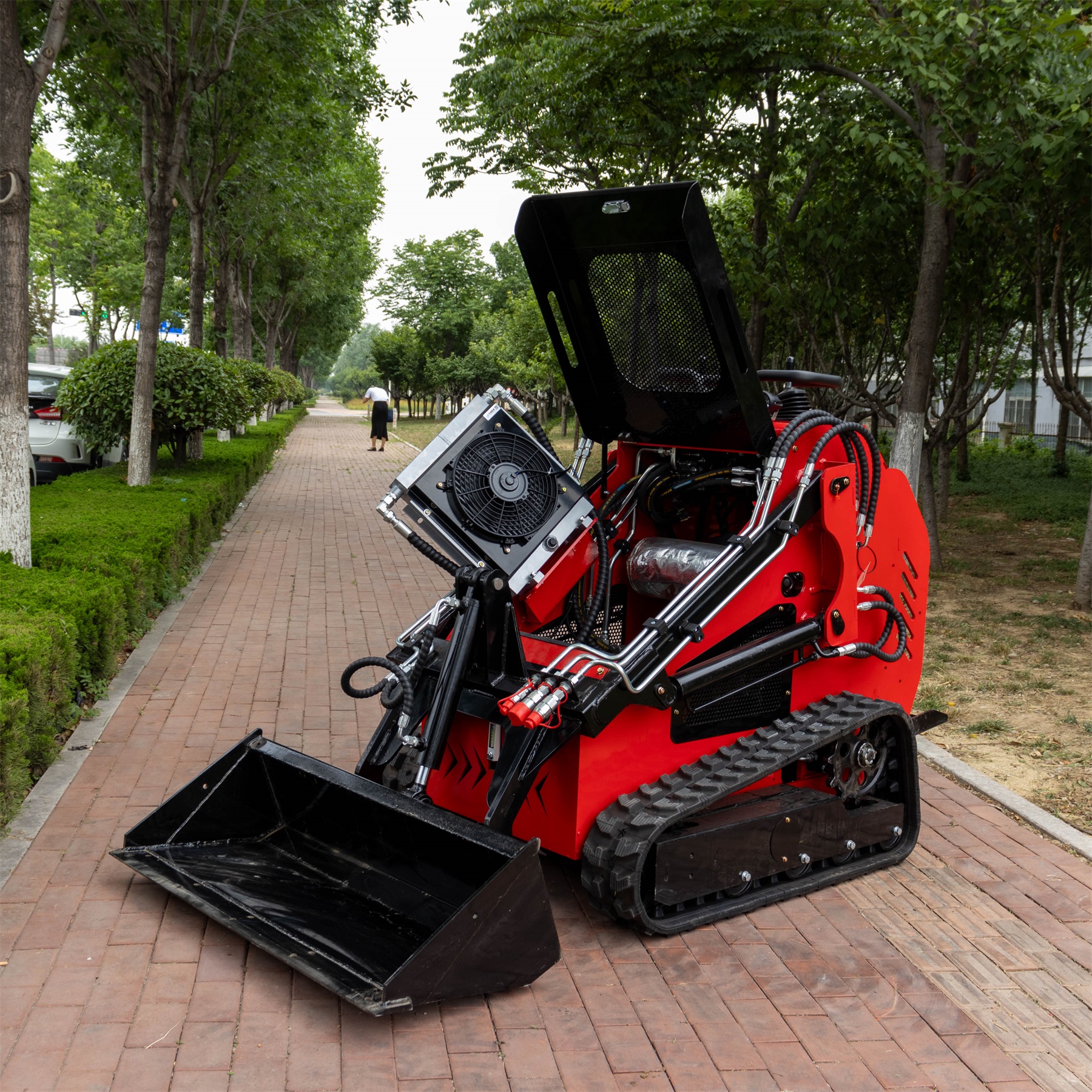

4 -RADIATOR
Reasonable air duct layout design,Compact structure, rapid heat dissipation.
3 seconds,Cooling the machine quickly
5 -HYDRAULIC LIFTINGO
Thick hydraulic tubing, strong sealing, no oil leakage and oil leakage, stable and stablelifting operation
6 -Flexible convenient operation
The machine is equipped with an advanced attachment latching systemfor simple, secure connections. The machine's narrow frame easily fitsthrough standard yard gates and is engineered to maneuver in tight.compact spaces for improved productivity in hard-to-reach places
7- Dual Jovstick Controls
Ergonomic operator's station comes standard with dual-level ground drivecontrols, with an optional joystick,allowing the operator to control eachtrack independently for improved maintenance an mobility on difficult job-site conditions.
8-Product Details
Multi-function operation panel.Standard quick-change connector,can be connectedto a variety of attachments.Intelligent throttle control system,Achieve linearcontrol of the throttle.Upgraded and thickened track, anti-skid anddurable.
Parameter
Max working height |
2105mm |
Max pin height |
1865 mm |
Max Dumping height |
1390 mm |
Max Dumping distance |
600mm |
Max Dumping Angle |
40° |
Total height |
1415 mm |
Ground clearance |
125 mm |
Wheel base |
/ |
Overall length without bucket |
1685 mm |
Total width |
1025 mm |
Bucket width |
1150mm |
Total length with bucket |
2340mm |
overall length without the bucket after folding the pedal. |
1685mm |
Engine |
R740-1 |
Rated Power (KW) |
16.5Kw/3600rpm |
Rotating speed (rpm) |
3600 |
Noise (Db) |
≤95 |
Hydraulic System |
|
Pressure (Mpa) |
0-16 |
Flow rate |
0-40L |
Operating Load |
300 Kg |
Bucket Capacity |
0.15m³ |
Max Lifting Force |
380 Kg |
Travel Speed |
0-4.5Km/h |
Operating Weight |
Kg |
Oil |
|
Fuel tank |
20L |
Engine oil |
1.7L |
Hydraulic tank |
35L |
