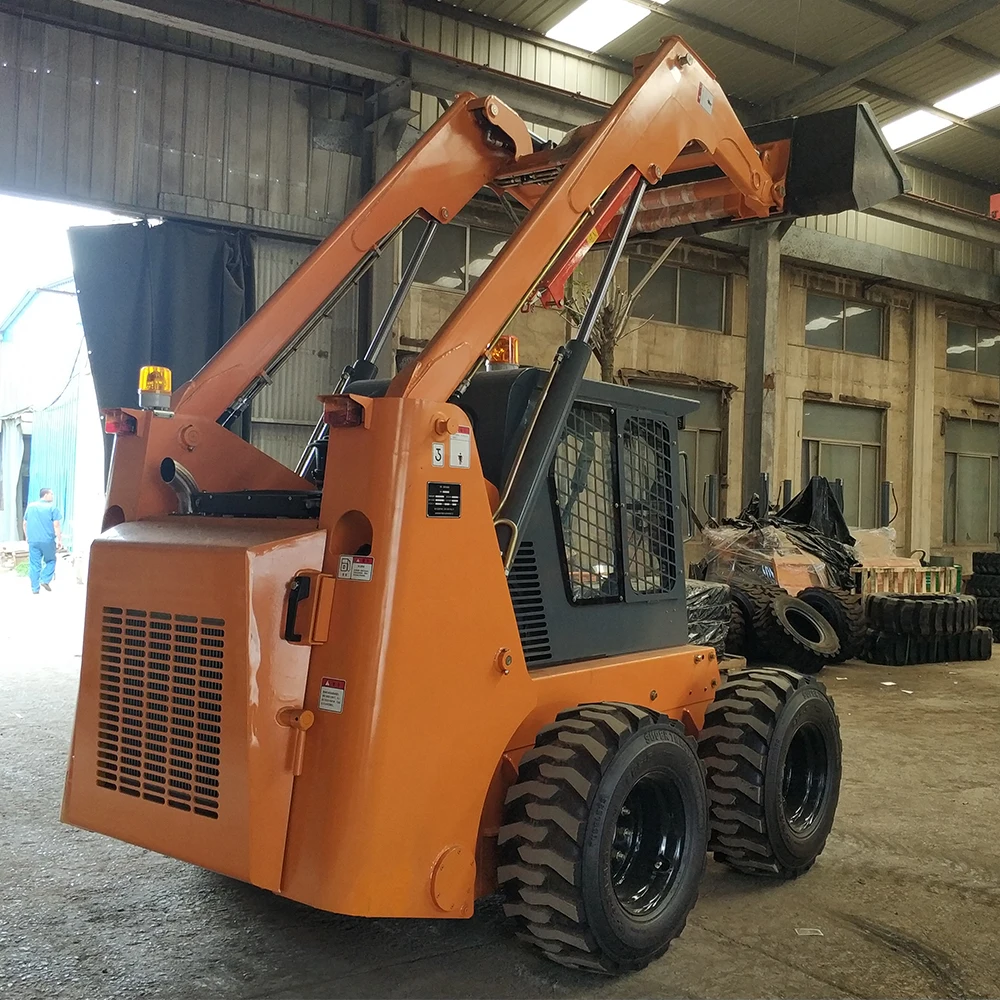

Chinese Construction Machinery Skid Steer Loader for Sale

Chinese Construction Machinery Skid Steer Loader for Sale

Overview
Related Products

Crawler Skid Steer Loader With 0.5m3 Bucket

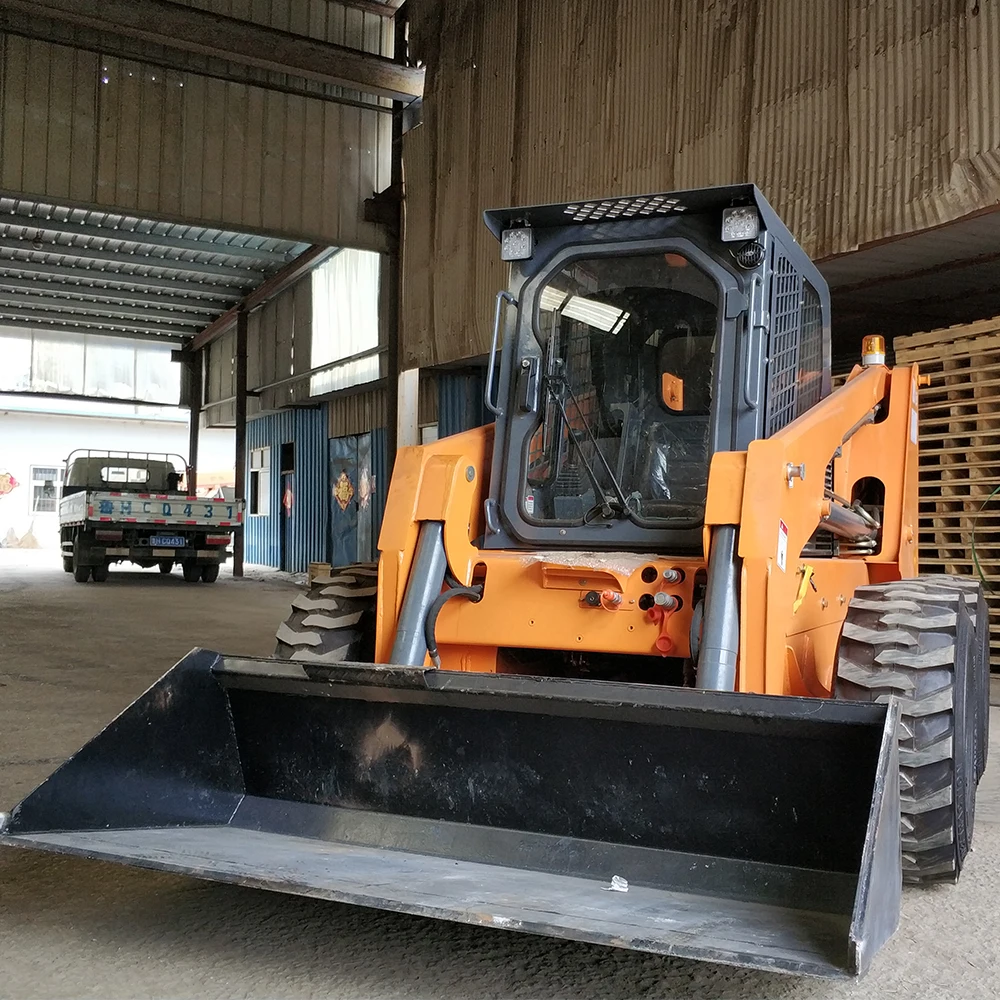

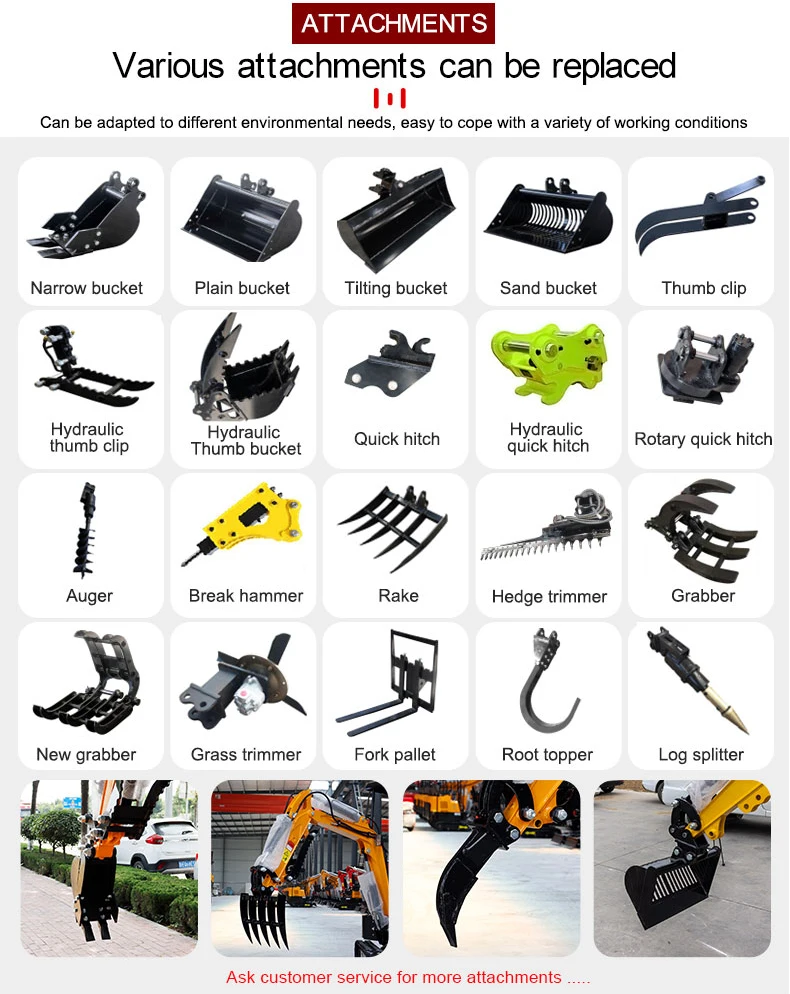

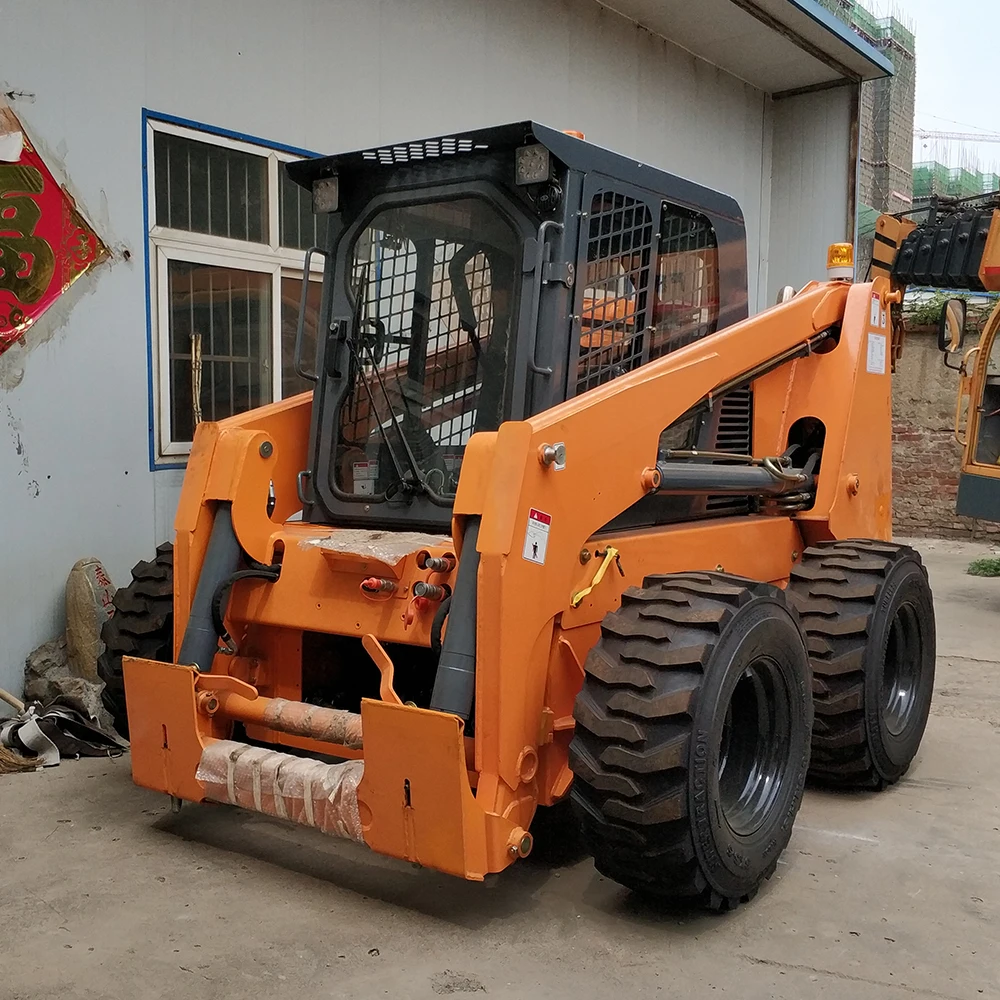

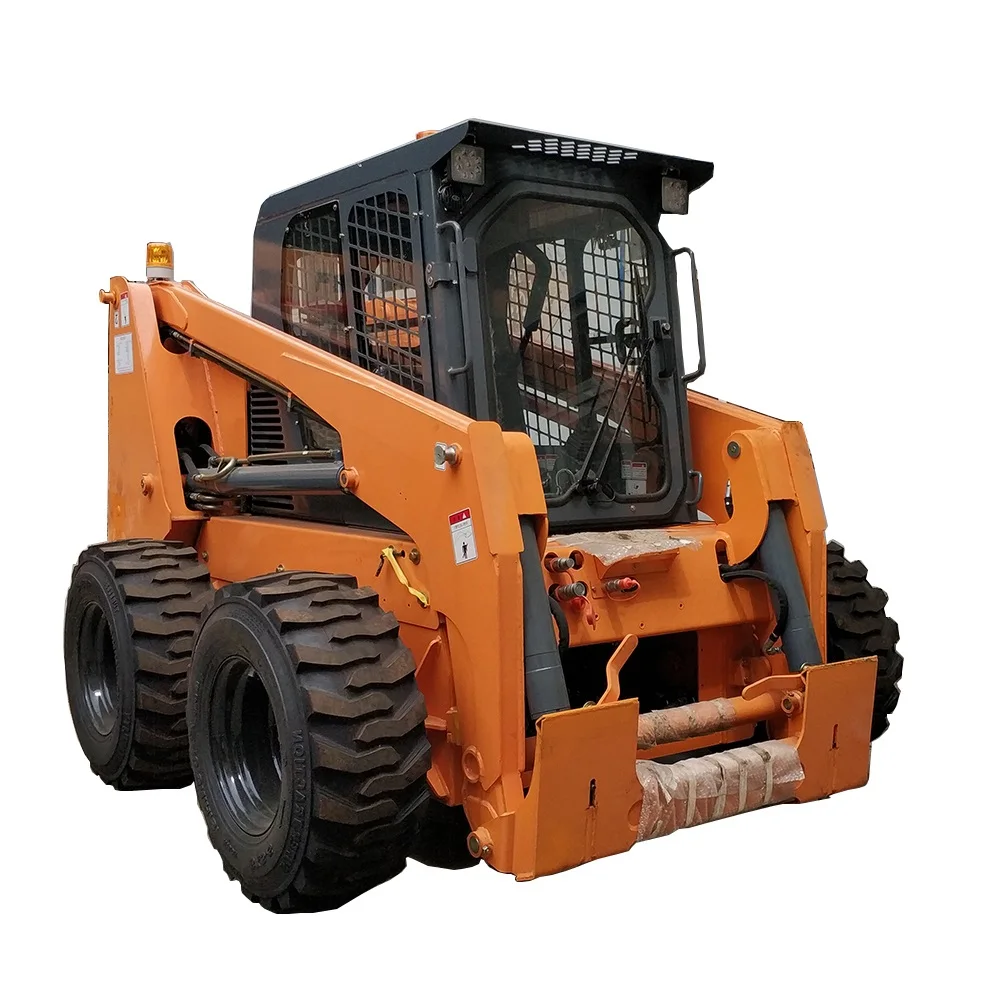

skid steer loader is wheeled type, 4WD and skid-steering. The conventional bucket of many skid loaders can be replaced with a
variety of specialized buckets or attachments, many powered by the loader's hydraulic system. These include backhoe, hydraulic
breaker, pallet forks, angle broom, sweeper, auger, mower, snow blower, stump grinder, tree spade, trencher, dumping hopper,
ripper, tillers, grapple, tilt, roller, snow blade, wheel saw, cement mixer, and wood chipper machine

Rated Operating Capacity	850kg
Tipping load	1600kg
Bucket Capacity	0.5m3
Lifting Force	1950kg
Hydraulic Pump Flow	83(L/min)
Engine power	78(HP)
Weight	3100kg
Max. Travel Speed(km/h)	12(km/h)
Grade ability	20°
Tire	10- 16.5
Fuel/hyd. Oil capacity	65/65 L
Height at Maximum Extension	398mm
Hinge Pin Height	3080mm
Total Height	2007mm
Length with Bucket	3413mm
Length without Bucket	3413mm
Width with Bucket	1700mm
Track Width	1450mm
Wheel base	999mm
Ground Clearance	185mm
Dumping Angle	30°
Dumping Height	2303mm
Maximum Reach	675mm
