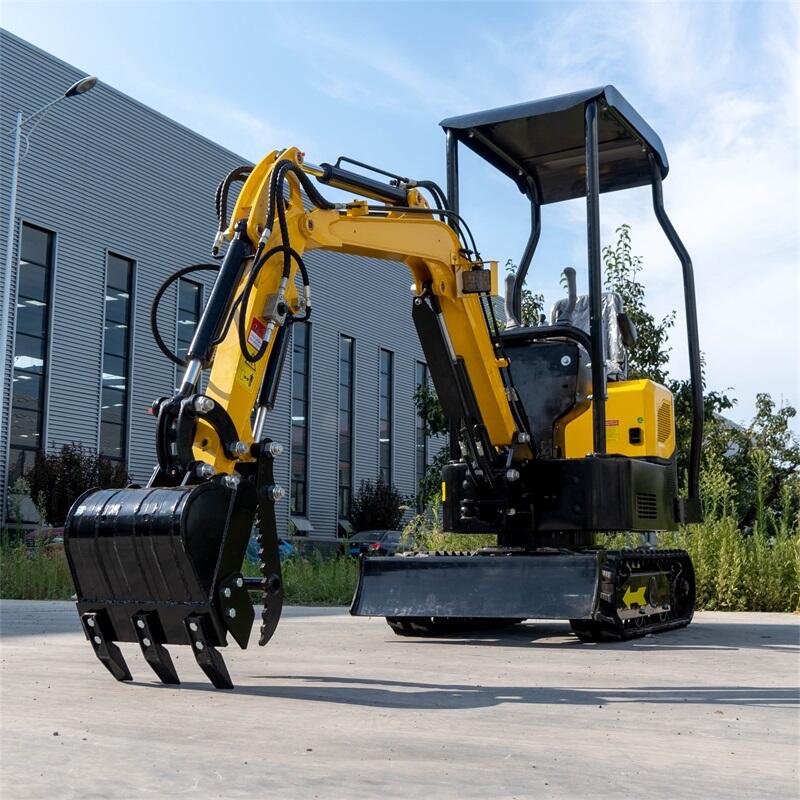

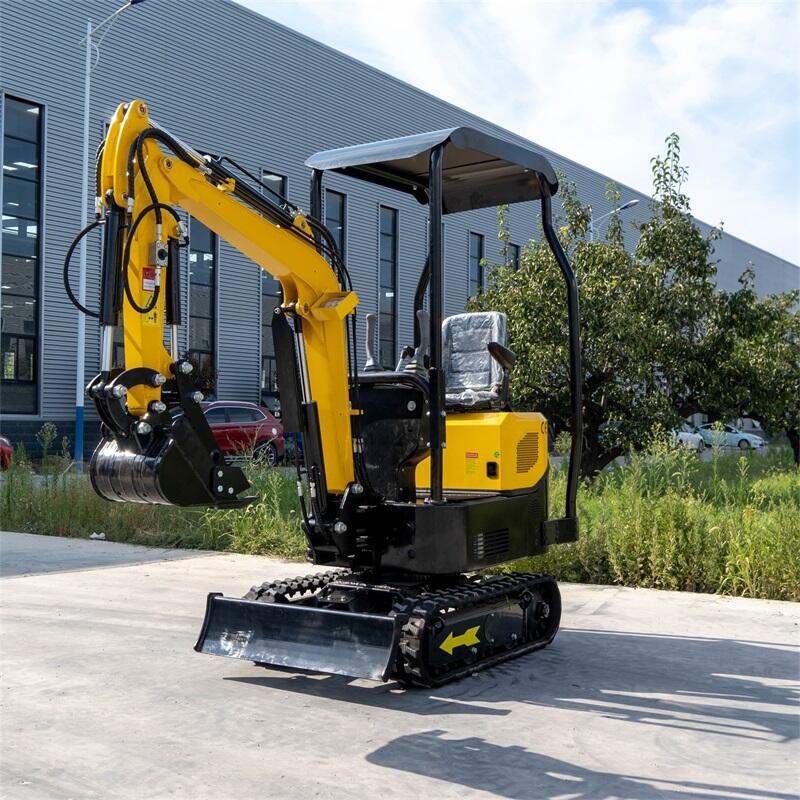

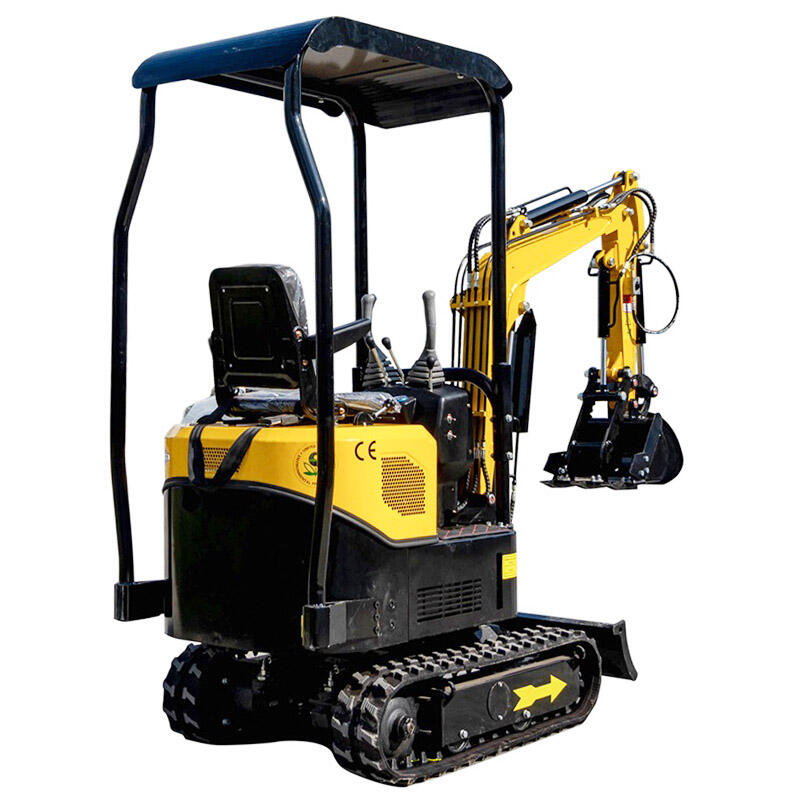

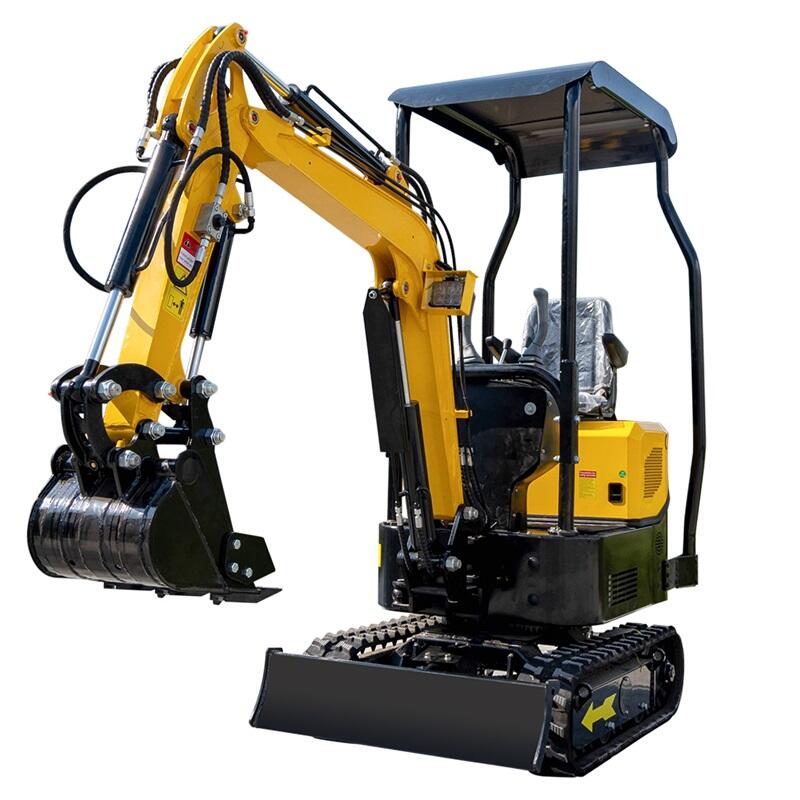

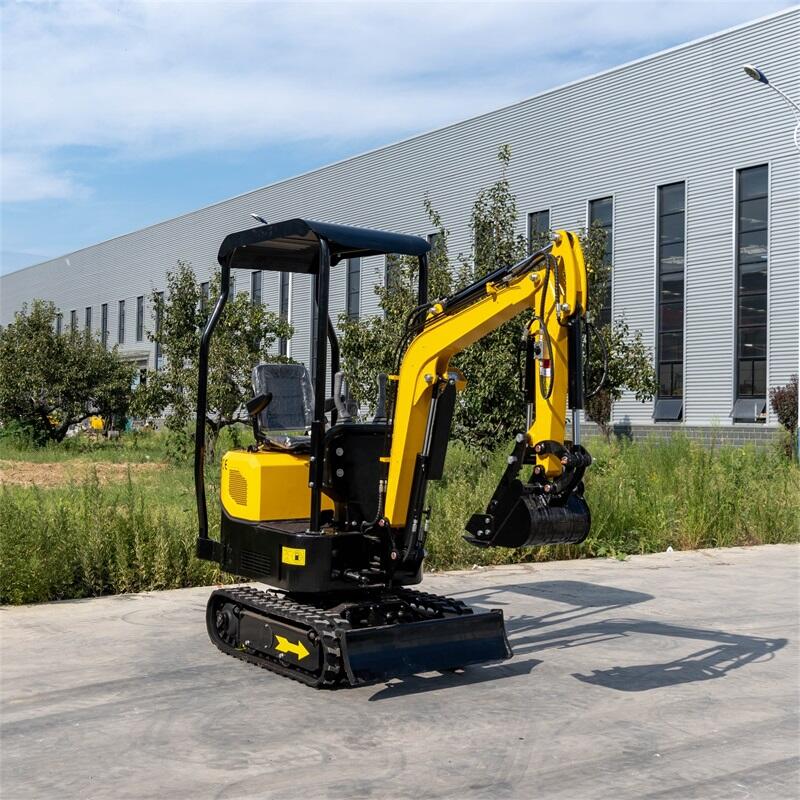

HT-10CZ Mini Excavator

HT10CZ hydraulic crawler mini excavator with BRIGGS & STRATTON engine, super power, energy saving. Optional boom deflection, telescopic track, closed cab. Color optional yellow, red, blue, white, black, etc., support customization, with EPA, Euro 5, CE, ISO certification.

  • Overview
  • Related Products

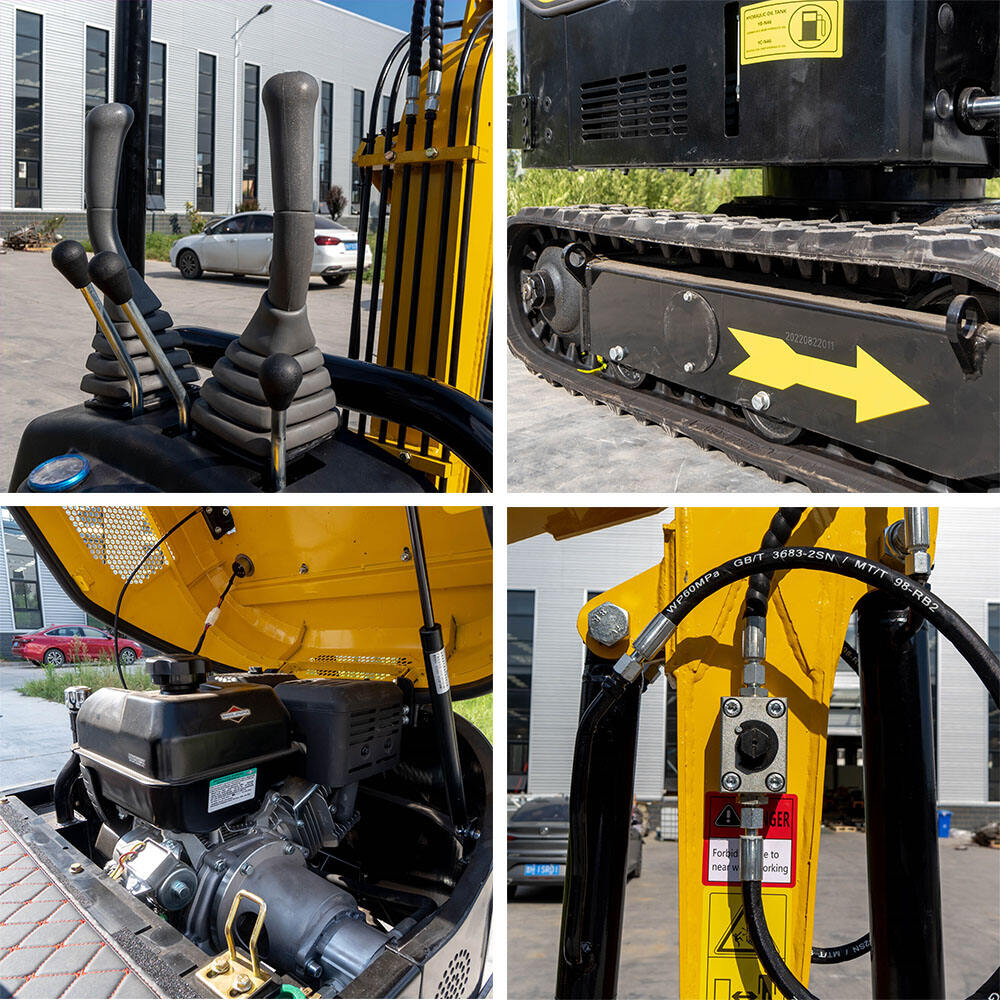

1.The back cover of HT10CZ Reliable Mini Excavator can be opened, and the internal engine and other accessories can be seen at a glance, which is convenient for customers to refuel and maintain.

2.HT10CZ 1000kg Crawler Mini Excavator is able to rotate 360 degrees without tail.

3.This Durable Crawler Mini Excavator is installed with Bailiton engine, which meets the U.S. EPA environmental requirements, and can ensure the machine to work stably in the harsh environment.

4. The bucket of the hydraulic excavator can be replaced with sieve hopper, narrow bucket with teeth, tilting bucket, flat bucket, rake, hydraulic thumb clamps, looseners, crushing hammer and other attachments.

5.HT10CZ compact excavator is equipped with red flexible coupling, which can play the role of shock absorption.

6. The oil supply system of theReliable Crawler Mini Excavator is equipped with high-precision air and oil filters, with a filtration precision of 1μm and a filtration rate of over 99.9%. Installation of oil pressure alarm system, the lack of oil will automatically alarm, play a role in protecting the machine. Hydraulic oil tank breather valve with pressure compensation valve and air filtration function, other manufacturers' machines are only a cover, no pressure.

7. This compact crawler hydraulic excavator is equipped with a heat dissipation system, built-in built-in sealed exhaust fan and good heat dissipation system to ensure that the machine does not heat up and its service life is extended.

8. Three pipelines of the traveling motor, one of which is the oil unloading pipe, preventing the motor internal pressure from being too high, the internal high temperature oil will be unloaded in the oil unloading pipe to improve the service life of the traveling motor.

9. Stabilizing and balancing system, thickened four-legged roof structure, high stability, safety and reliability.



Technical Parameters

Model

HT10CZ

Weight

1000kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

KOOP192F)

Optional Engine

BRIGGS & STRATTON YANMAR

Bore stroke

Single cylinder, fan cool

Rated power

7kw/3000r/min

Main pump

G5-6

Displacement

6.8ml/r

Swing motor

SANYANG (BMRS-250)

Traveling motor

SANYANG (BMT-245)

Travel speed

1.5km/h

Main Demensions

Overall dimension( LxWxH)

2775 x 930 x 2219 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

Main Demensions

Max. Digging depth

17`50 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm
