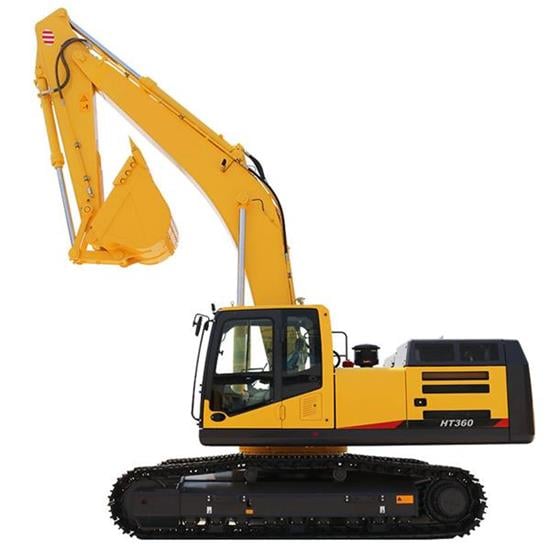

HT360 Large Excavator

The HT360 equipment has a total weight of 36 tons, with overall dimensions designed to balance operational flexibility and stability: total length 11,187 mm, total width 3,190 mm, cab height 3,165 mm,

HT360 Large Excavator Parameter

Model:HT360
Total Weight	36t	Track grounding length	4030mm
Bucket capacity	1.6-1.8m³	Track length	4945mm
Engine model	Cummins QSC8.9	Rail guage	2590mm
Rated power	242kw/2000r/min	Track width	3190mm
Fuel tank volume	650L	Track shoe width	600mm
Walking speed	6.2/4km/h	Turntable width	2995mm
Swing speed	8.2r/min	Distance from the center of rotation to the rear end	3525mm
Climbing ability	35°	Track tooth thickness	30mm
Bucket digging force	245kn	Counterweight height	2627mm
Arm digging force	185kn	Grounding length during transportation	5875mm
Ground pressure	70.8kpa	Arm length	3185mm
Traction	247.8kn	Boom length	6470mm
Hydraulic pump model	K5V160DT	Max.excavation height	10200mm
Max.flow rate	270*2+30L/min	Max.unloading height	7135mm
Work pressure	37mpa	Max.digging depth	7370mm
Hydraulic tank volume	310L	Max.vertical digging depth	6380mm
Total length	11187mm	Max.digging depth when digging out 2.5m level	7190mm
Overall width	3190mm	Max.digging distance	11100mm
Total height (boom top)	3180mm	Max.excavation distance on the ground	10910mm
Overall height(top of cab)	3165mm	Min.turning radius	4265mm
Counterweight ground clearance	1190mm	Max.height at minimum turning radius	8500mm
Minimum ground clearance	498mm	Tail turning radius	3525mm
