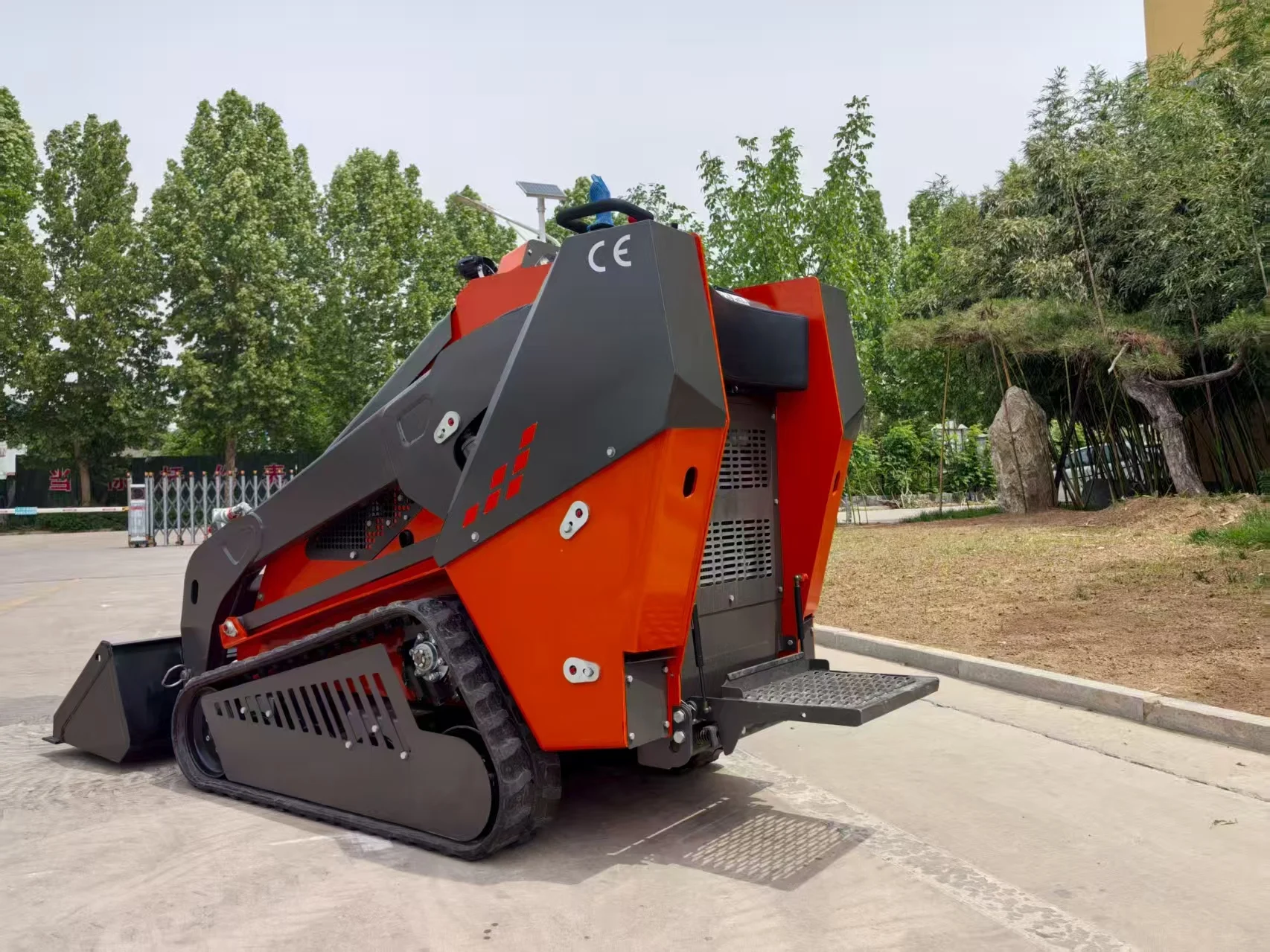

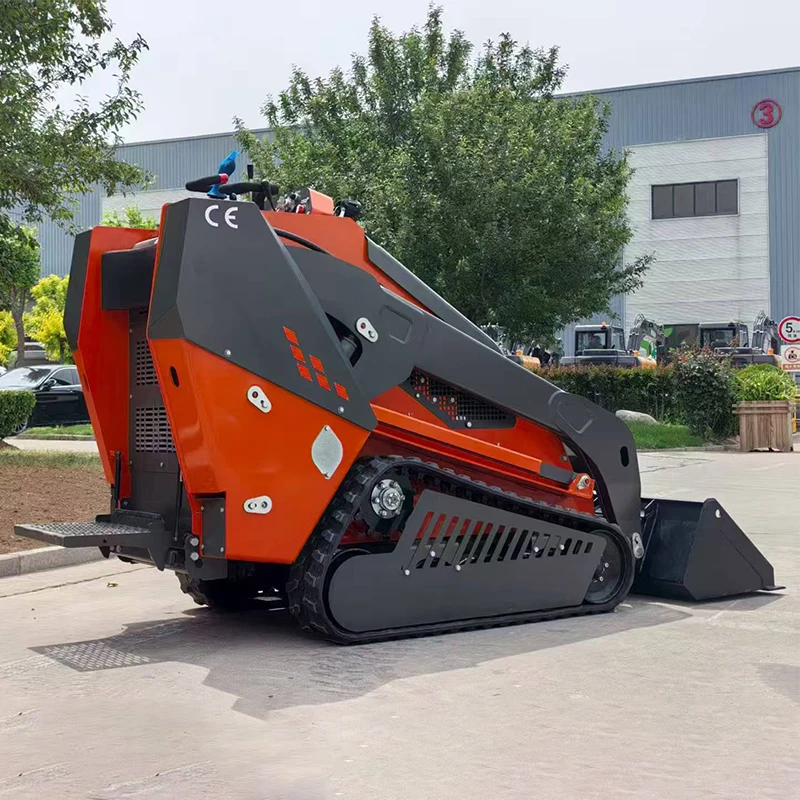

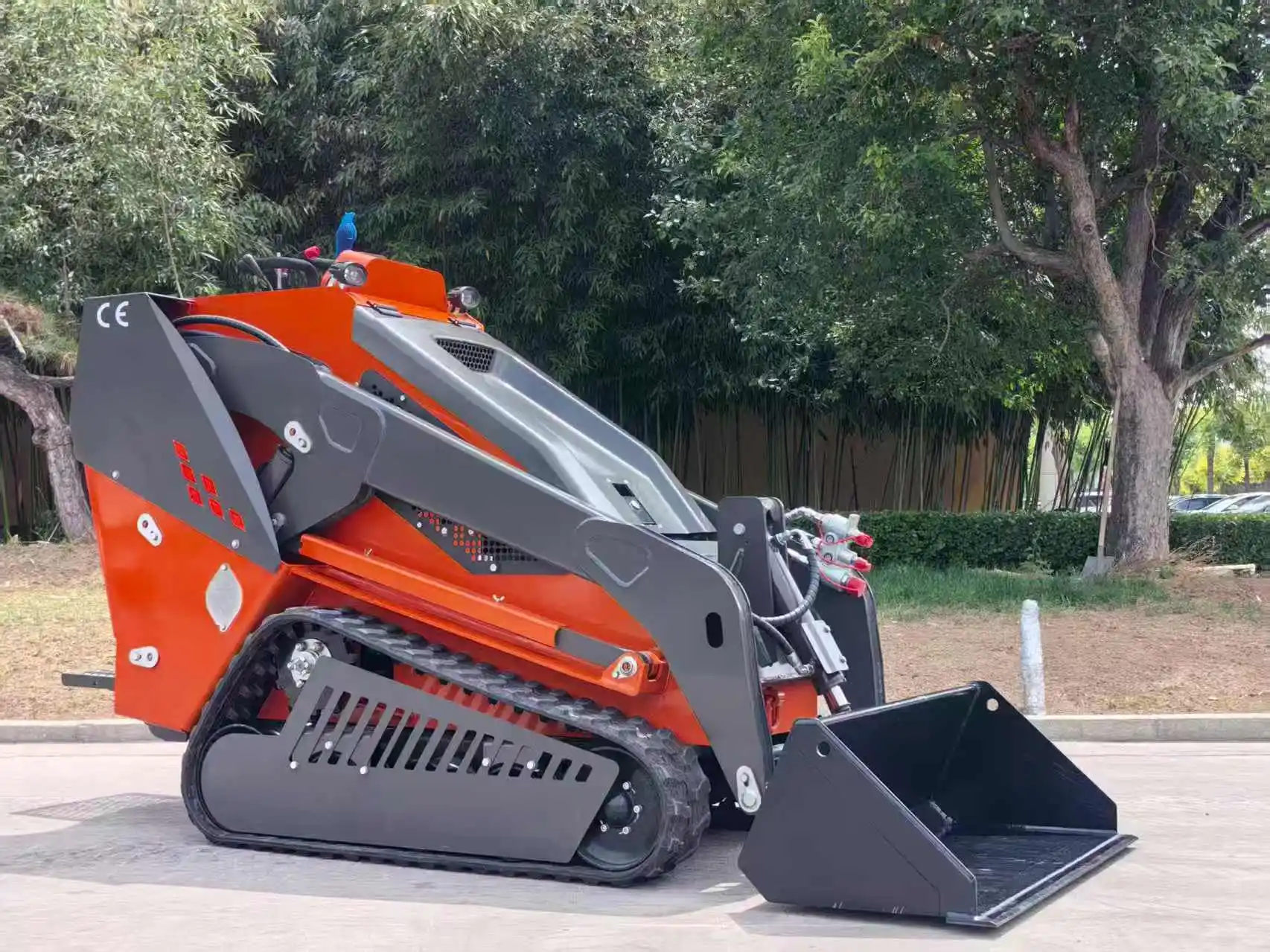

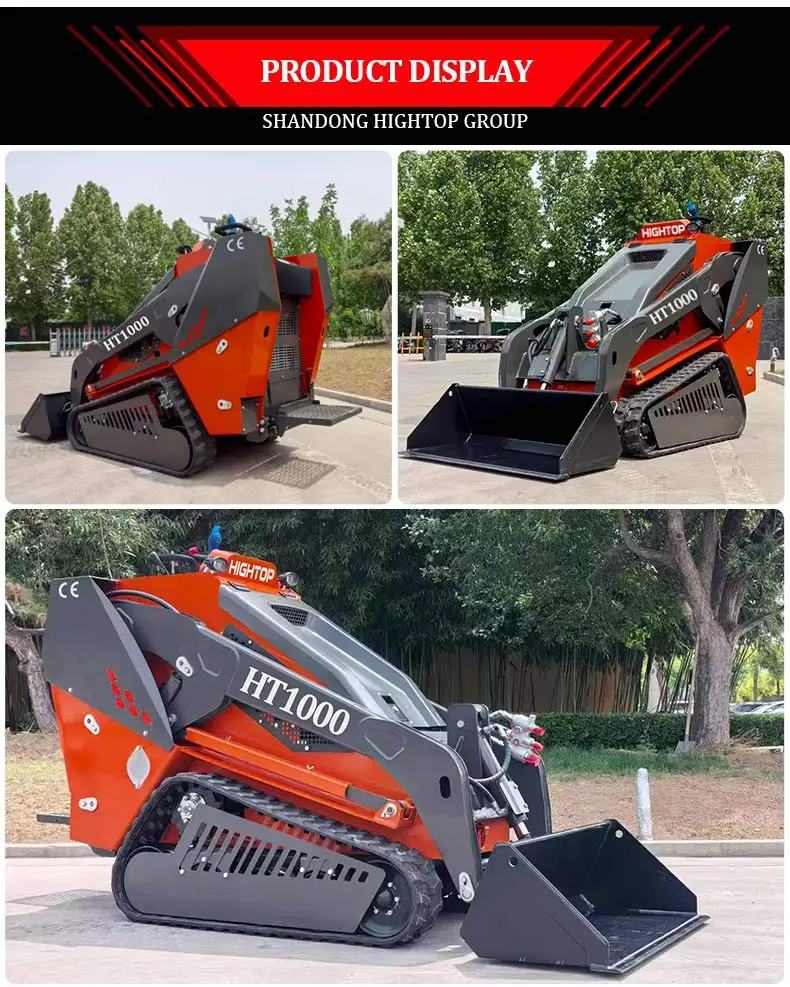

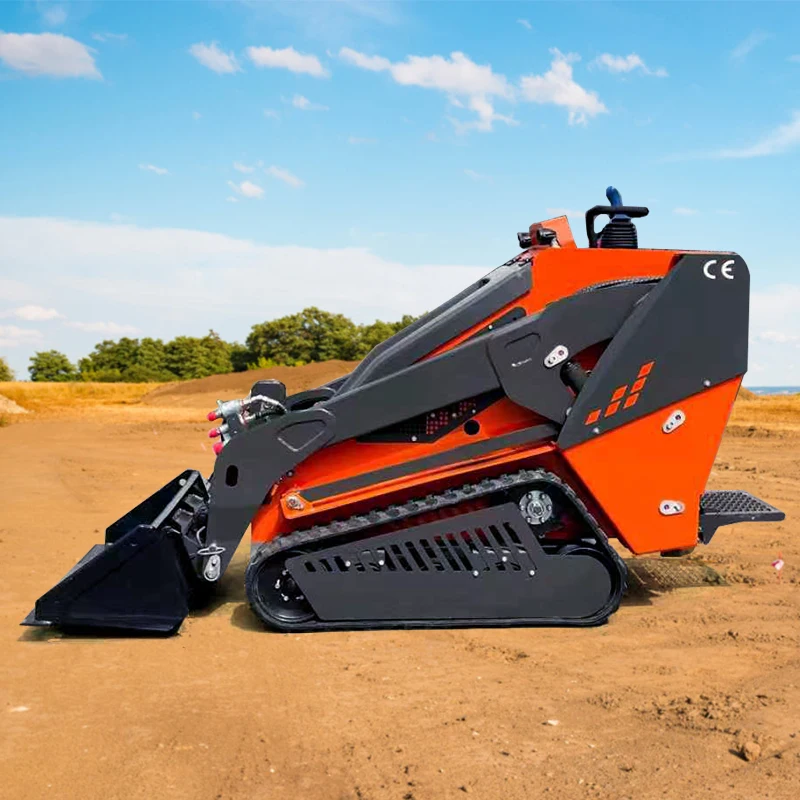

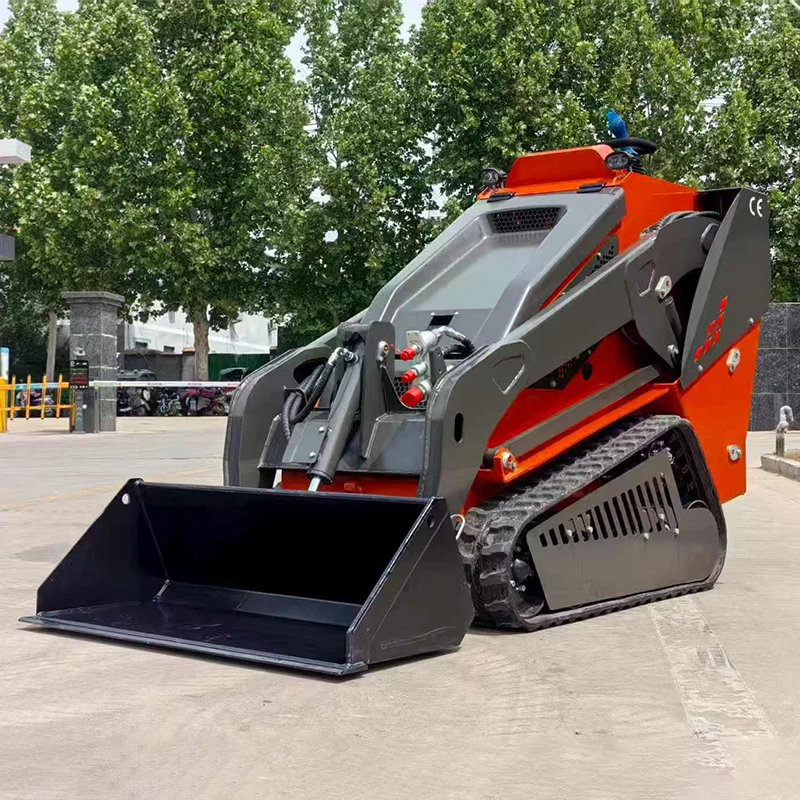

Chinese Small Skid Steer Mini Loader Hydraulic Compact Crawler Loader for Construction and Farm
- Overview
- Related Products
Welcome to Hightop Group
Discover Excellence in Excavation with
Our Mini Excavator and Skid Steer Loader!
OEM customized， factory direct ，Competitive price
HIGHTOP Products,Your Good Assistant in Life!
We ,HIGHTOP mini excavator and mini skid steer loader manufacturer Located in Shandong China.Our mini excavators all CE EPA Approved, our excavator models 0.8ton to 9ton crawler excavators,you can Choose the suitable model you need.We support various
customizations as machine Color, Configuration,Design,etc.Looking forward to cooperating with you.
customizations as machine Color, Configuration,Design,etc.Looking forward to cooperating with you.
Item |
Metric |
Angle of departure |
25° |
Max dump angle |
45° |
Max.dump height |
1610mm |
Max .dump diatance |
605mm |
Min .ground clearance |
128mm |
Height of Foot pedal to ground |
228mm |
Max.lift height of boom |
2155mm |
Total height |
1670mm |
Total length (No bucket) |
2278mm |
Total length (with bucket) |
2835mm |
Max lift height of bucket |
2719mm |
Max /rotary angle of bucket |
81° |
Track length on the ground |
1065mm |
Turning radius （with bucket） |
1528mm |
Total width(No bucket) |
1035mm |
Trackbase |
835mm |
Bucket width |
1140mm |
Bucket capacity |
0.14 m3 |
Loading weight |
475kg |
Tipping ability |
1100kg |
Machine weight |
1780kg |
Traveling speed |
10km/h |
Track width |
200mm |
Hydraulic system pressure |
21Mpa |
Fuel tank capacity |
33L |
Hydraulic oil tank capacity |
30L |
Travel pump flow |
61.6L/min |
Working pump flow |
47.6L/min |
Engine |
Model |
KUBOTA D1105/PERKINS 403J-11 |
Rated power |
18.2KW/18.4KW(25HP) |
|
Rotating speed（rpm） |
3000 |
Product Description
Packing & Delivery
Packed in wooden box for LCL Load
Loading In Full Container:
20GP:6SETS
40HQ:12SETS
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2015,sell to North America(20.00%),Domestic Market(20.00%),Eastern Europe(15.00%),Western Europe(10.00%),Oceania(9.00%),South America(5.00%),Northern Europe(5.00%),Southeast Asia(4.00%),Eastern Asia(3.00%),Mid East(2.00%),Central America(2.00%),Southern Europe(2.00%),South Asia(2.00%),Africa(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mini Excavator,Road Roller,Fogger,Spray Machine,Packing Machine
4. why should you buy from us not from other suppliers?
As a group company, we have 3 business divisional organization. Hightop owns a managing and operating team with over 30 years experiences in construction products, earth-moving machine.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
