China Mini Excavator Garden Micro Excavators HT13 Mini Excavators

  • Overview
  • Related Products
Product Overview
Cheapest High Quality 1.3 Ton Excavator on Hot Sale
1) Simple structure and compact design ,easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation. 4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use. 5) Small invest, quick return.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE

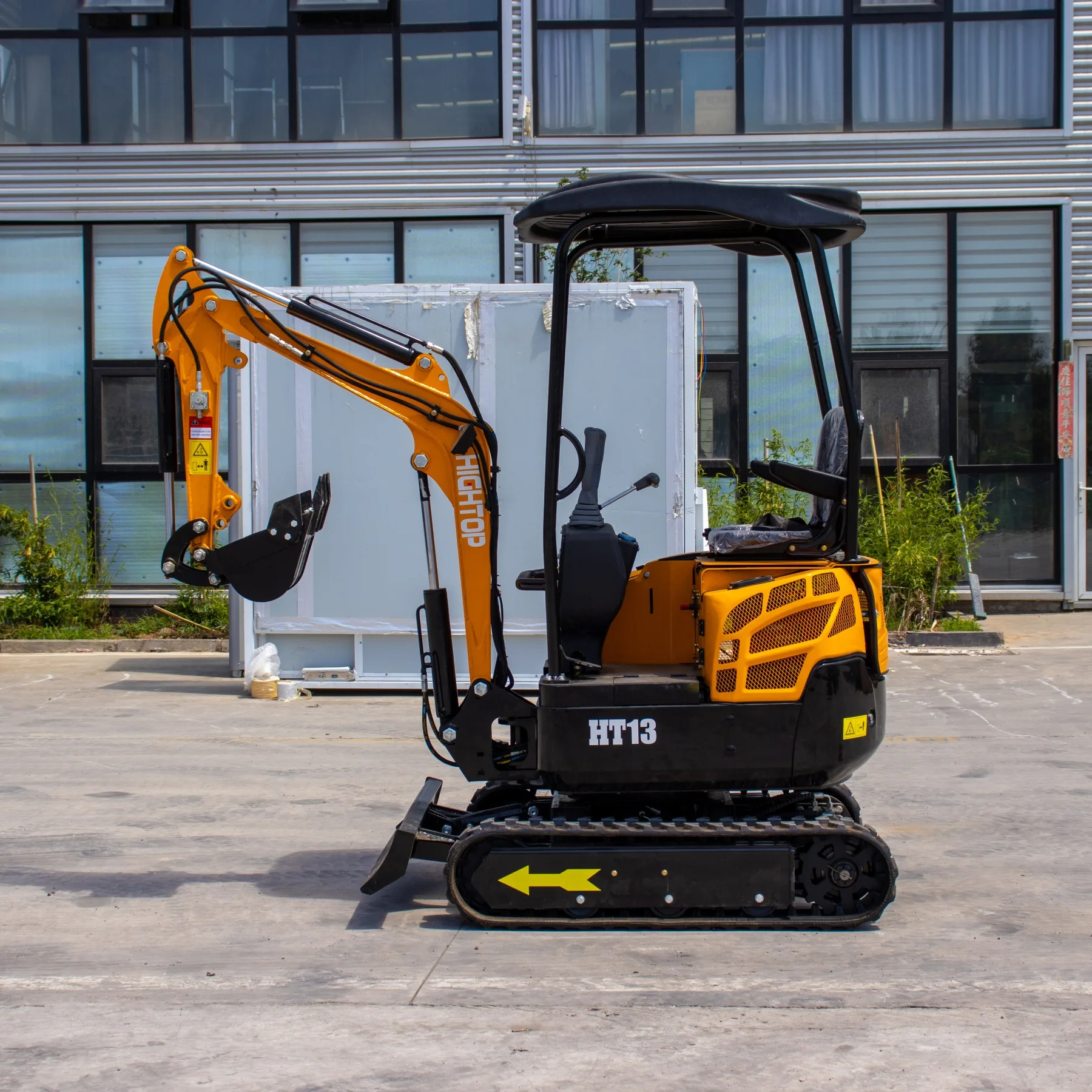

product china mini excavator garden micro  excavators ht13 mini excavators-1

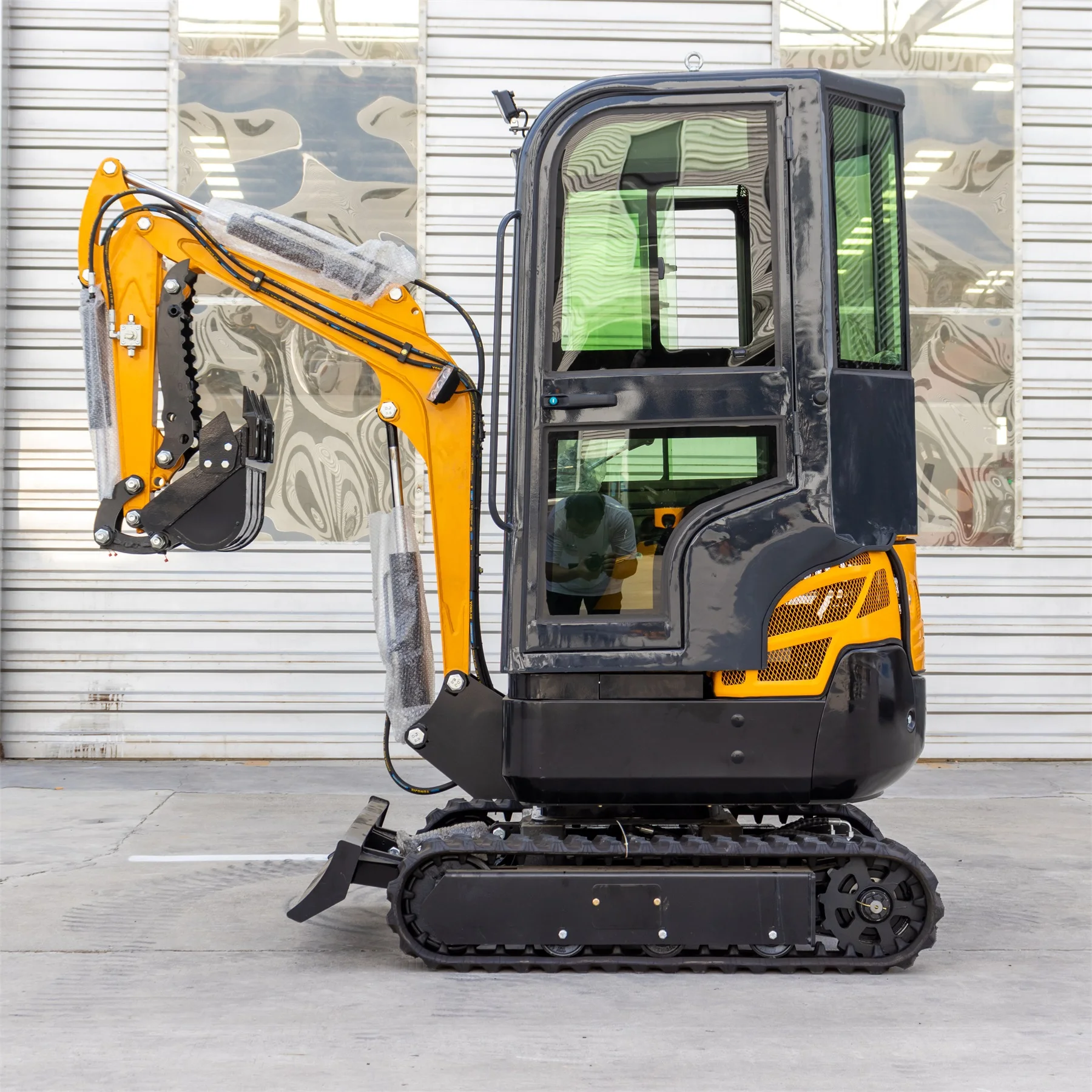

product china mini excavator garden micro  excavators ht13 mini excavators-2

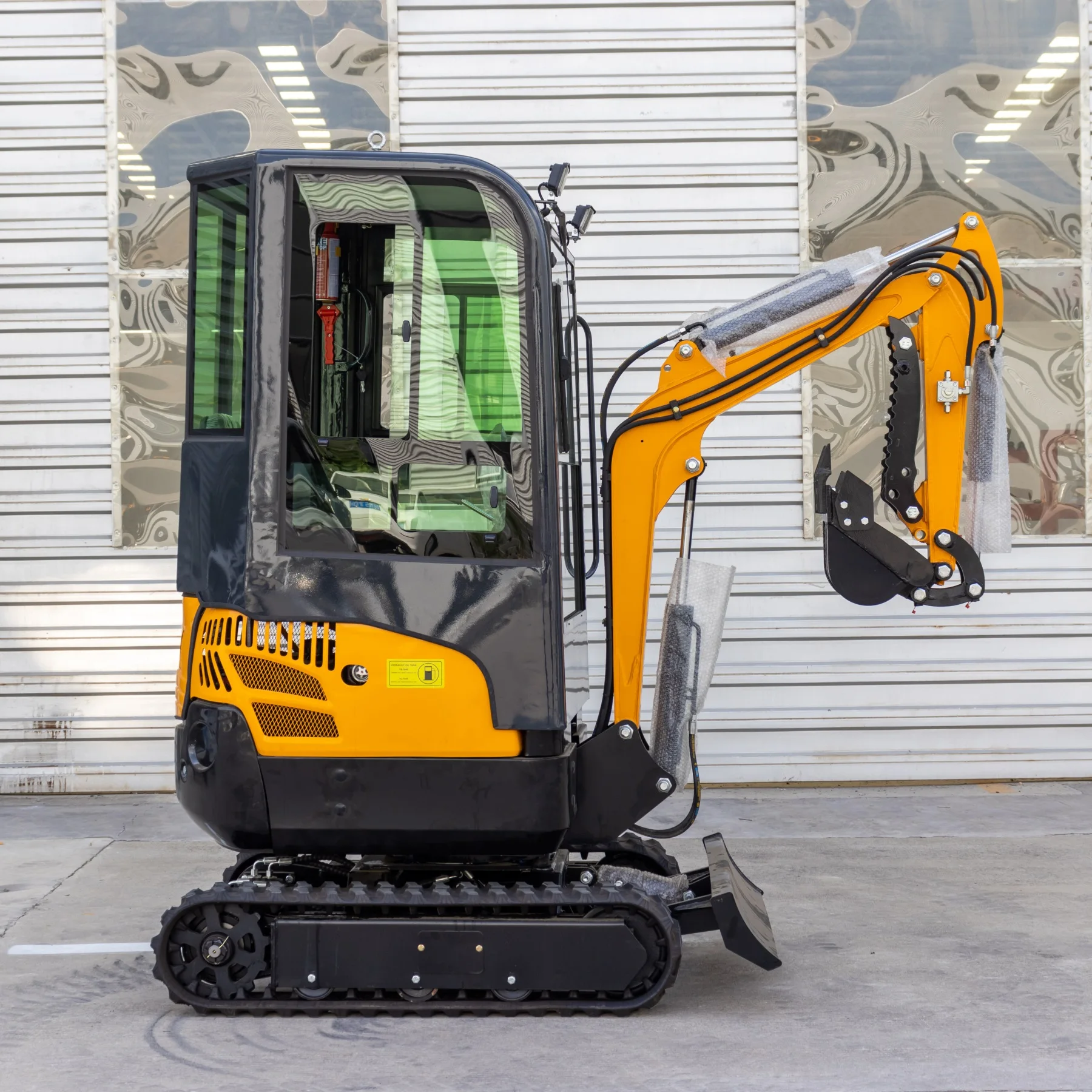

Right elevation
product china mini excavator garden micro  excavators ht13 mini excavators-3

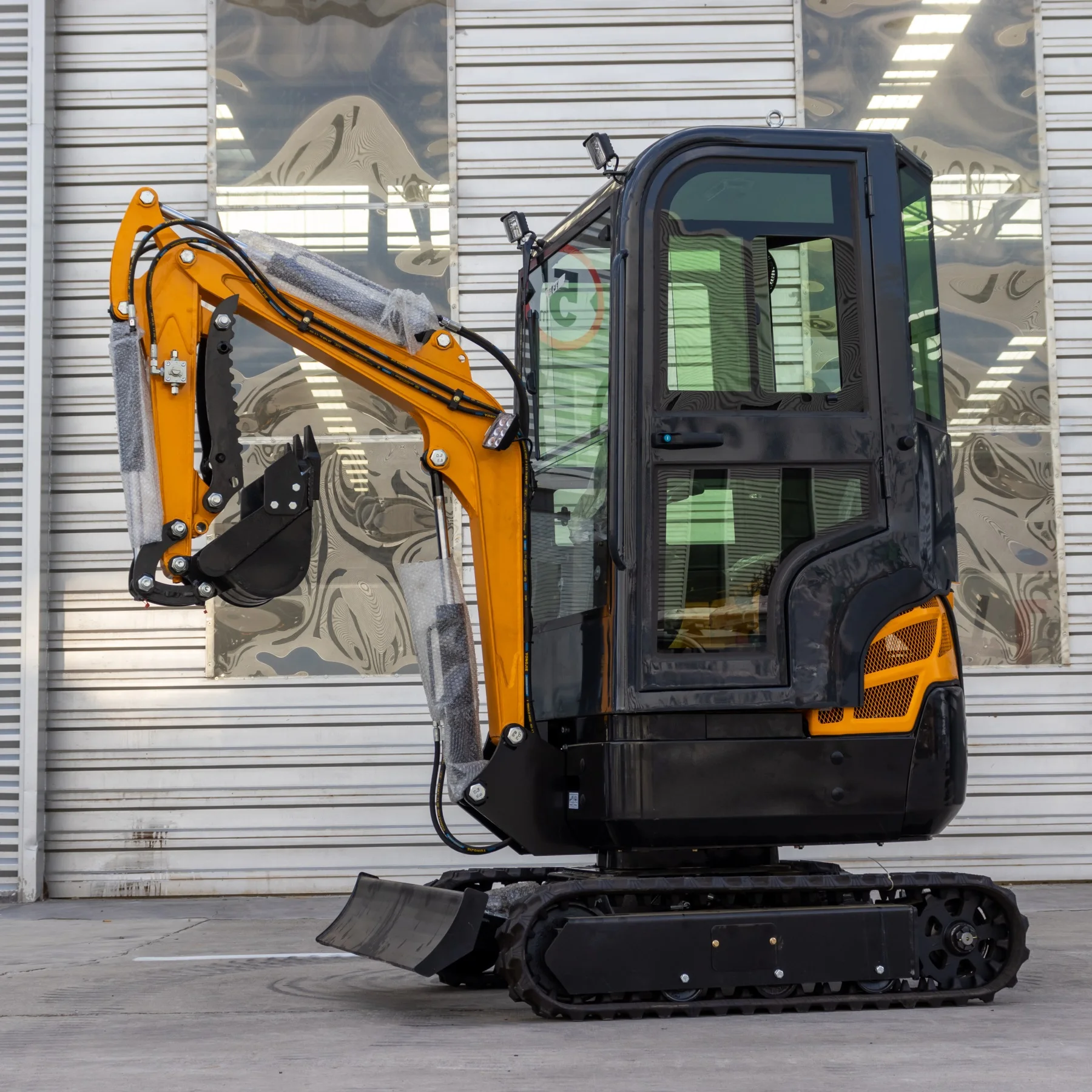

Left elevation
product china mini excavator garden micro  excavators ht13 mini excavators-4

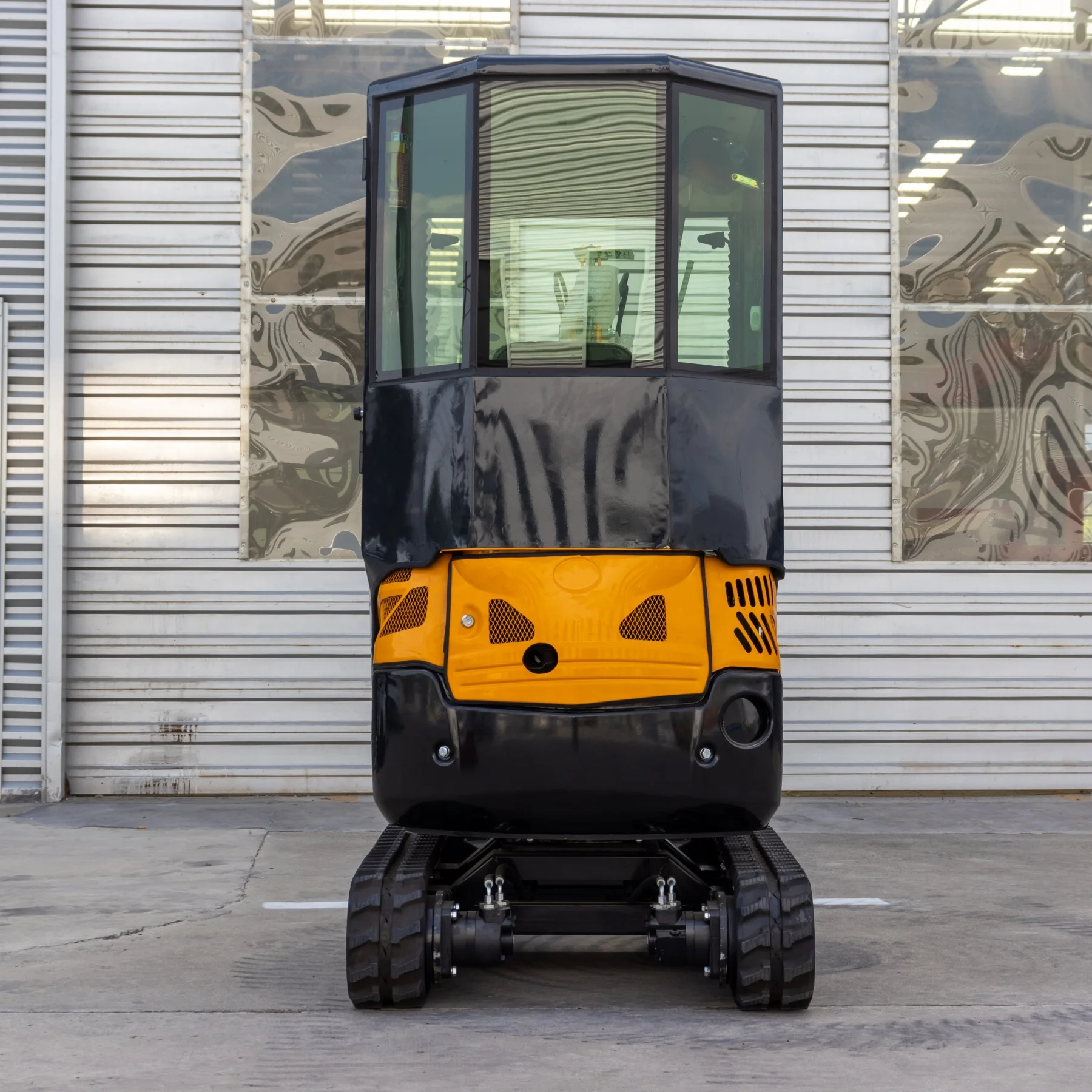

Front elevation
PRODUCT SPECIFICATIONS
Technical Parameters of HT13Mini Excavator
Overall size (unit: mm)
Operating(KG)
1300kg
Bucket capactity (m³)
0.025m³
Working device form
Backhoe
Gradeability
30°
Engine
KOOP192/Briggs&Stratton,
Power
7KW/13.5hp
Main valve
BEIFANG
Operating Range
Max. digging height(a)
2700
Max. Dumping Height(b)
1840
Max. digging depth(c)
1710
Max. digging distance(d)
2910
Min. radius(e)
1530
Max. height at min. turning radius(f)
2100
Main Demensions
Transport(A)
2325mm
Total width(B)
1100mm
Upper width(D)
990mm
Total height with roof top(C)
2270mm
Track width(F)
180mm
Track gauge(E)
920mm
Bulldozer height ground clearance(G)
105mm
Bulldozer digging depth(H)
270mm
Tail turning radius(I)
795mm
Track grounding length(J)
1050mm
Crawler Length (K)
1545mm
product china mini excavator garden micro  excavators ht13 mini excavators-5
product china mini excavator garden micro  excavators ht13 mini excavators-6
product china mini excavator garden micro  excavators ht13 mini excavators-7
product china mini excavator garden micro  excavators ht13 mini excavators-8
product china mini excavator garden micro  excavators ht13 mini excavators-9
product china mini excavator garden micro  excavators ht13 mini excavators-10
product china mini excavator garden micro  excavators ht13 mini excavators-11
product china mini excavator garden micro  excavators ht13 mini excavators-12
product china mini excavator garden micro  excavators ht13 mini excavators-13
product china mini excavator garden micro  excavators ht13 mini excavators-14
