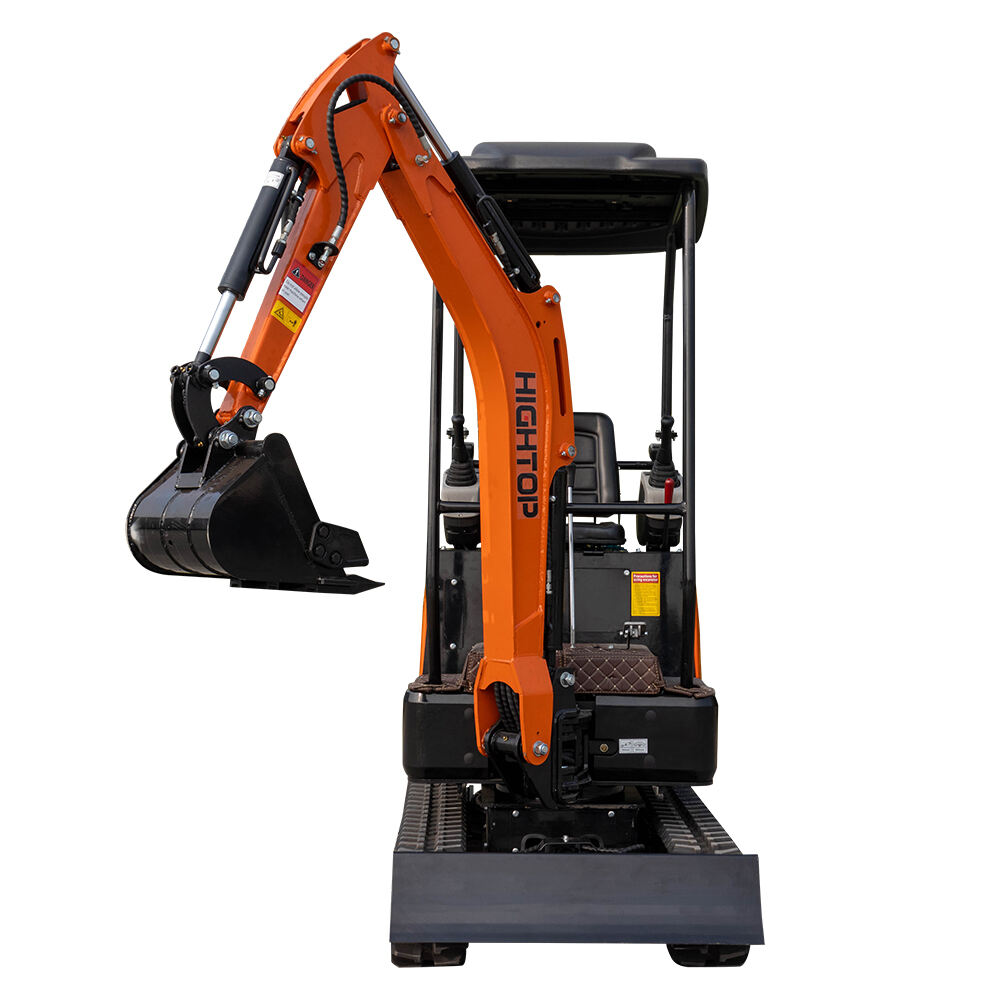

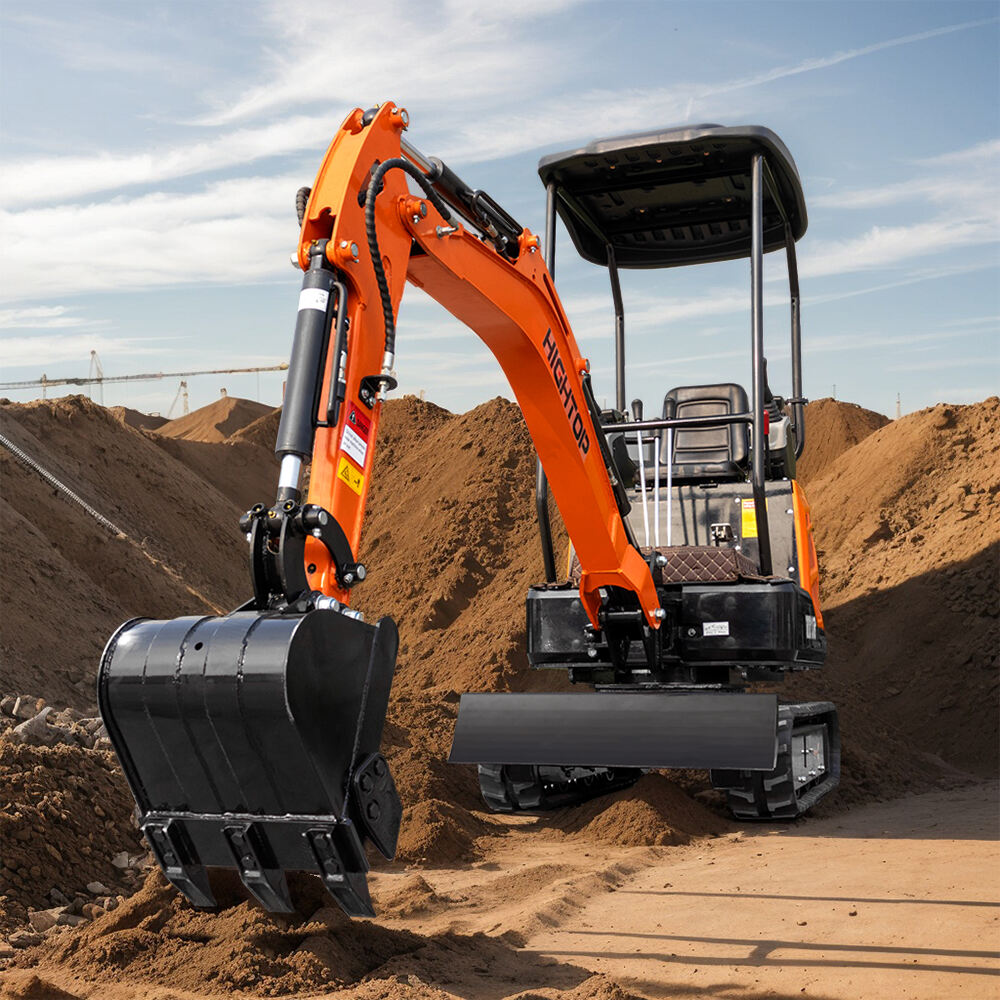

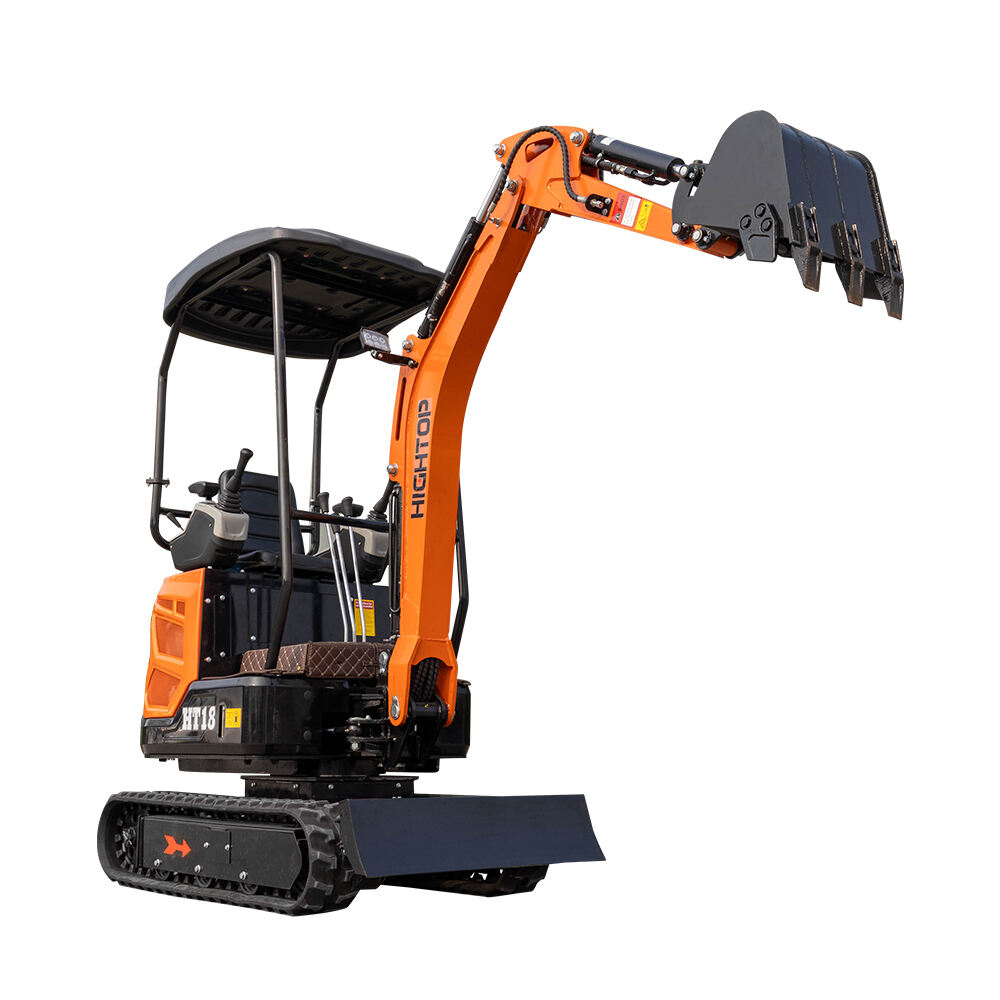

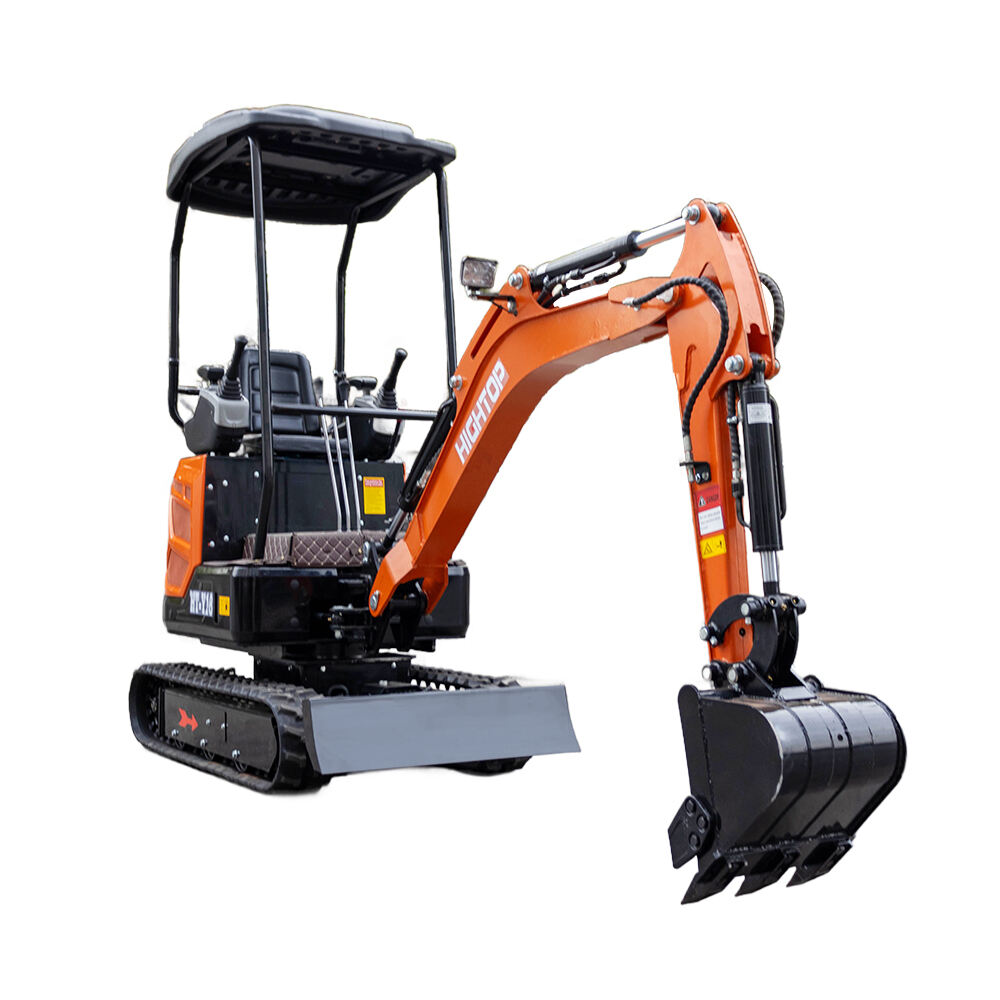

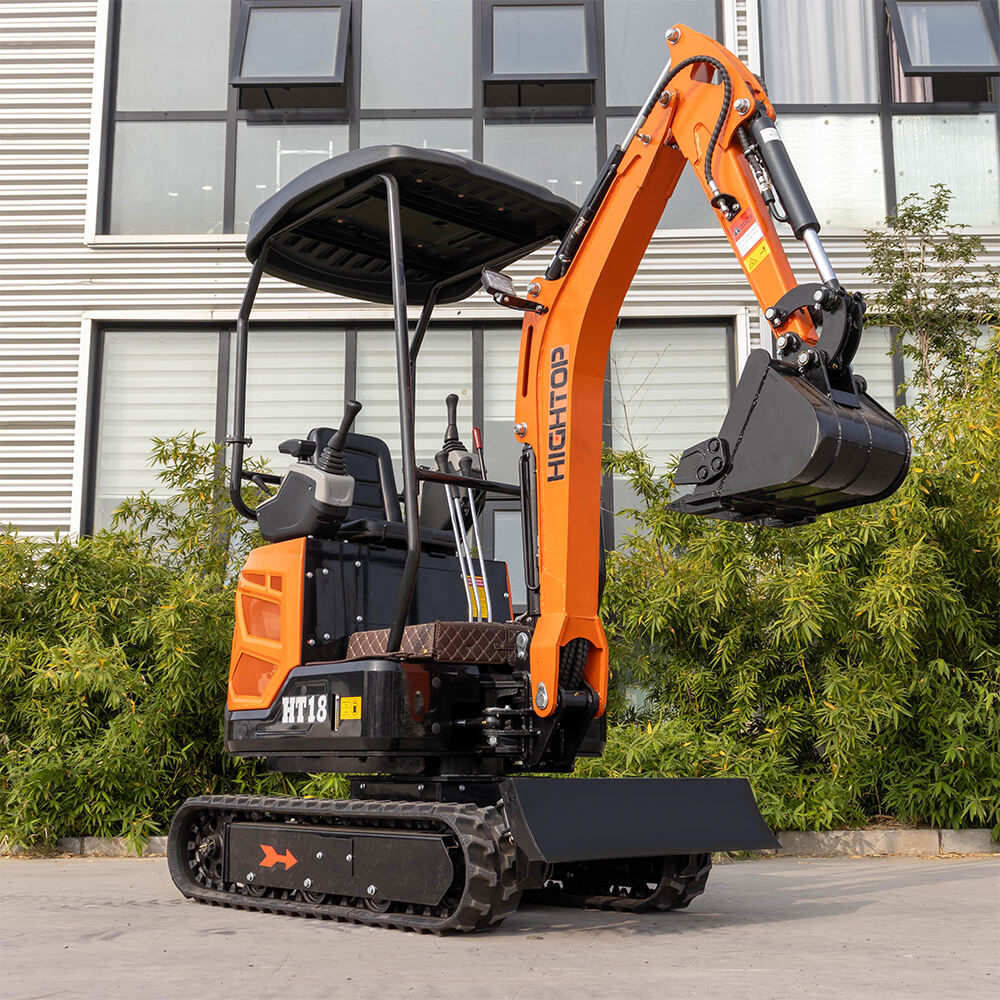

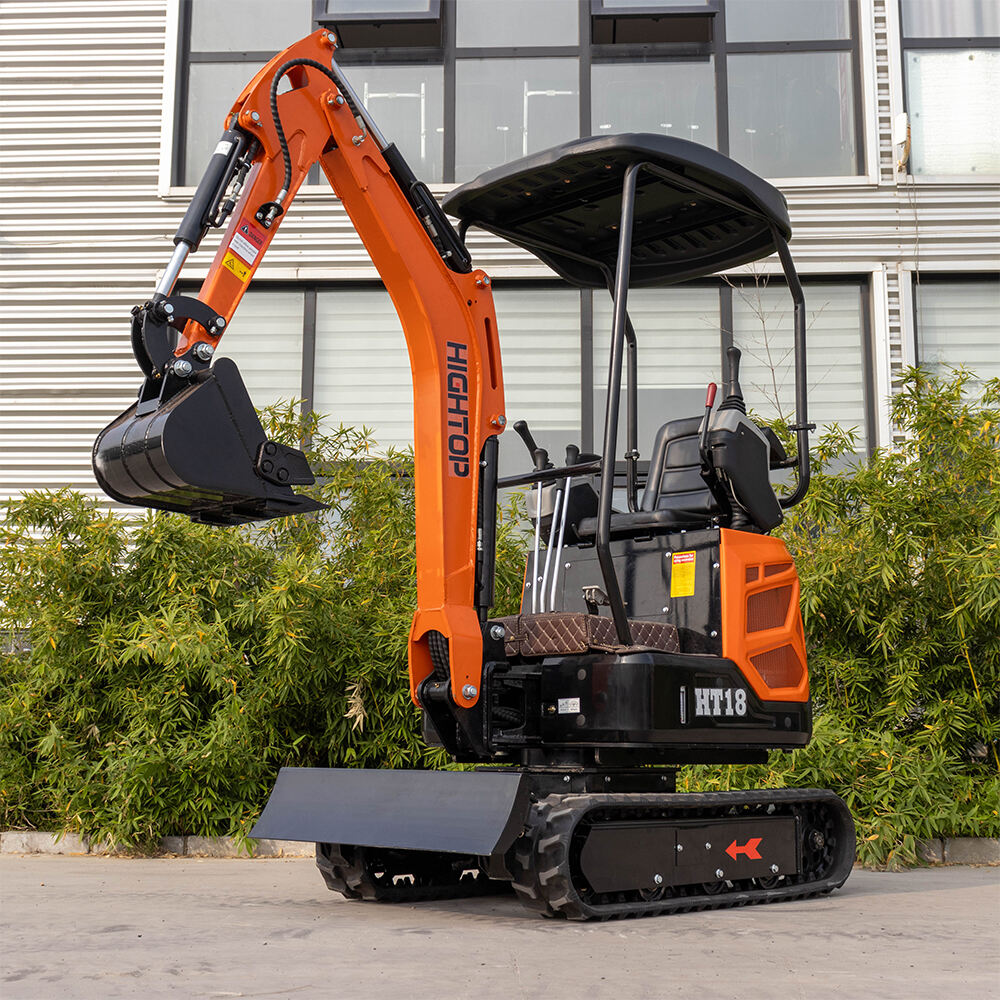

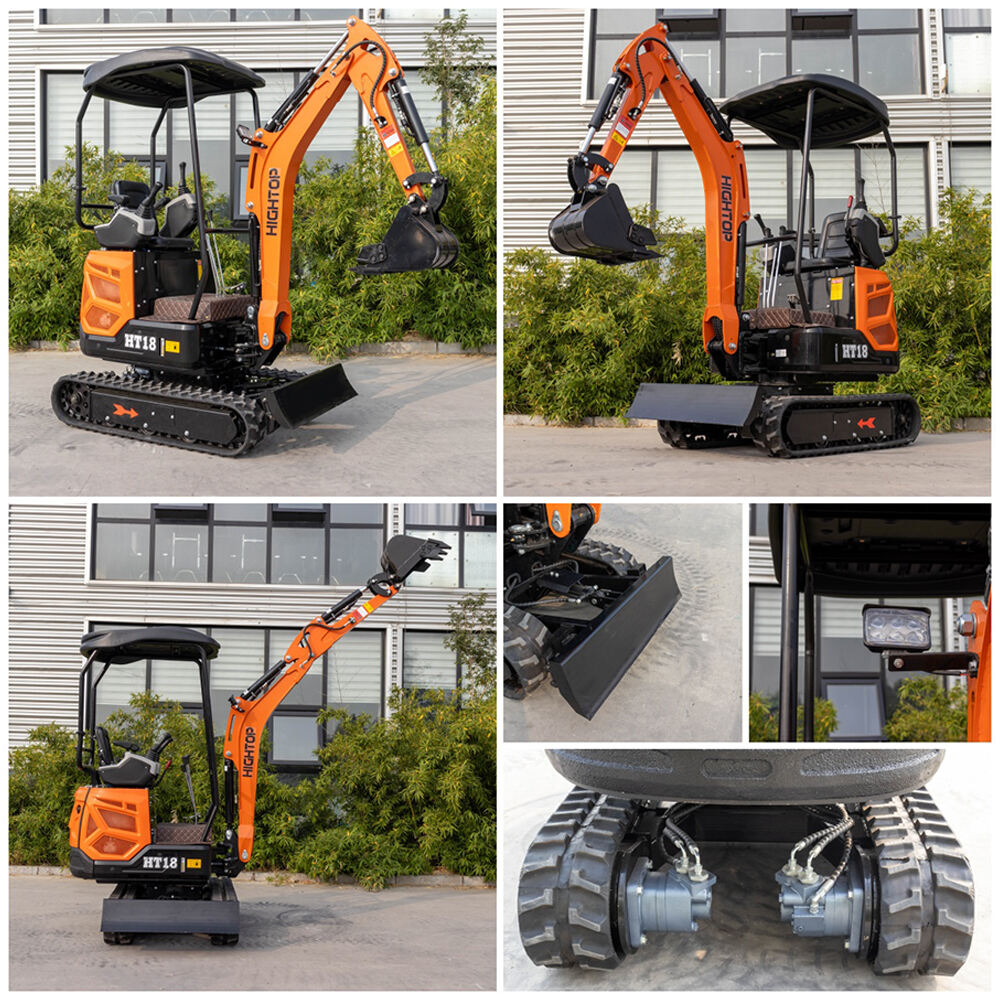

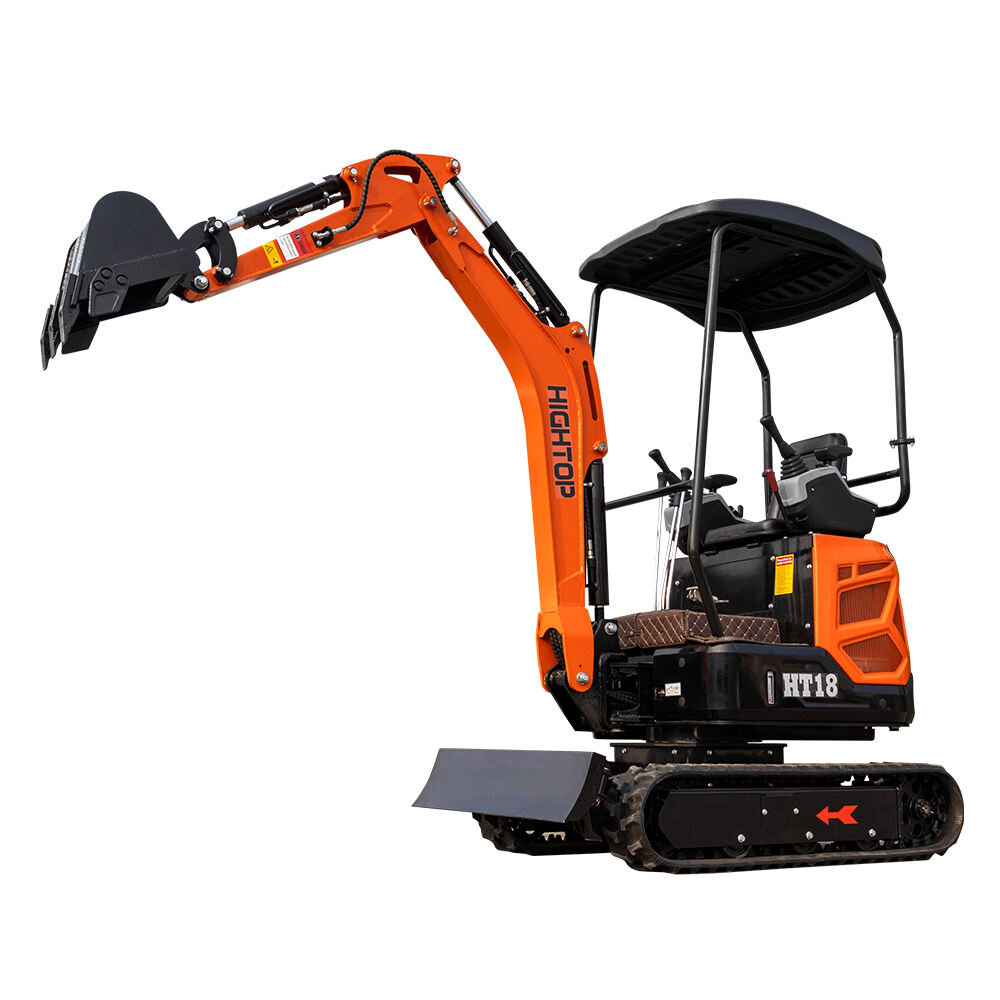

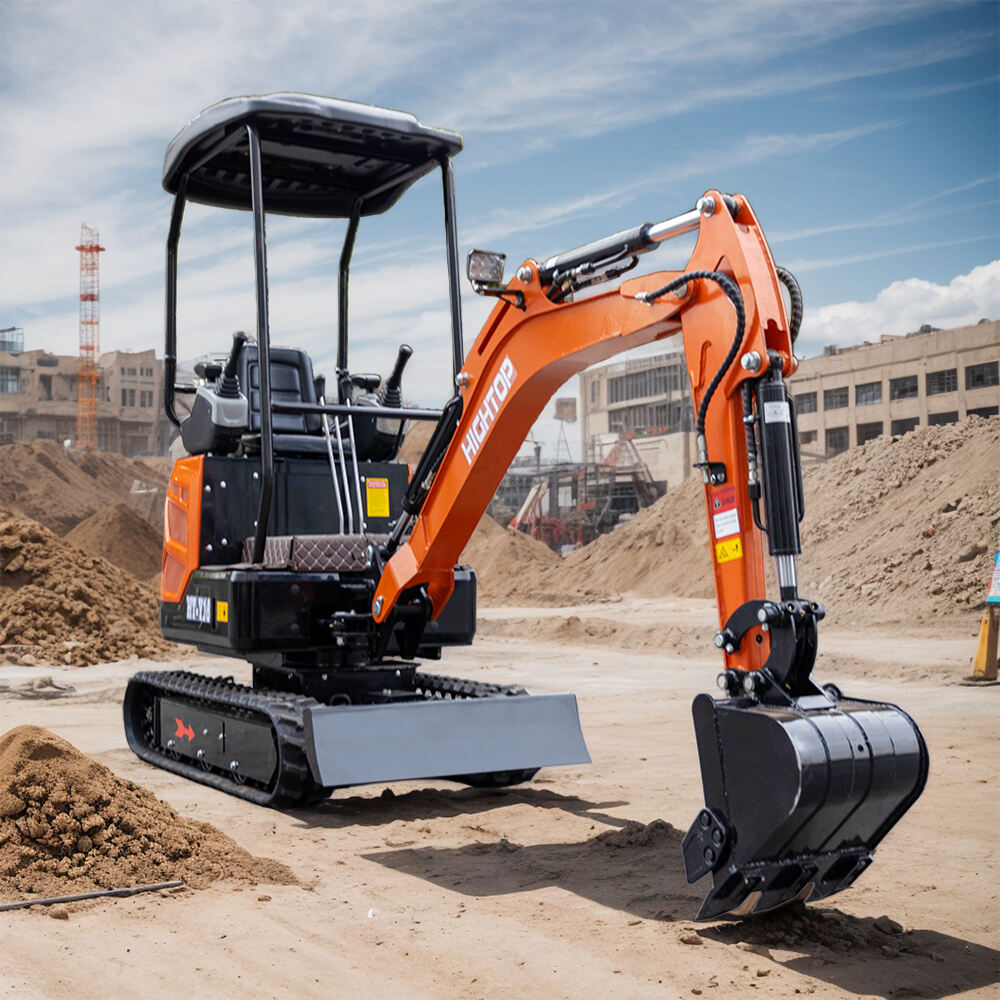

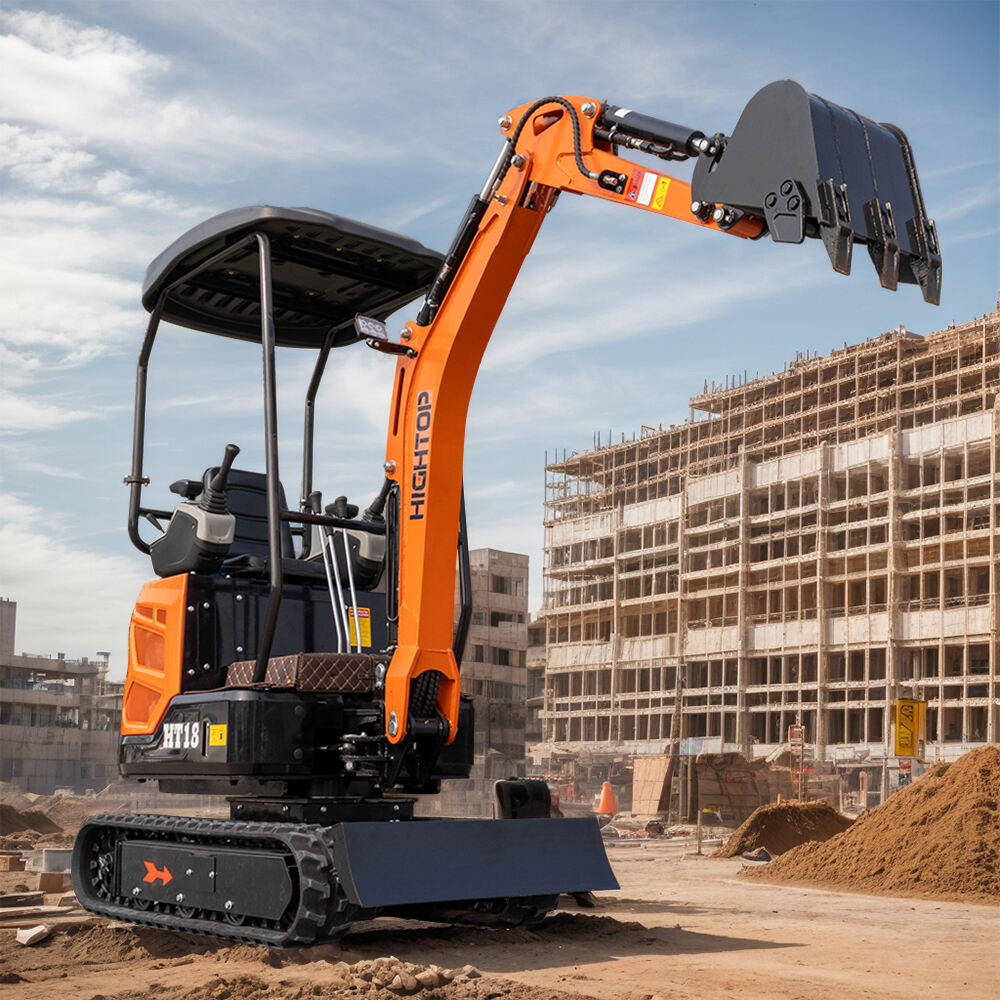

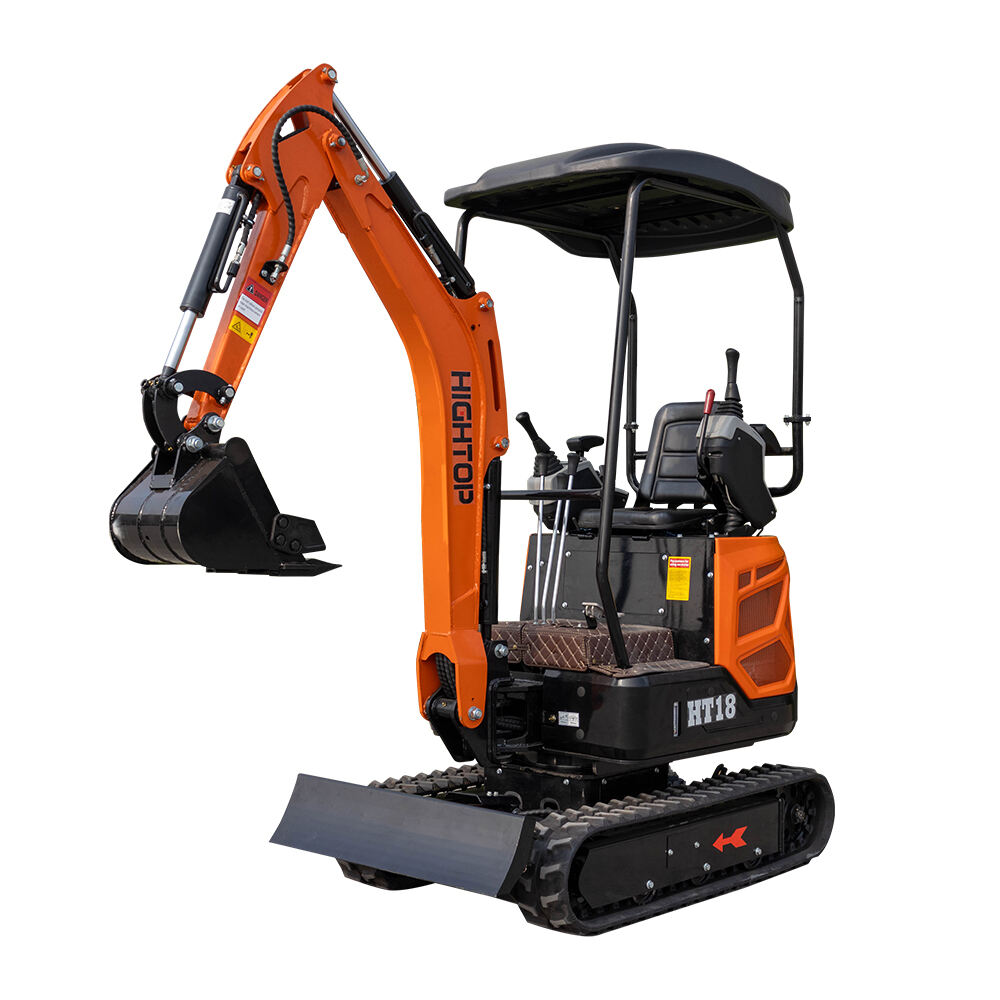

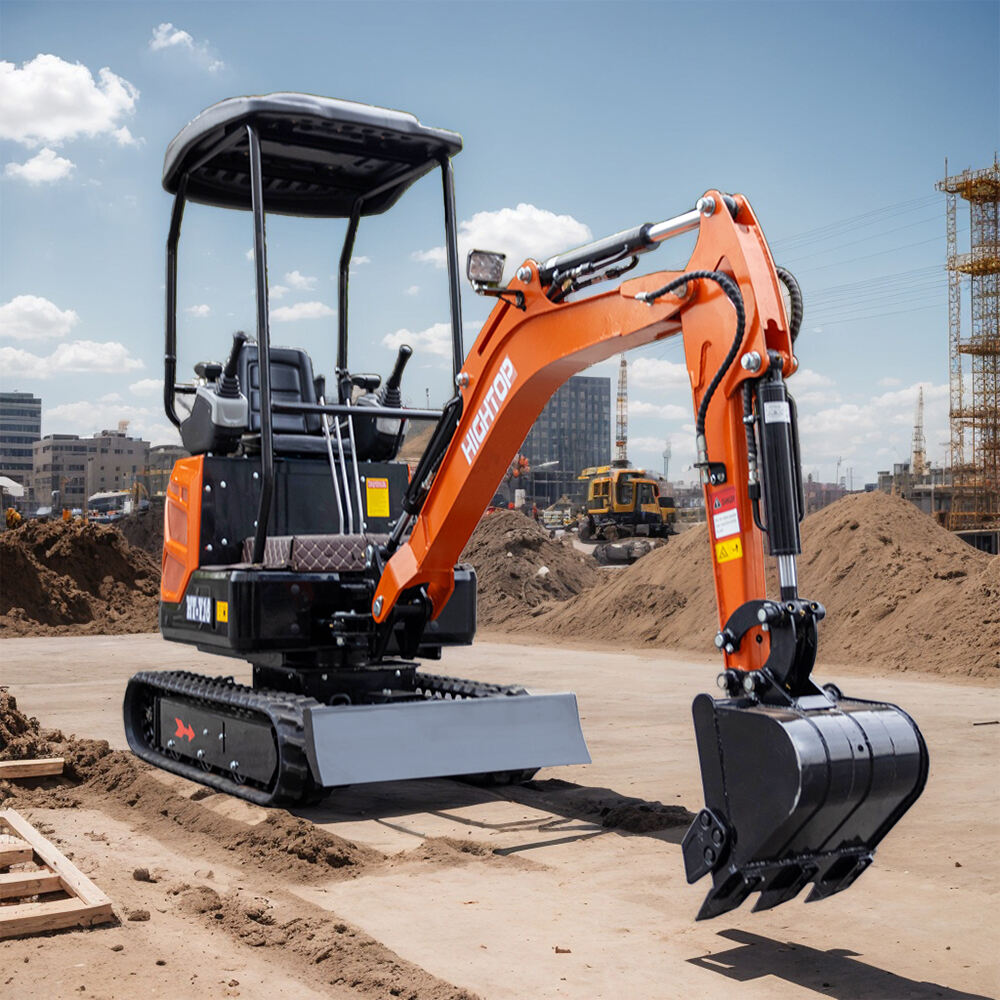

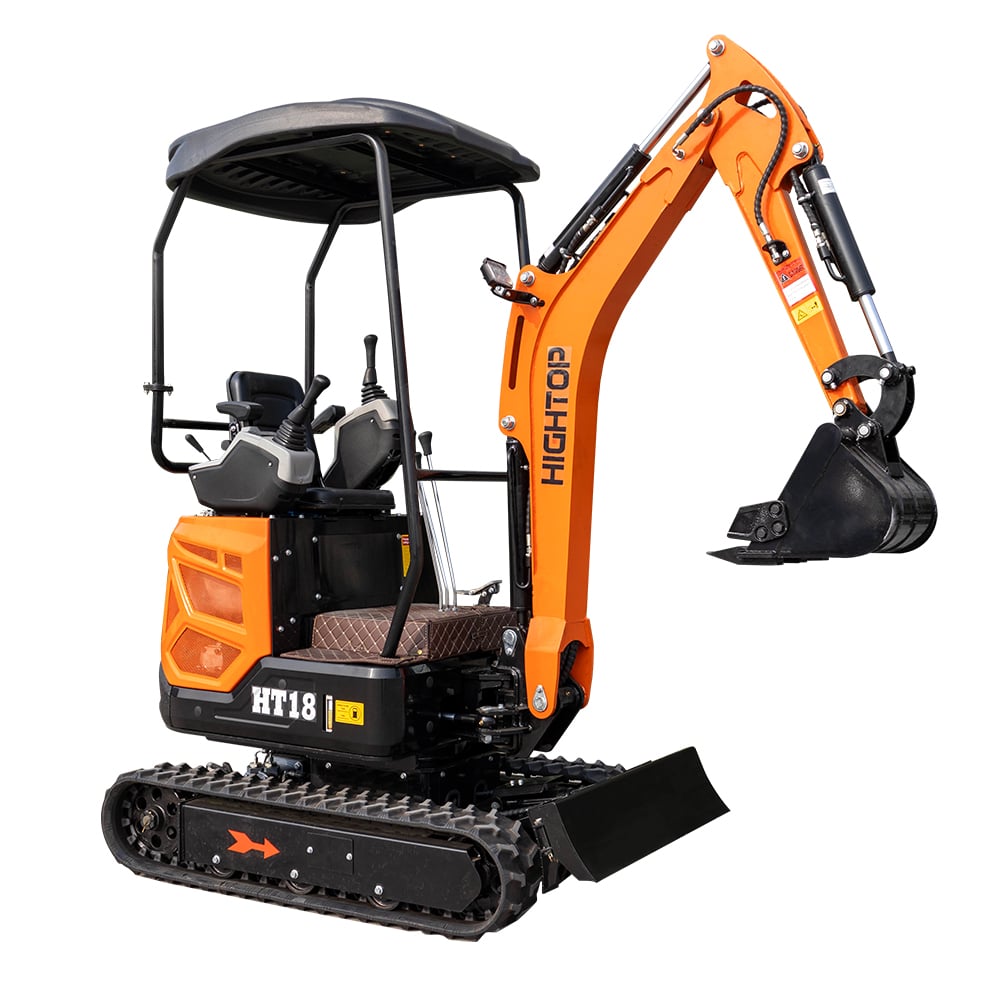

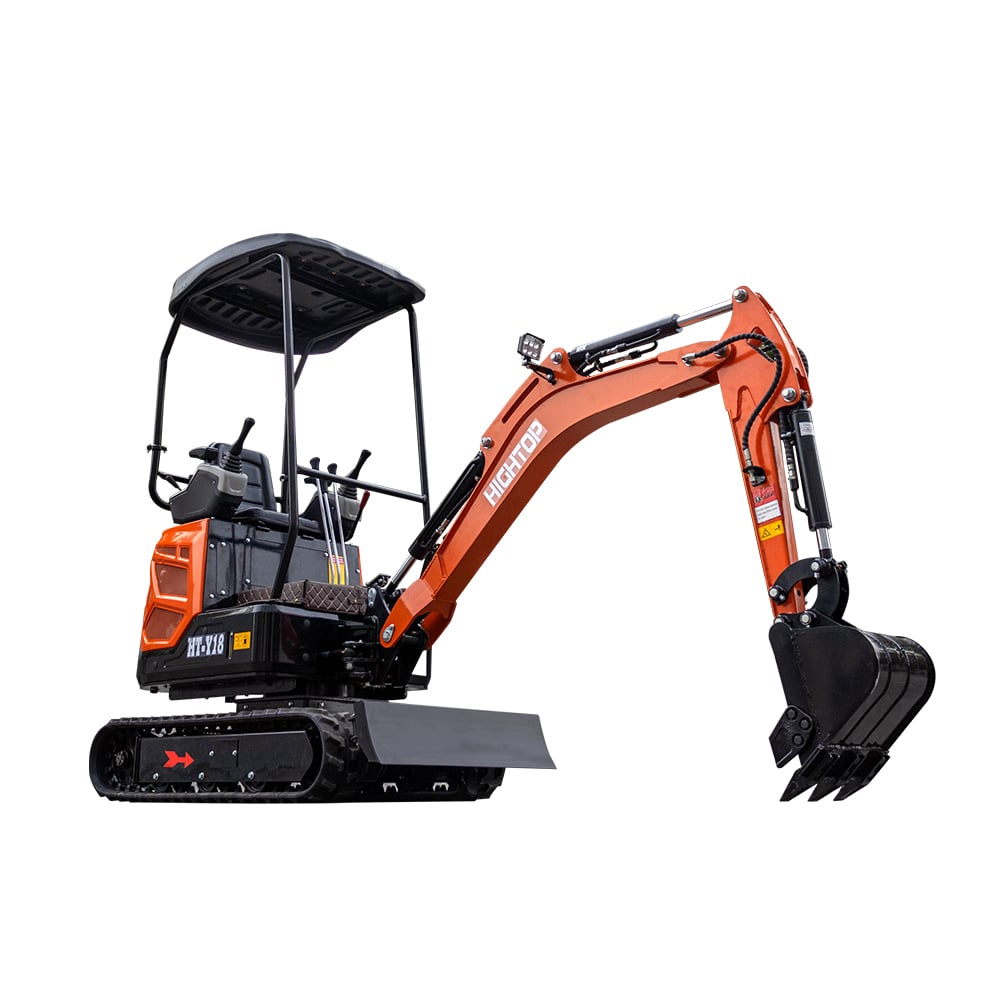

HT18Y 1.8ton Mini Excavator

HT18Y 1.8ton Mini Excavator is a compact and flexible 1.8-ton mini excavator, which is suitable for narrow space operation, such as municipal construction, landscaping, farmland renovation and so on. Equipped with high efficiency and energy saving engine, it has strong power and low fuel consumption; it adopts tail-less slewing design to minimize the risk of collision; and retractable chassis to adapt to different working environments. The hydraulic system provides fast response and precise operation, and it can be equipped with a variety of attachments (such as buckets and crushing hammers) to enhance the multifunctionality. The sturdy structure and convenient maintenance make it an ideal choice for small engineering work.



  • Overview
  • Related Products

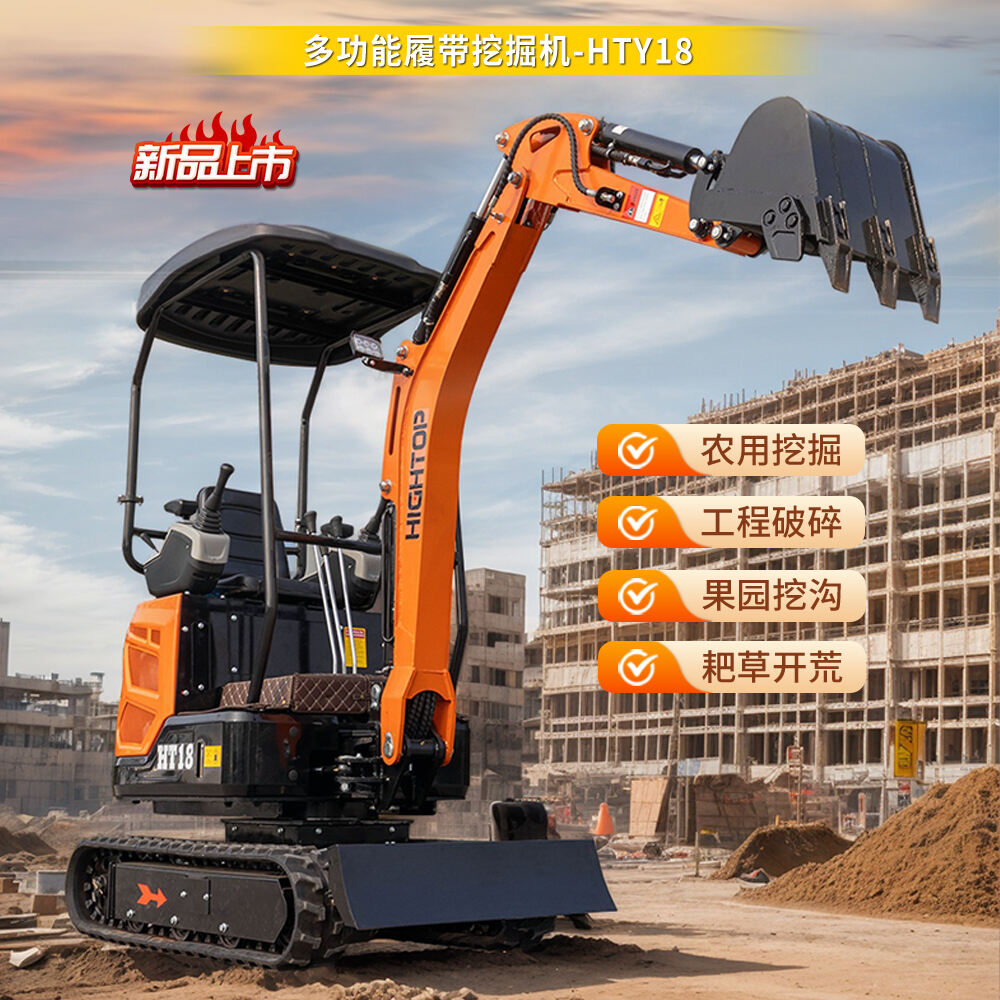

Agricultural excavation

Engineering crushing

Orchard trenching

Reclaim wasteland

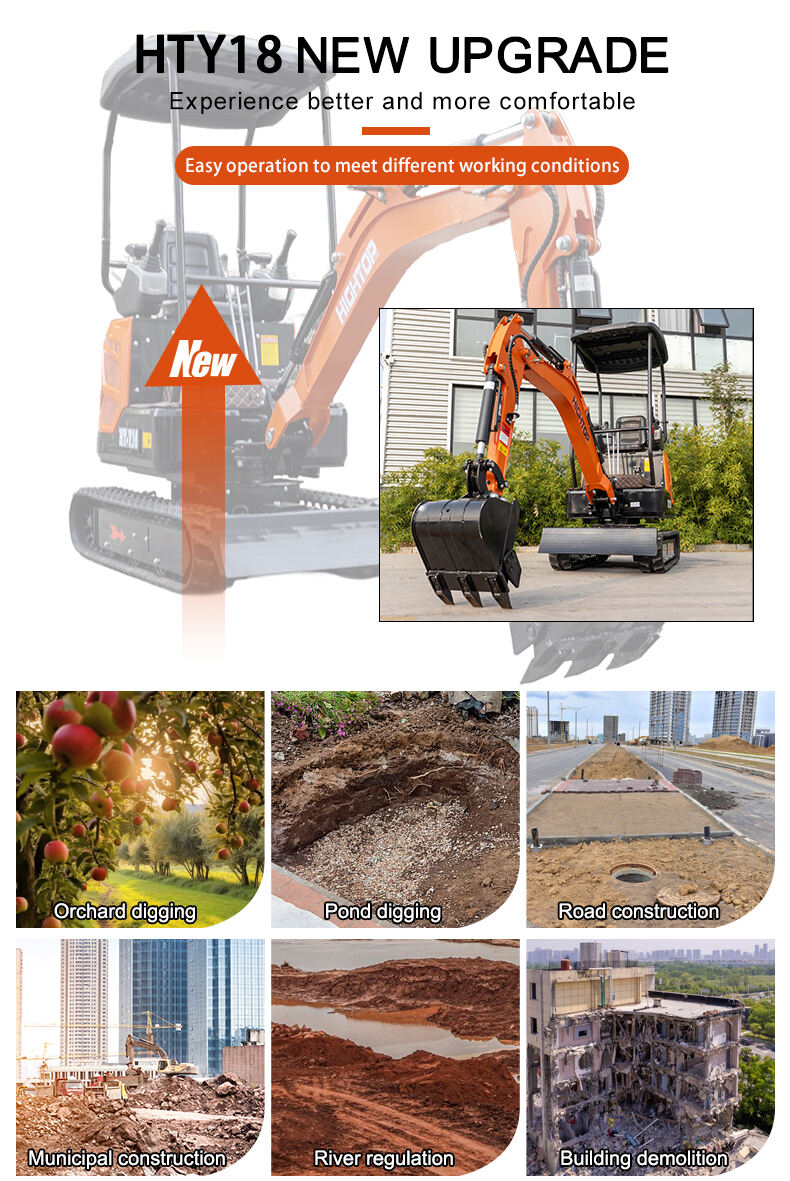

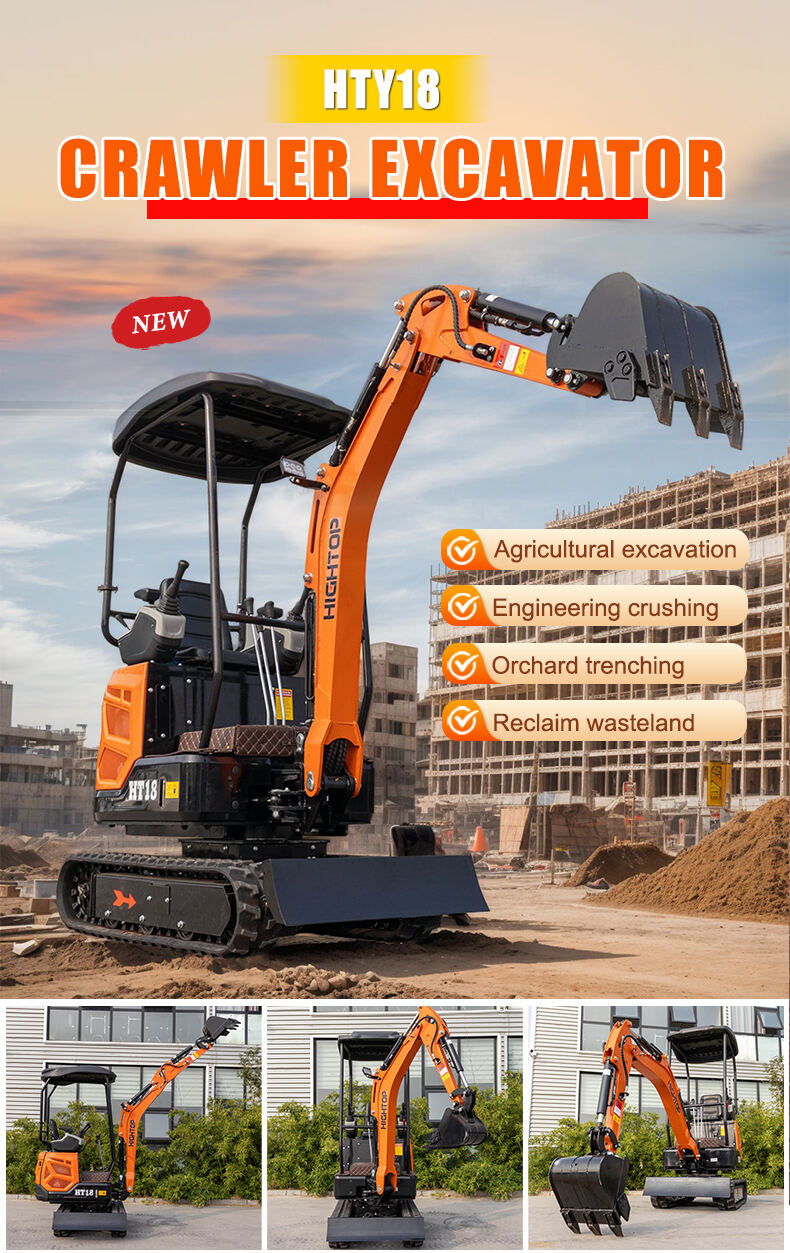

HTY18 NEW UPGRADE

Experience better and more comfortable

Easy operation to meet different working conditions

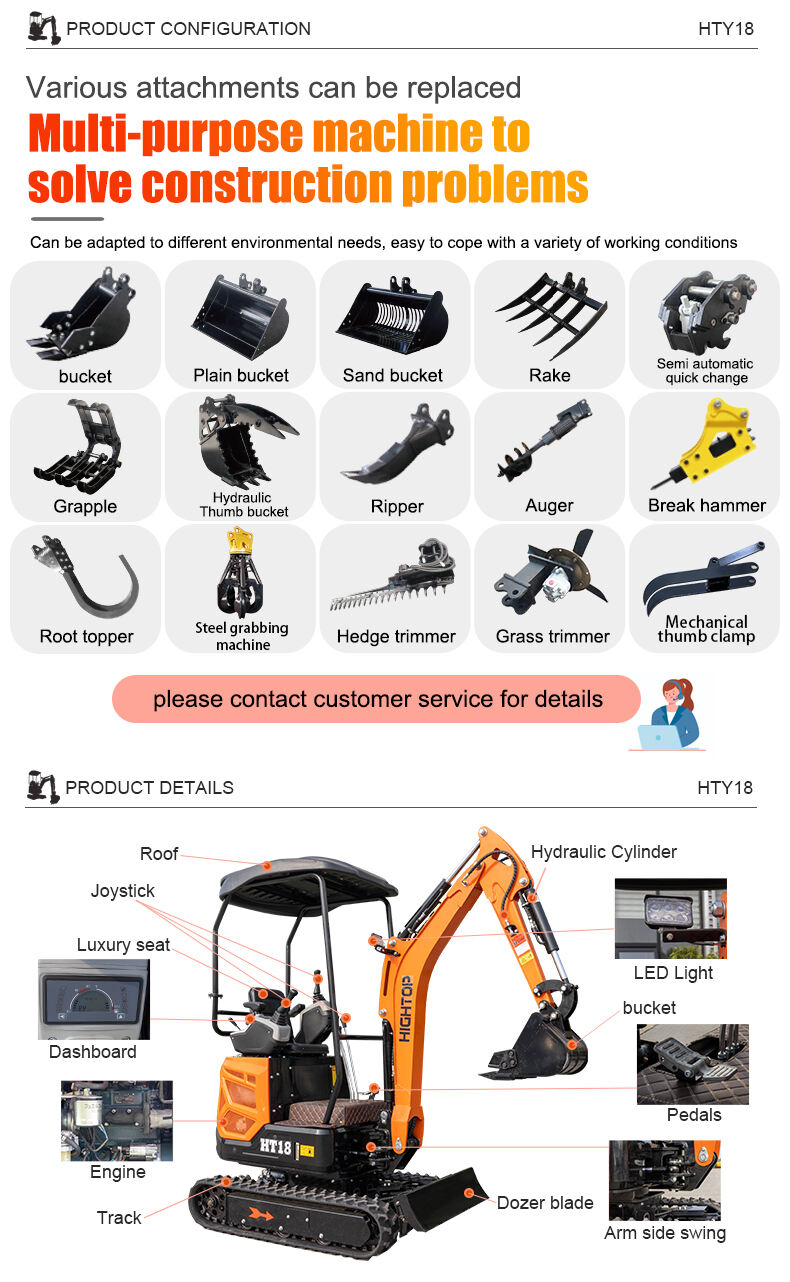

Various attachments can be replaced

Multi-purpose machine to solve construction problems

Can be adapted to different environmental needs, easy to cope with a variety of working conditions

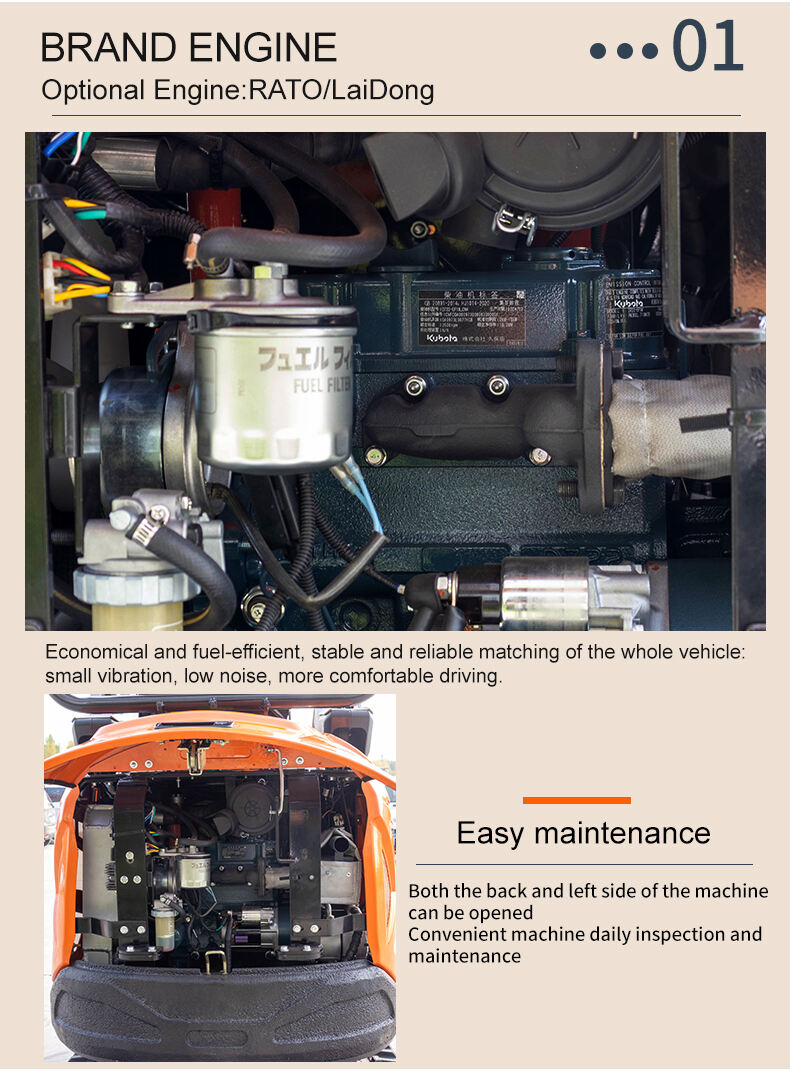

01-BRAND ENGINE

Optional Engine:RATO/LaiDong

Economical and fuel-efficient, stable and reliable matching of the whole vehicle:

small vibration, low noise, more comfortable driving.

Easy maintenance

Both the back and left side ofthe machine can be opened

convenient machine dailyinspection and maintenance

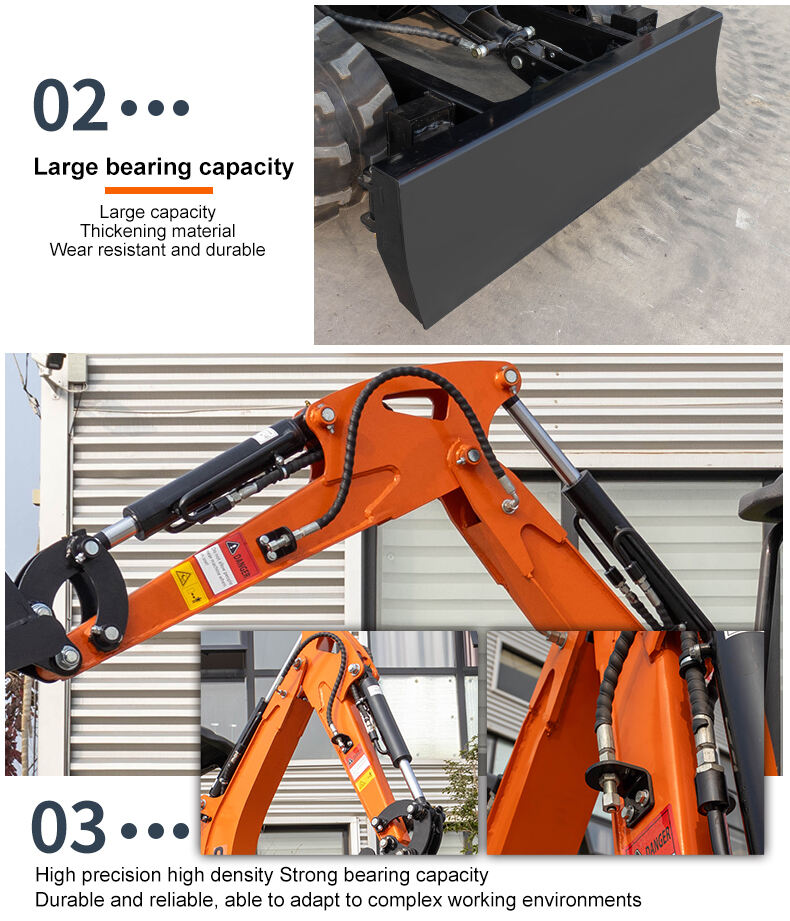

02-Large bearing capacity

Large capacity

Thickening material

Wear resistant and durable



03-High precision high density Strong bearing capacity

Durable and reliable, able to adapt to complex working environments.

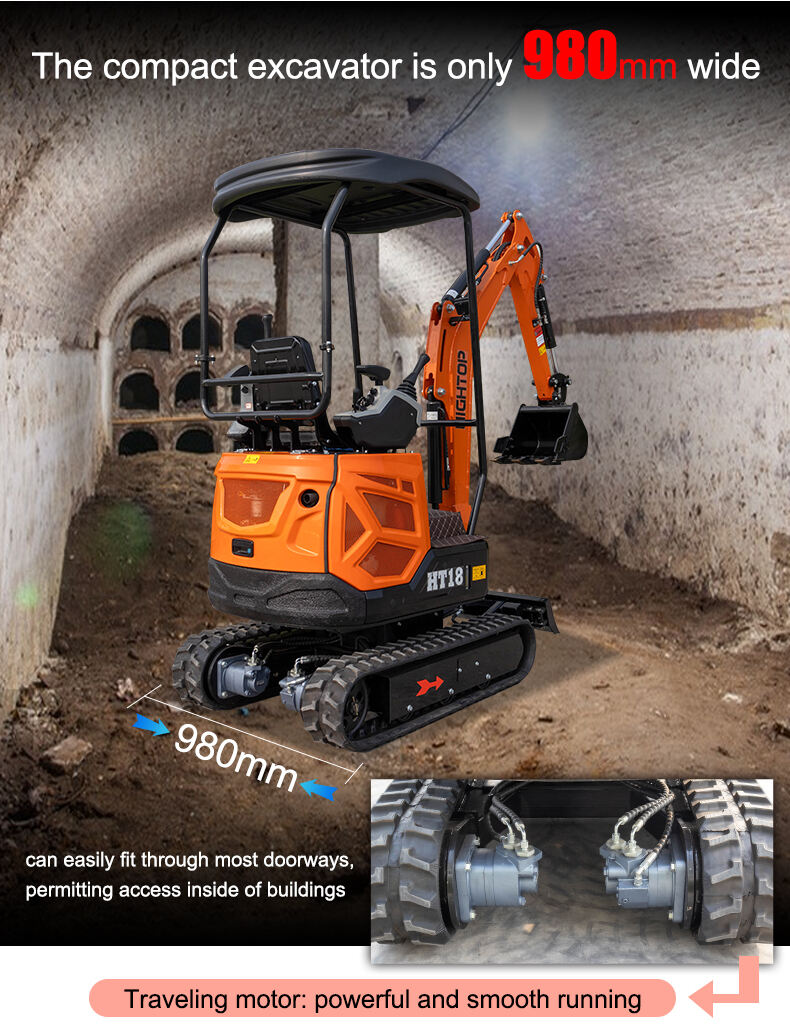

The compact excavator is only 980mm wide

can easily fit through most doorwayspermitting access inside of buildings

Traveling motor: powerful and smooth running

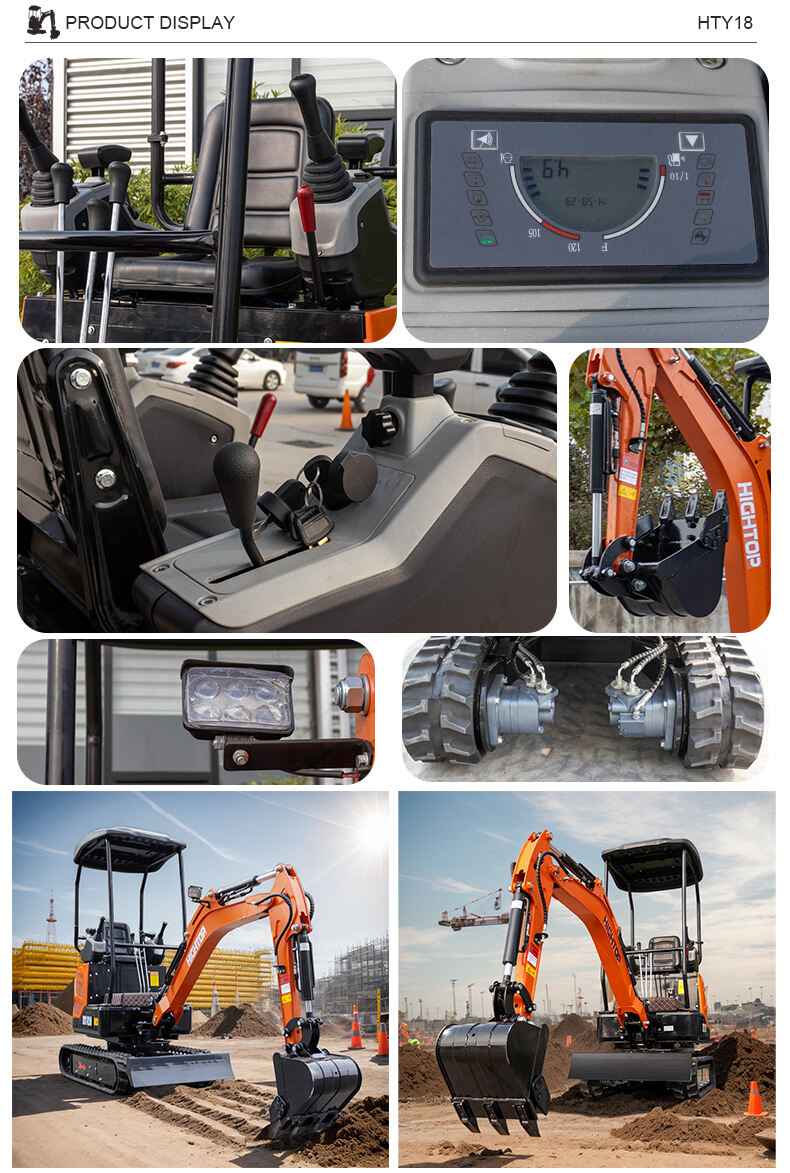

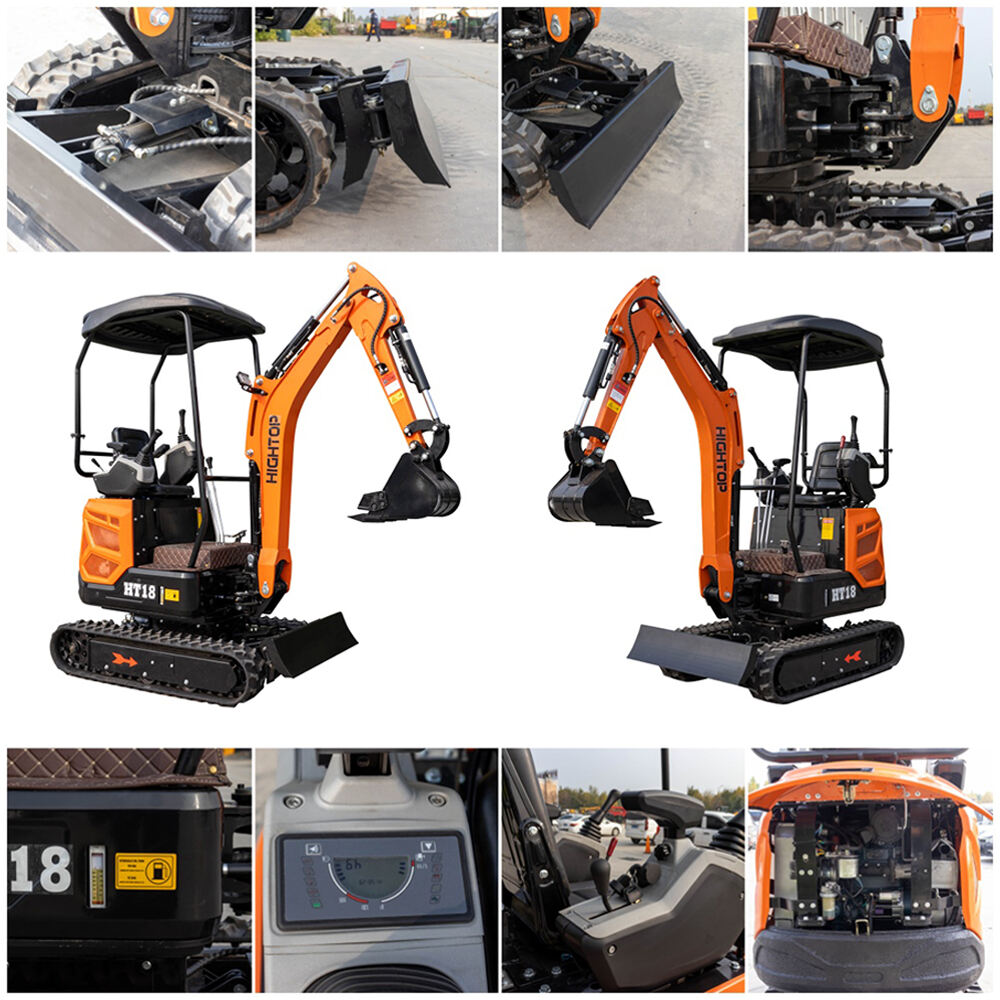

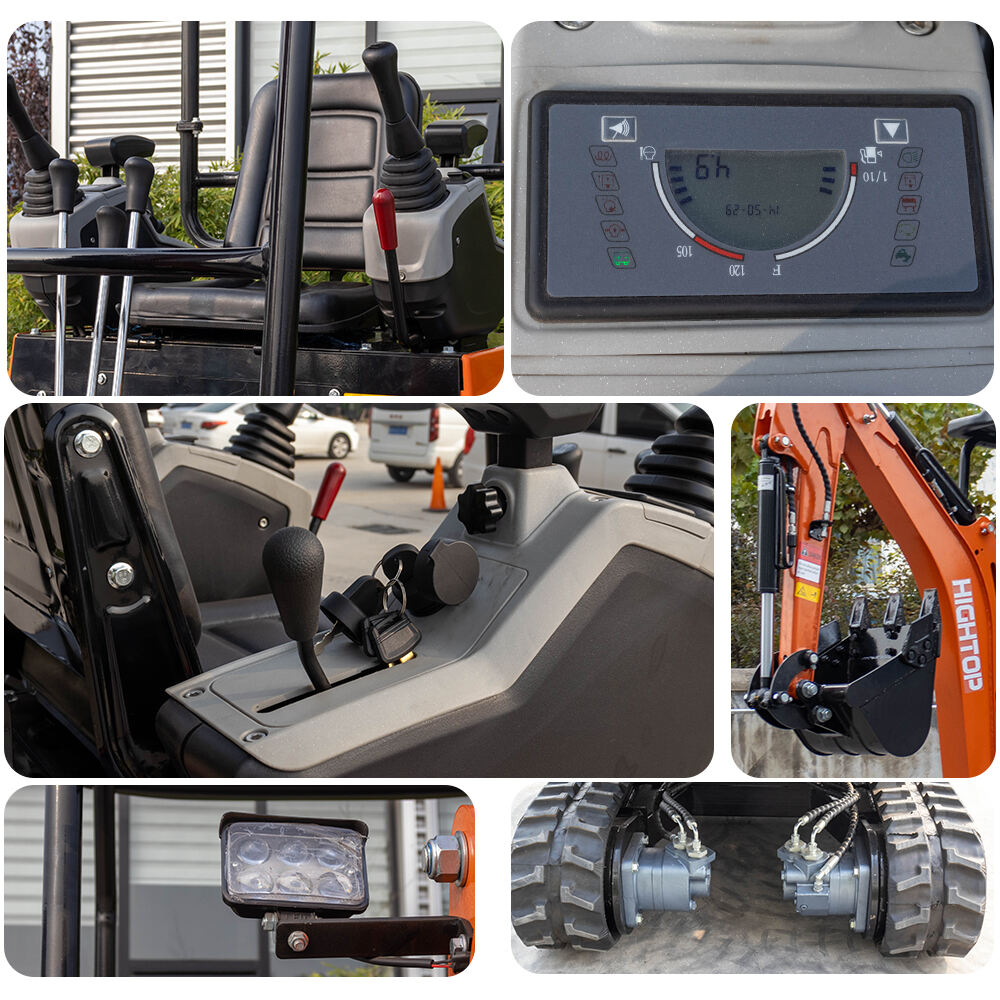

Product Details

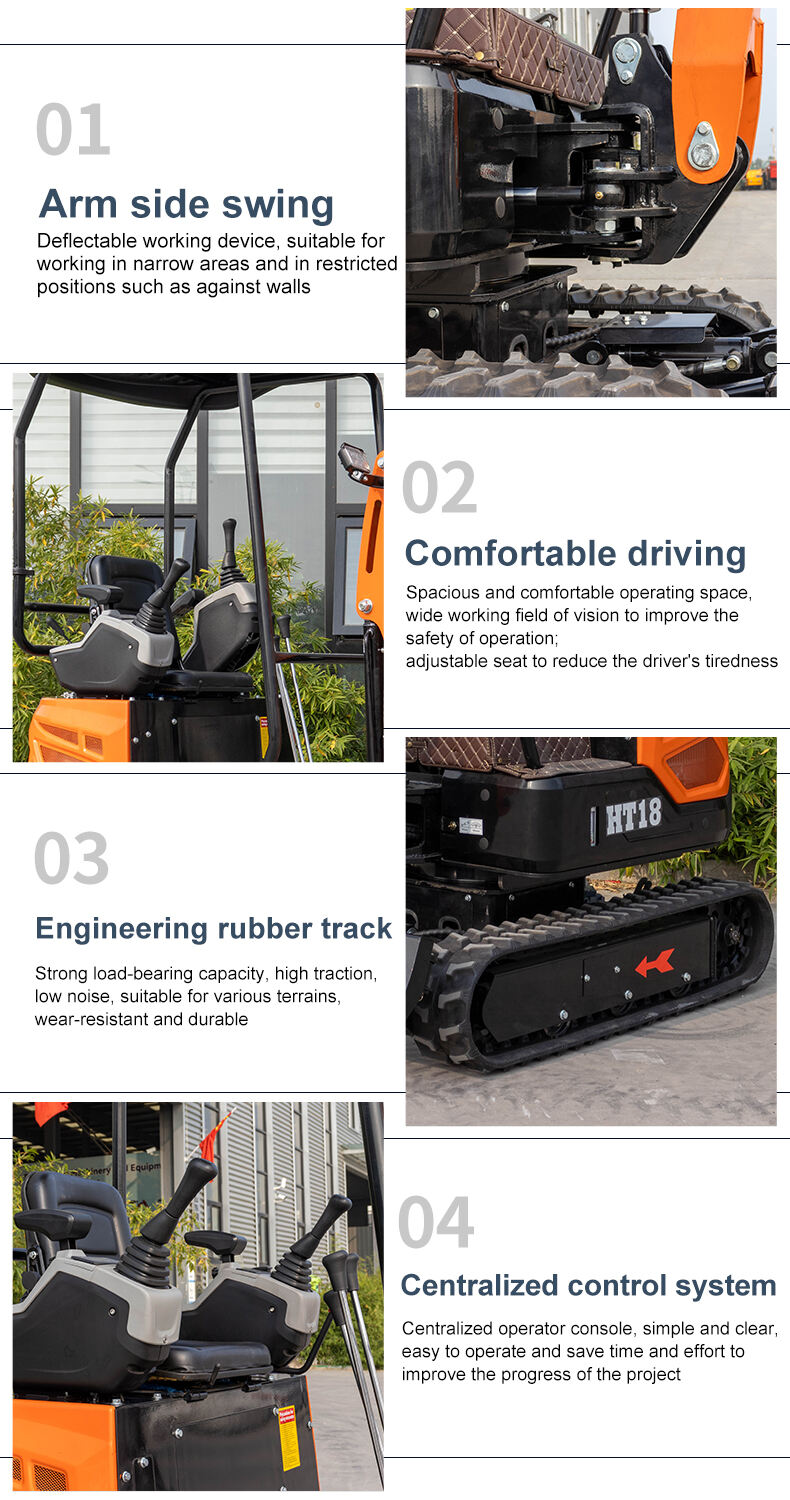

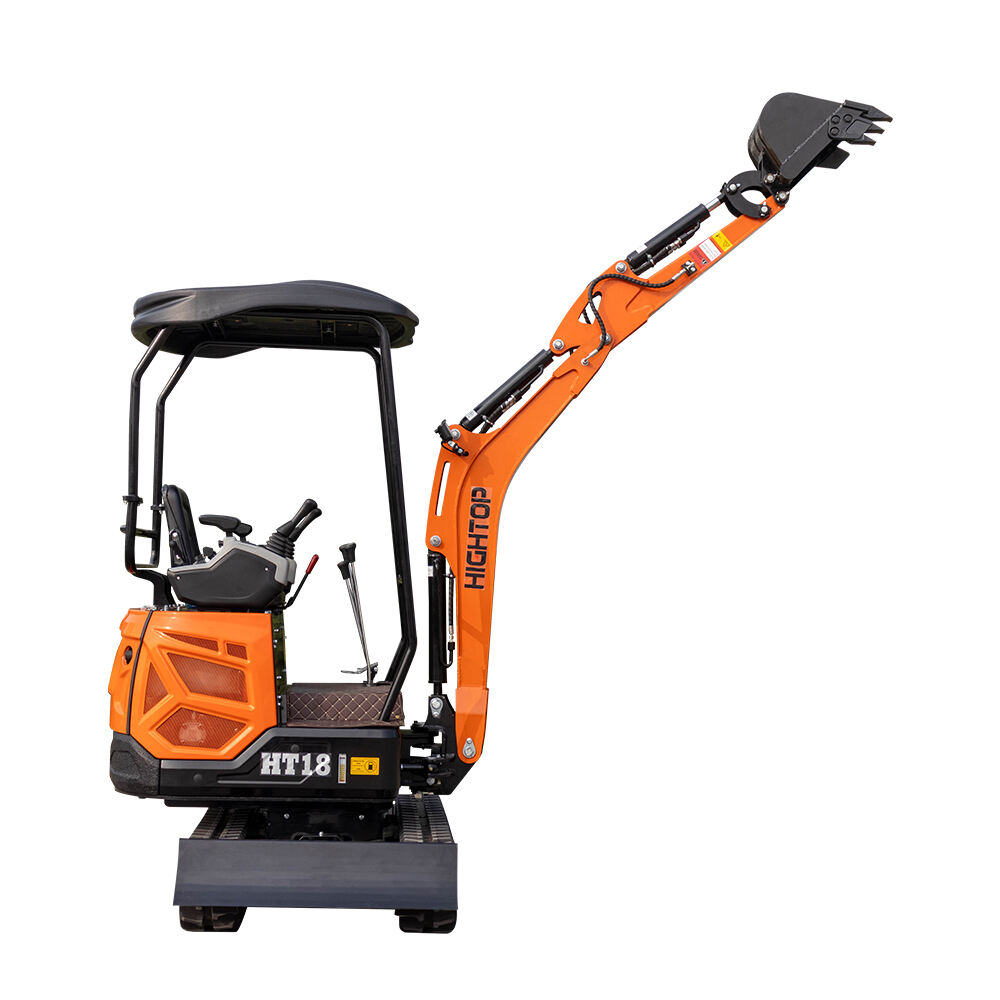

01-Arm side swing

Deflectable working device, suitable for working in narrow areas and in restricted positions such as against walls.



02-Comfortable driving

Spacious and comfortable operating space,wide working field of visIon to  improve the safety of operation;adjustable seat to reduce the drivers tiredness



03-Engineering rubber track

Strong load-bearing capacity, high traction,low noise,suitable for various terrains.wear-resistant and durable.



04-Centralized control system

Centralized operator console, simple and clear,easy to operate and save time and effort to improve the progress of the project.

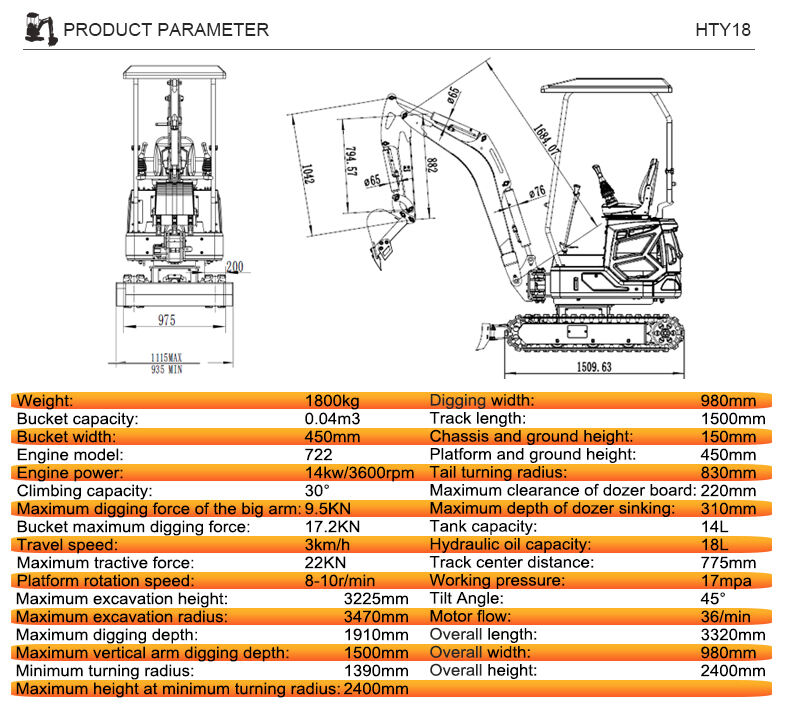

Parameter

Weight:1800kg

Bucket capacity: 0.04m3

Bucket width: 450mm

Engine model: 722

Engine power: 14kw/3600rpm

Climbing capacity 30°

Digging width: 980mm

Track length:1500mm

Chassis and ground height: 150mm

Platform and ground height: 450mm

Tail turning radius: 830mm

Maximum depth of dozer sinking: 310mm

Tank capacity: 14L

Hydraulic oil capacity: 18L

Track center distance: 775mm

Working pressure: 17mpa

Tilt Angle: 45°

Motor flow: 36/min

Overall length: 3320mm

Overall width: 980mm

Overall height: 2400mm

Maximum digging force of the big arm:9.5KN

Bucket maximum digging force:17.2KN

ravel speed:3km/h

Maximum tractive force.22KN

Platform rotation speed:8-10r/min

Maximum excavation height:3225mm

Maximum excavation radius:3470mm

Maximum digging depth:1910mm

Maximum vertical arm digging depth:1500mm

Minimum turning radius:1390mm

Maximum clearance of dozer board:220mm1 (1).jpg1 (2).jpg1 (3).jpg1 (4).jpg1 (5).jpg1 (6).jpg1 (7).jpg1 (8).jpg1 (9).jpg1 (10).jpg1 (11).jpg1 (12).jpg1 (13).jpg1 (14).jpg
