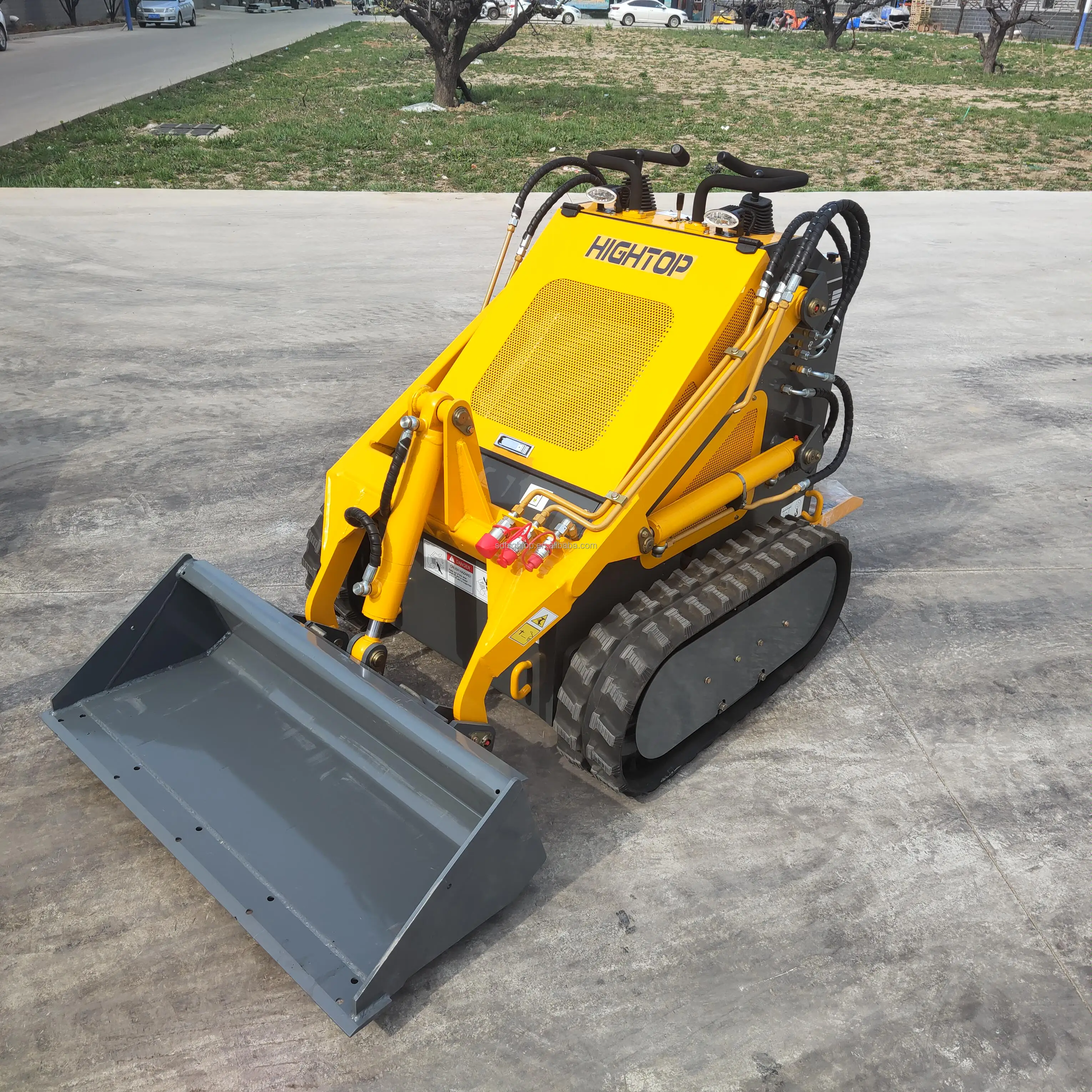

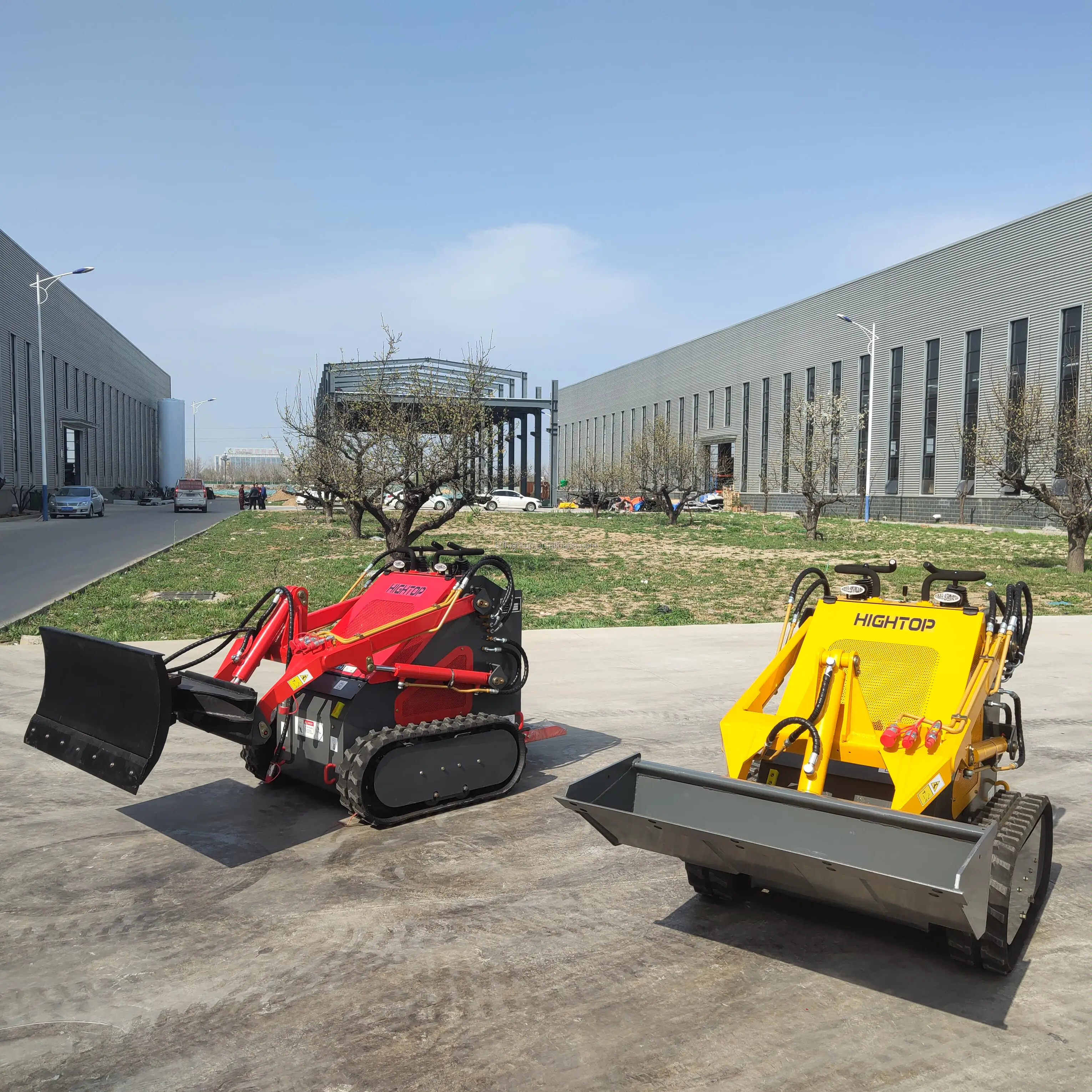

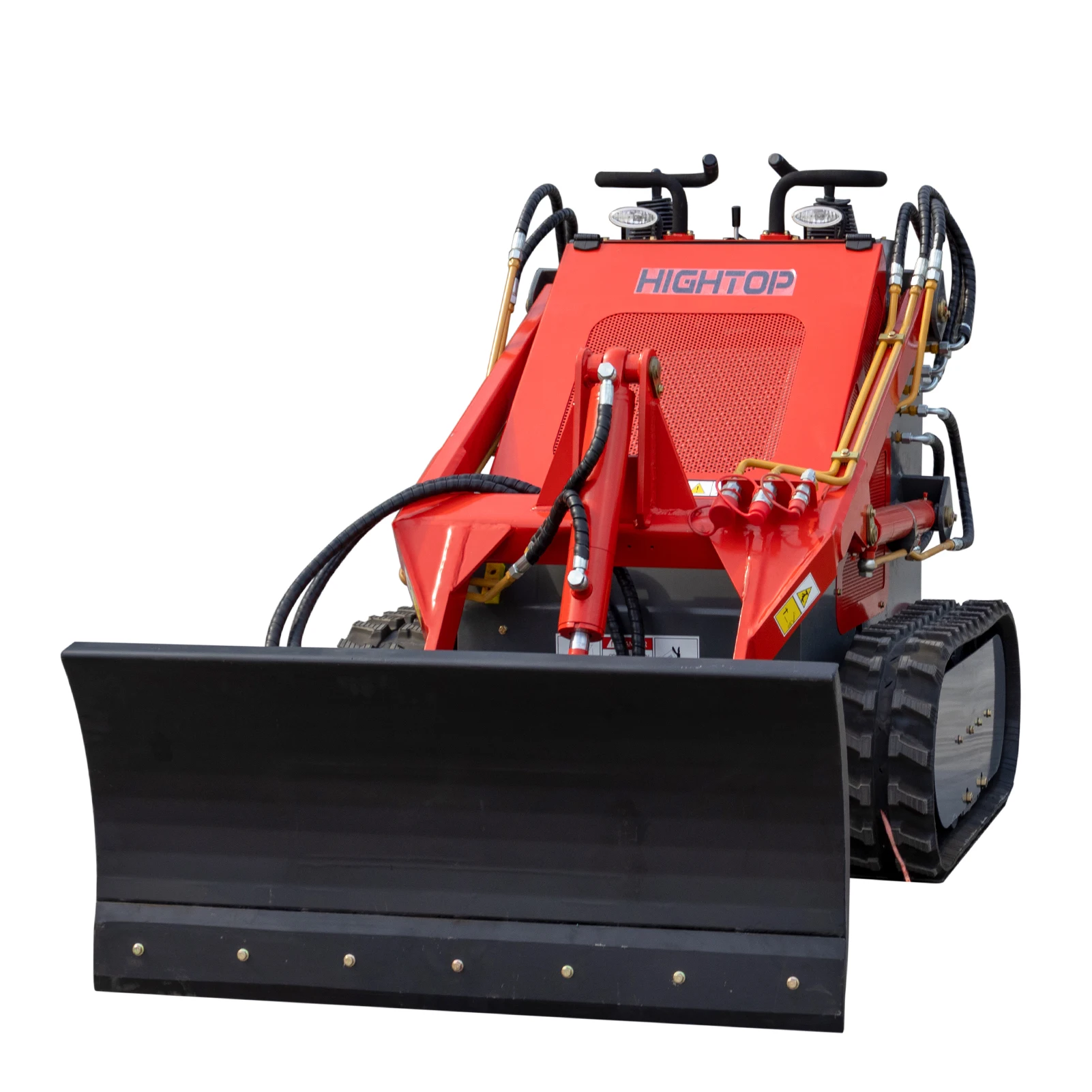

2025 NEW 4WD Skid Steer Loader – Compact Construction Champion! Versatile 4-in-1 Powerhouse for Digging, Lifting, Grading & All-Terrain Dominance

2025 NEW 4WD Skid Steer Loader – Compact Construction Champion! Versatile 4-in-1 Powerhouse for Digging, Lifting, Grading & All-Terrain Dominance

Overview
Related Products

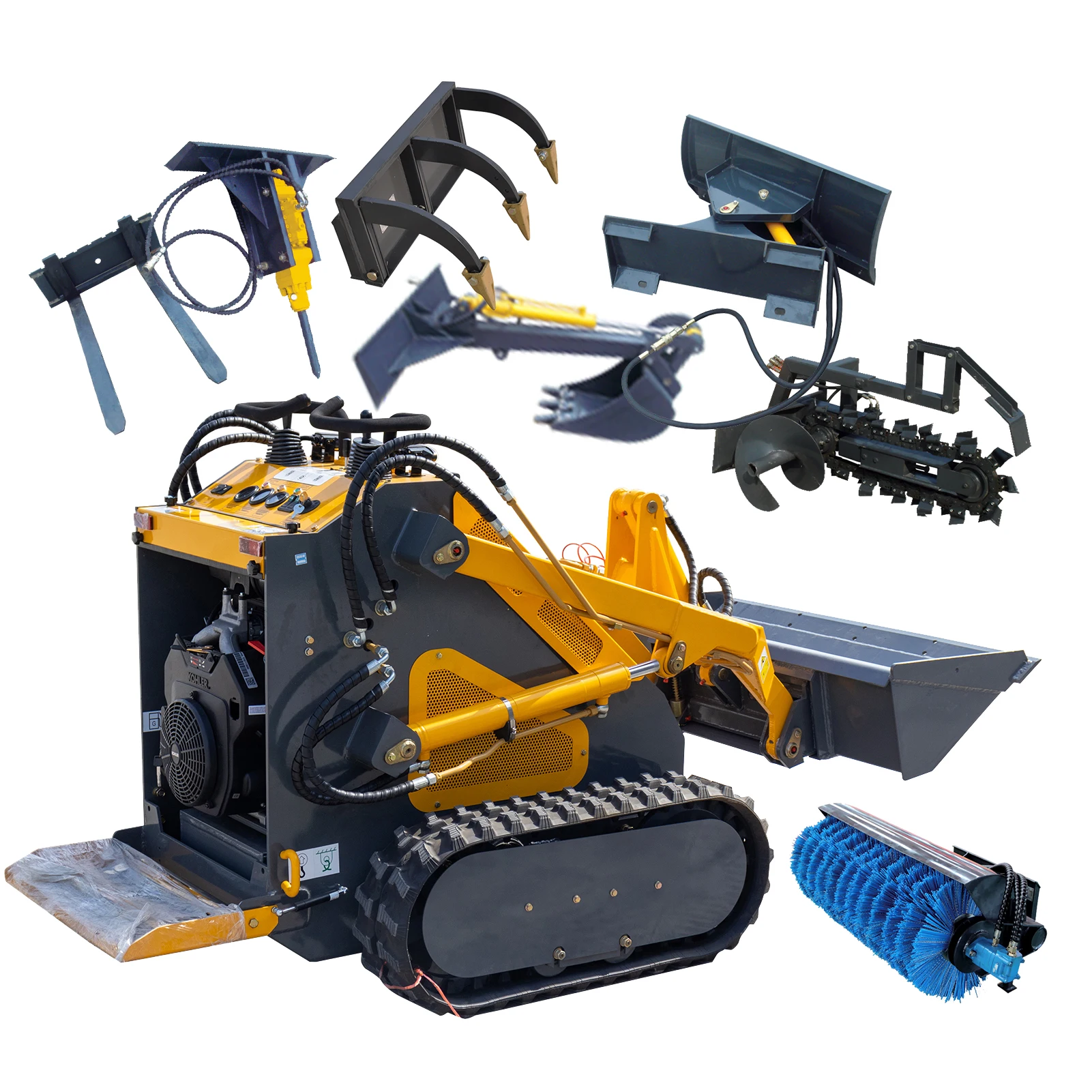

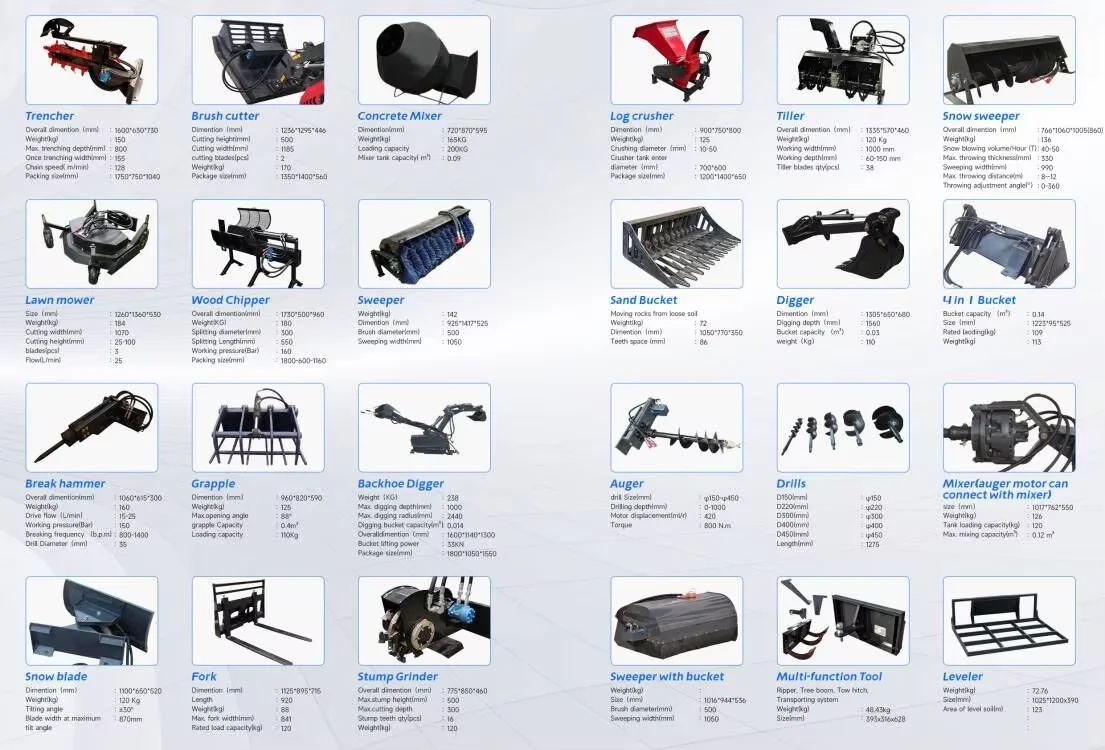

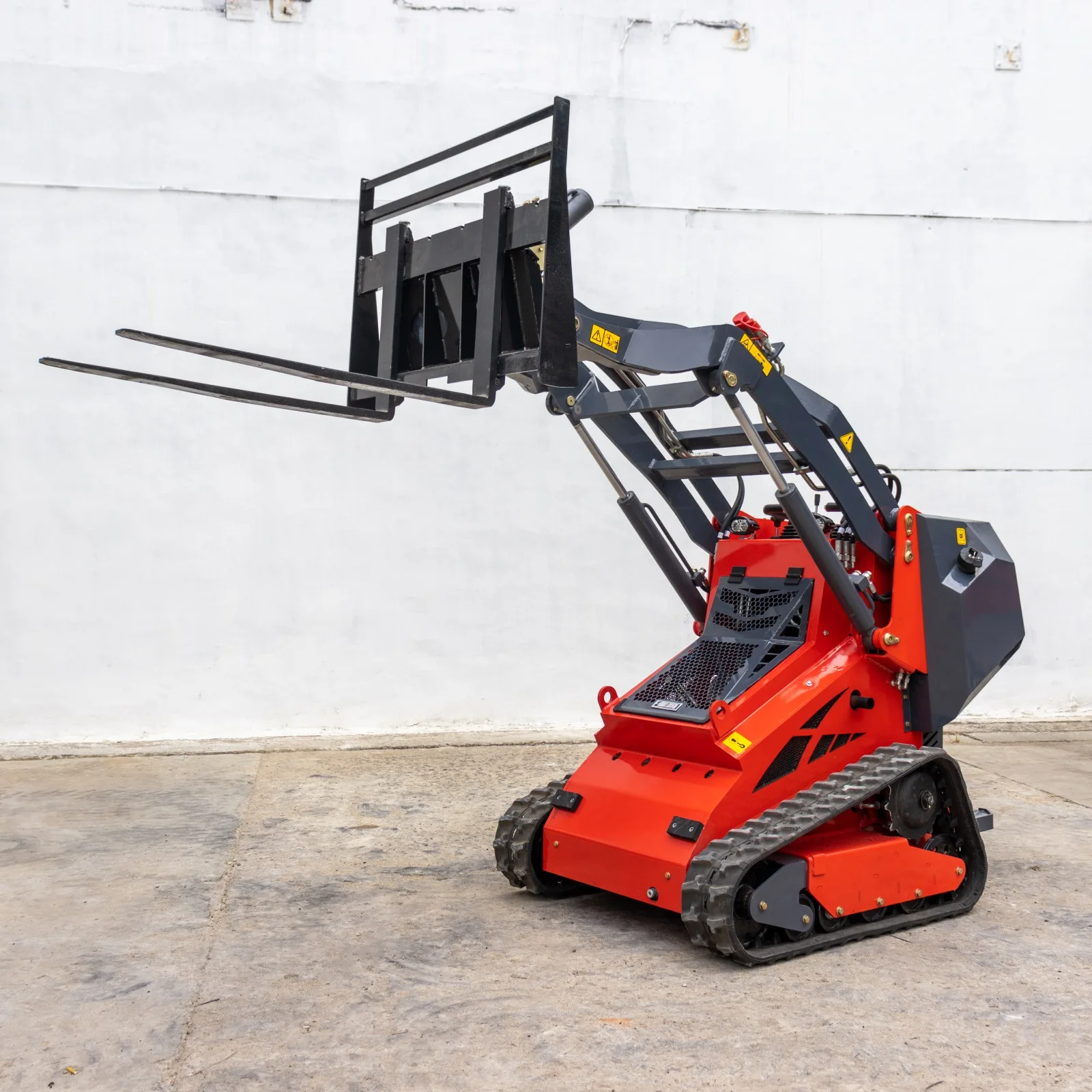

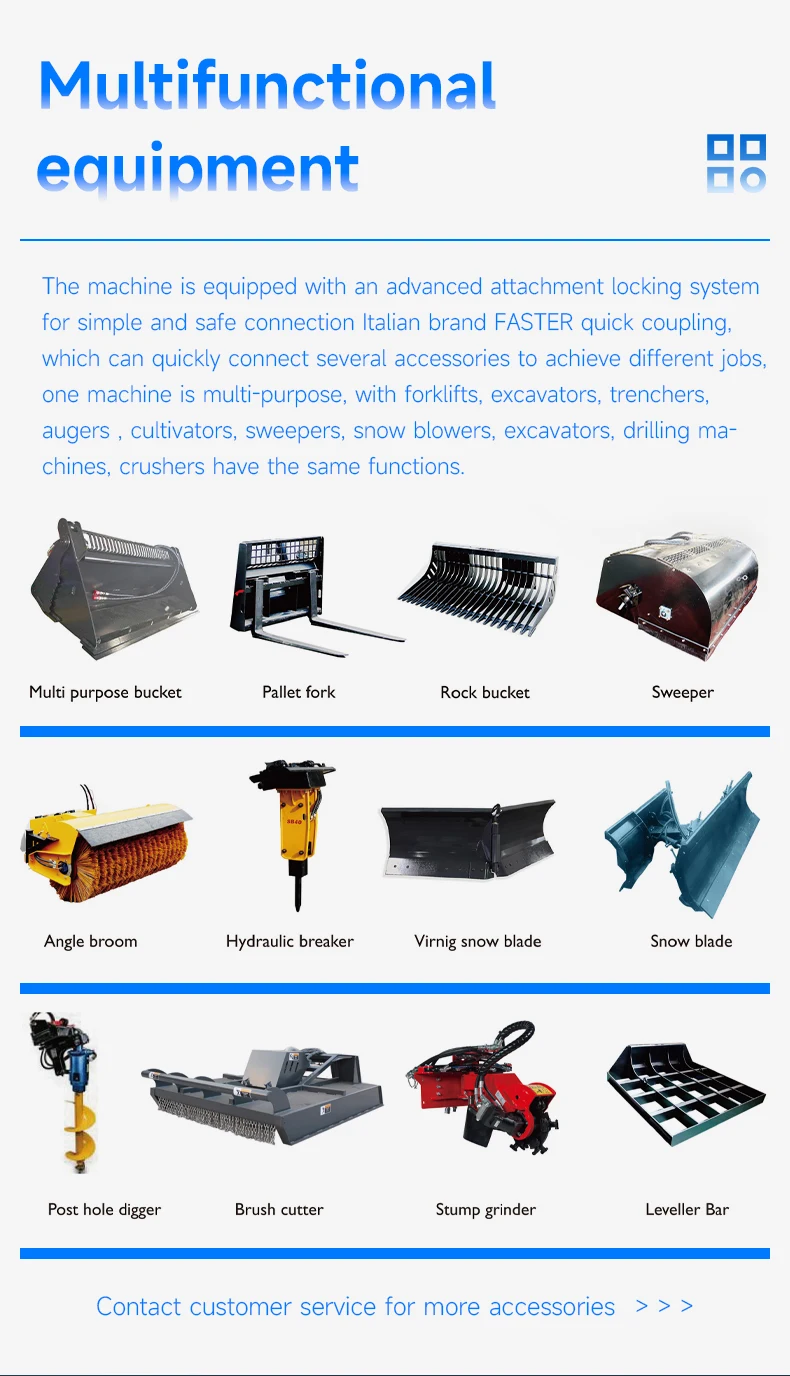

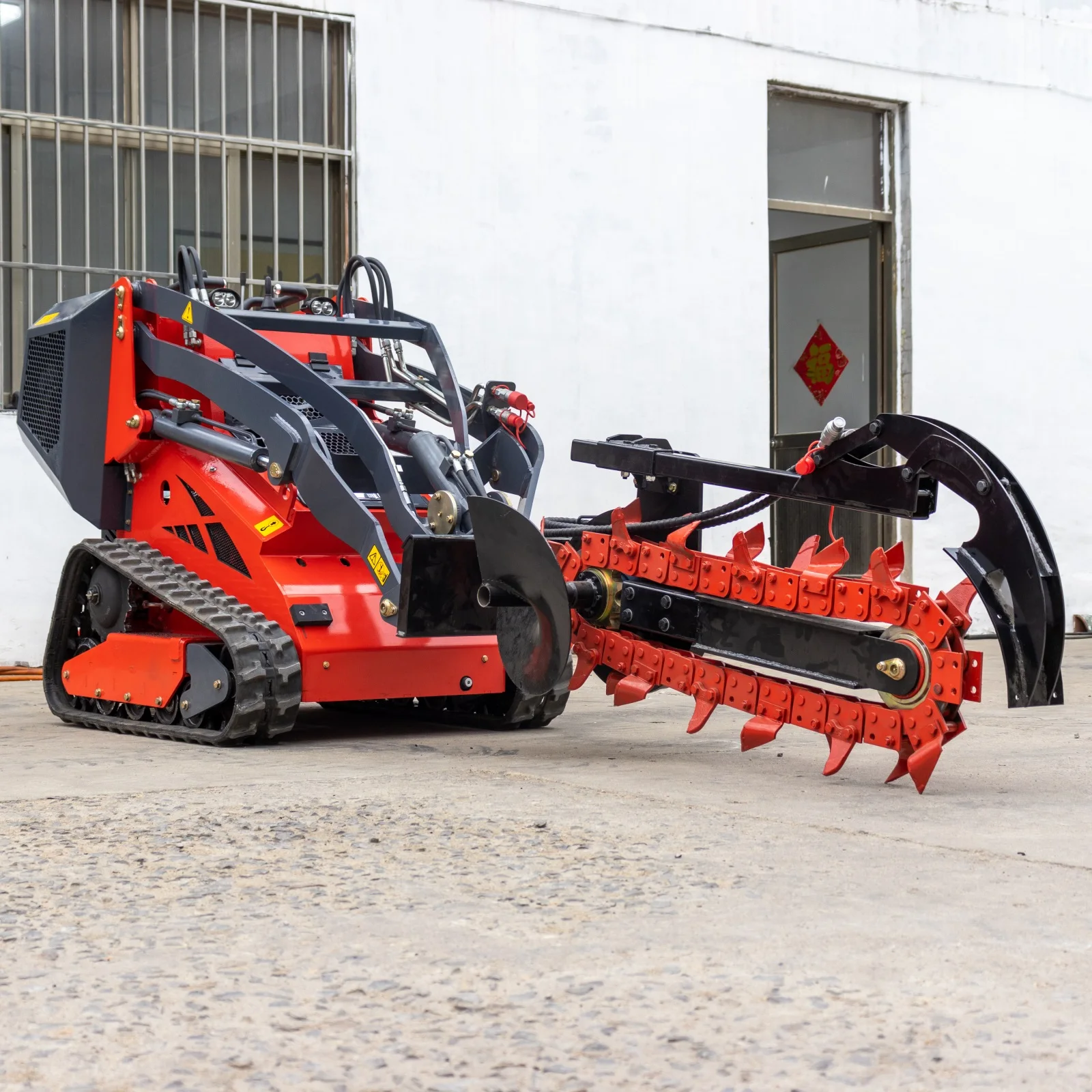

Conquer any job site with the 2025 NEW 4WD Skid Steer Loader—the compact construction champion engineered for ultimate versatility! Perfect for landscapers, contractors, or municipalities, this 4-in-1 powerhouse dominates digging trenches, lifting pallets, grading surfaces, and tackling mud, snow, or rocky terrain with ease. Its all-wheel-drive traction and zero-turn agility pivot effortlessly in tight spaces, while turbocharged torque and high-flow hydraulics power through abrasive materials. Swap buckets, forks, augers, or blades in seconds via quick-attach systems—no tools, no downtime. Rugged steel frames, reinforced joints, and all-weather cabs ensure 24/7 durability (rain, dust, or -20°F cold). Slash fuel costs with eco-mode engines and boost ROI with factory-direct pricing. Your go-anywhere, do-anything job site titan.

Product Description

Main Features

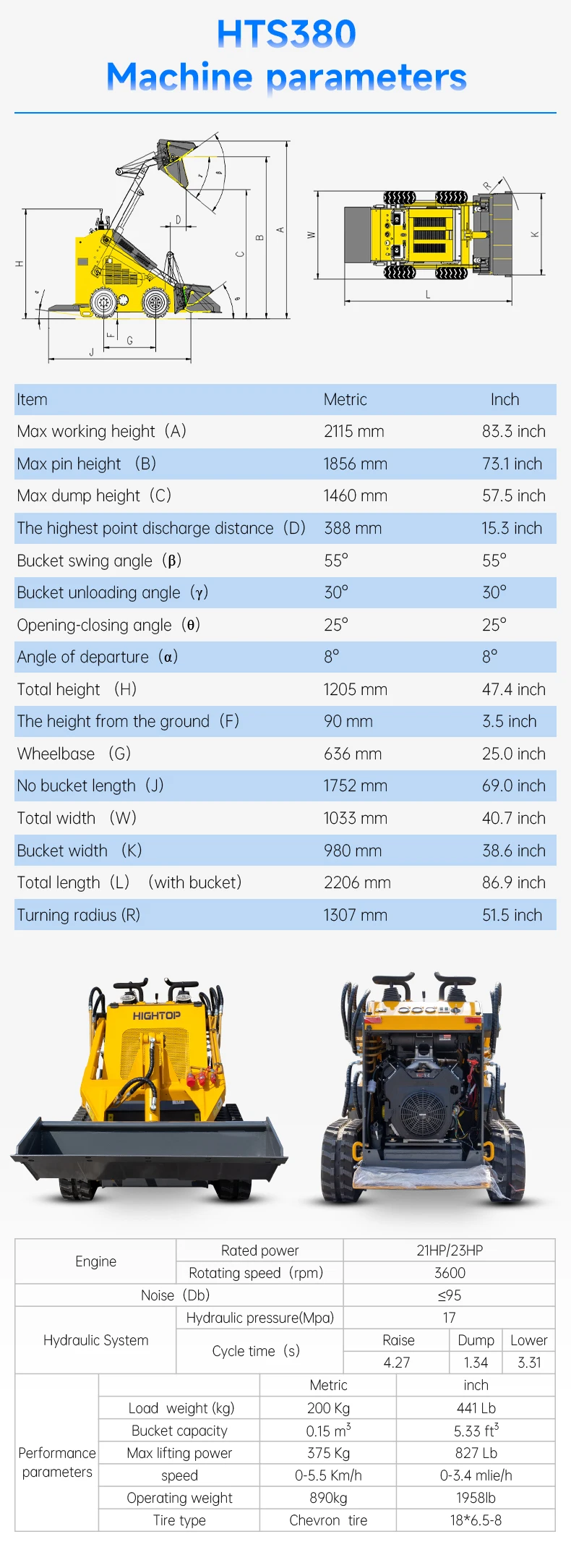

Item	Metric	Inch
Max working height(A)	2115 mm	83.3 inch
Max pin height (B)	1856 mm	73.1 inch
Max dump height(C)	1460 mm	57.5 inch
The highest point discharge distance(D)	388 mm	15.3 inch
Bucket swing angle(β)	55°	55°
Bucket unloading angle(γ)	30°	30°
Opening-closing angle(θ)	25°	25°
Angle of departure(α)	8°	8°
Total height (H)	1205 mm	47.4 inch
The height from the ground(F)	90 mm	3.5 inch
Wheelbase (G)	636 mm	25.0 inch
No bucket length(J)	1752 mm	69.0 inch
Total width (W)	1033 mm	40.7 inch
Bucket width (K)	980 mm	38.6 inch
Total length(L)(with bucket)	2206 mm	86.9 inch
Turning radius (R)	1307 mm	51.5 inch

Main performance parameters:

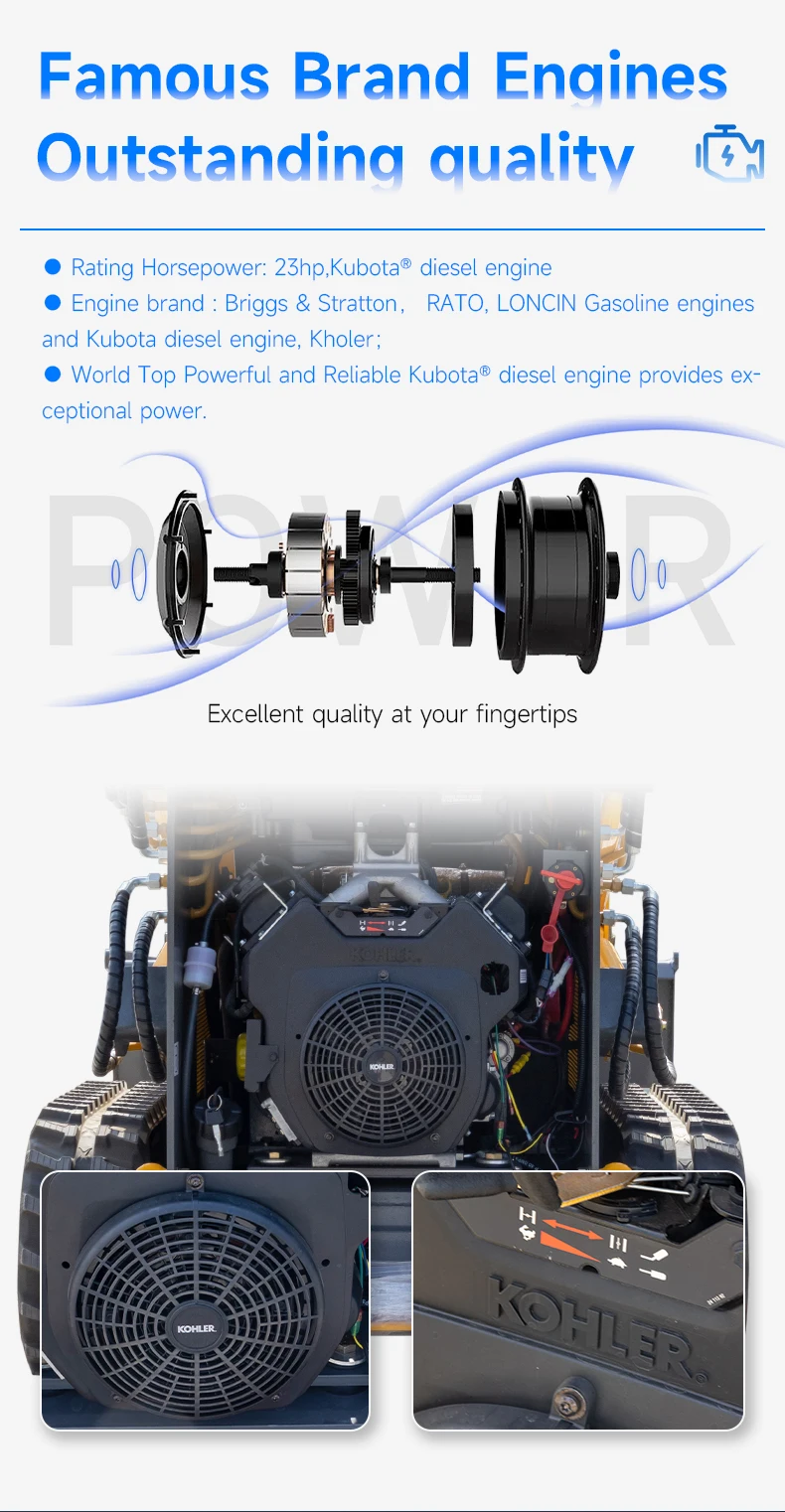

Engine		Rated power		23HP
		Rotating speed(rpm)		3600
Noise(Db)				≤95
Hydraulic System		Hydraulic pressure(Mpa)		17
		Cycle time(s)		Raise		Dump	Lower
				4.27		1.34	3.31
Performance parameters			Metric		inch
	Load weight (kg)		200 Kg		441 Lb
	Bucket capacity		0.15 m³		5.33 ft³
	Max lifting power		375 Kg		827 Lb
	speed		0-5.5 Km/h		0-3.4 mlie/h
	Operating weight		890kg		1958lb
Tire type		Chevron tire		18*6.5-8

Company Information

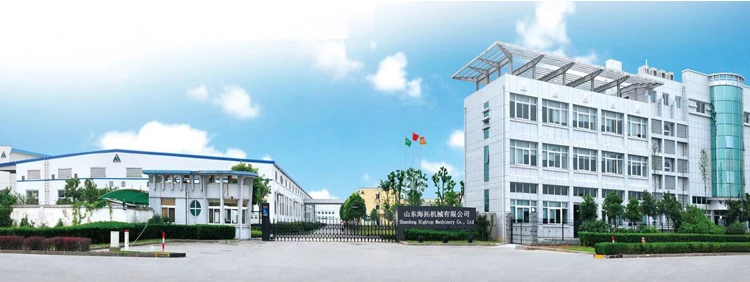

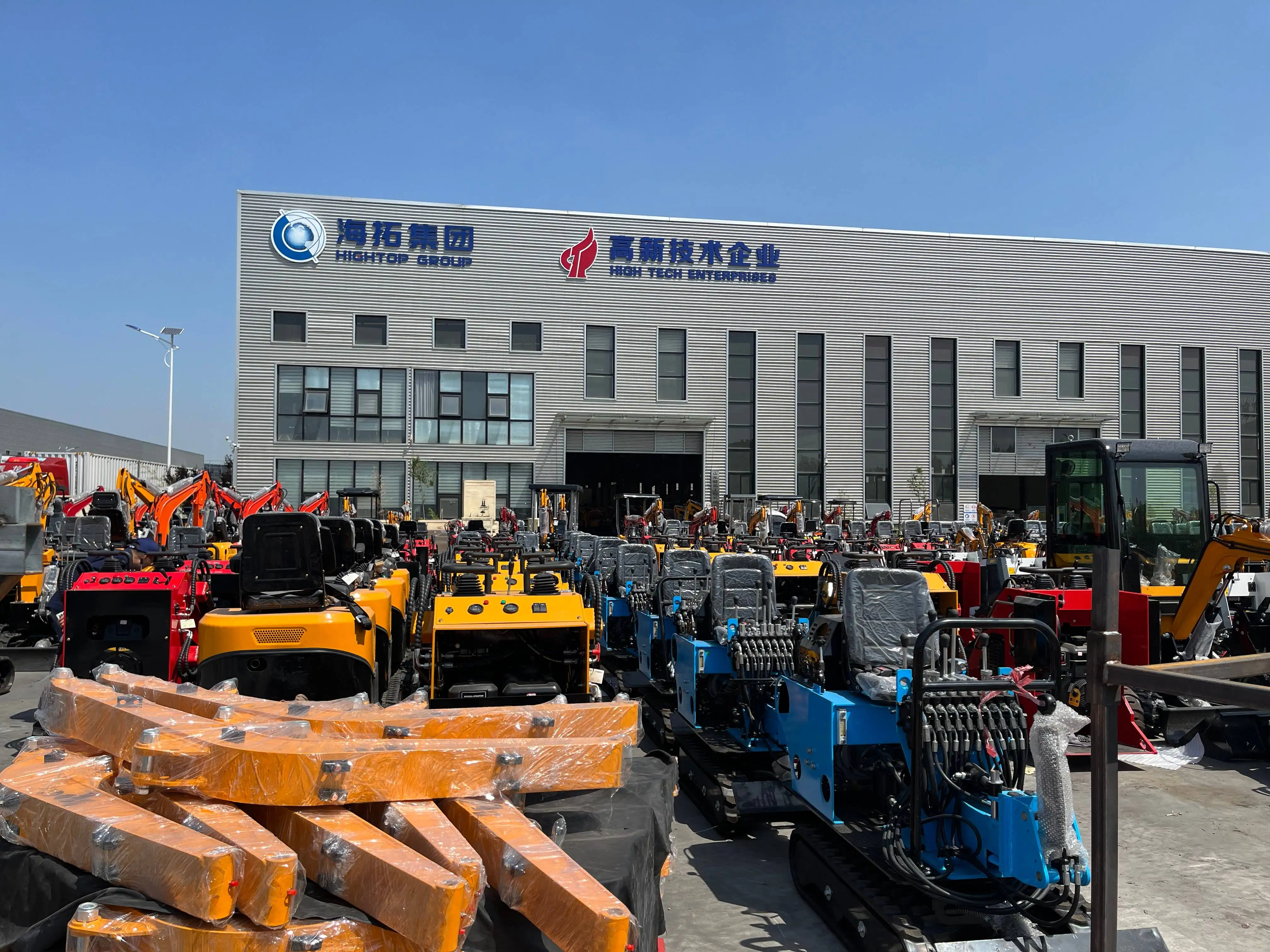

SHANDONG HIGHTOP MACHINERY Co., Ltd, established in 1980, is an important and a large construction engineering equipment joint-stock enterprise group. It has several wholly-owned subsidiaries, company headquarters is located at National High Tech Zone, Jining City, Shandong province.
